OBO 6216477 LG 110 VS FT Cable Ladder 600 mm 6 m

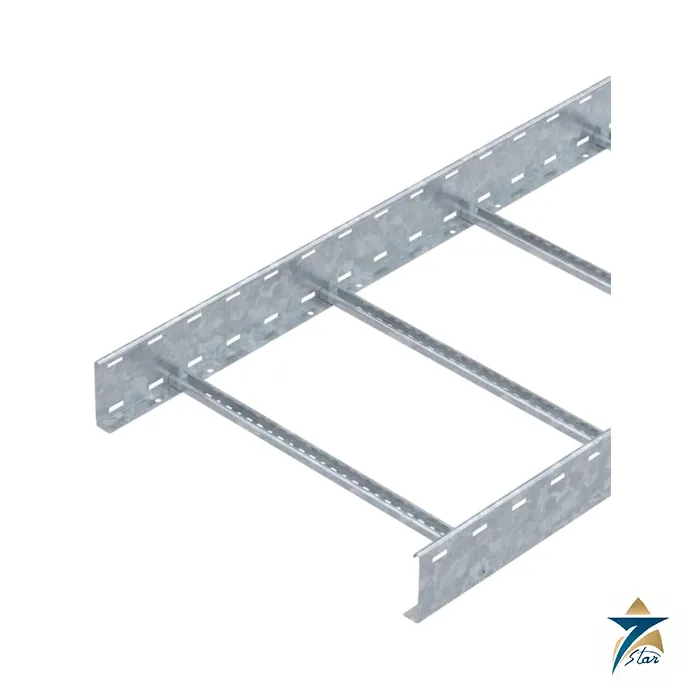

6216477 is the OBO Bettermann LG 110 VS cable ladder in the 6 m FT version, type LG 116 VS 6 FT: 110 mm side height, 600 mm width, 6,000 mm length, perforated 1.5 mm side rails, blind-riveted C-profile rungs every 300 mm, hot-dip galvanised to DIN EN ISO 1461.

A 6 m ladder for long spans and big cable loads

Cable ladders leave the base open, so cables can be tied down at every rung and heat is carried away freely. The LG 110 design uses a perforated flat-profile side rail with riveted C-profile rungs, open upwards, and OBO ships the ladder folded up to save transport volume. Because each length is 6 m, there are fewer joints than on 3 m trays.

The datasheet gives a usable cross-section of 568 cm2 (56,800 mm2) and a weight of 500.2 kg per 100 m, about 5.0 kg per metre (derived). Support spacings of 2 to 6 m are permitted, with a permitted load from 3.1 kN/m at 2 m down to 0.15 kN/m at 6 m.

Key features as printed in the datasheet

• 110 x 600 x 6000 mm ladder; rail thickness 1.5 mm; rung distance 300 mm.
• Hot-dip galvanised steel, DIN EN ISO 1461.
• Profile-perforated rungs (VS), blind riveted; side rail flat profile with side perforation.
• Supplied folded up; OBO refers to the type 2056 clamp clip for vertical ladder runs.
• Magnetic shield insulation 10 dB without cover, 15 dB with cover.
• Permitted support spacing 2 – 6 m.

Technical specification

Master data and dimensions

Technical data

Load capacity (permitted load, without man load)

Selection and ordering guide

Use this ladder for main cable routes with large multi-core cables where you want open access and long lengths. The “6 m” and “VS FT” in the type define length, rung form and finish; other LG 110 widths and finishes have separate item numbers.

For a closed base choose a tray (SKSU, EKS); for spans over 6 m or very heavy loads look at the WKLG/WKSG wide-span systems (6098566 on this site is a wide-span tray).

Installation and operation notes

Unfold the ladder on site, hang it from brackets or struts spaced within the table, and join with the OBO connector system for LG 110. Tie cables to the rungs at regular intervals.

The 6 m length needs careful handling and crane or lift planning on site; confirm site access and vehicle length before ordering.

Derived figures: a 6 m length weighs about 30 kg (500.2 kg per 100 m x 6 m) and uses rungs spaced 300 mm apart (datasheet value); the weight is a calculation from the datasheet figure. At 2 m support spacing the permitted 3.1 kN/m is equivalent to roughly 316 kg per metre (general conversion), so a 6 m ladder spanned at 2 m carries a very heavy bundle.

Applications in Oman and the GCC

Main cable routes in process plants, power stations, substations, refineries and large buildings. The open construction is also widely used outdoors on pipe racks, where hot-dip galvanised steel is typical in coastal environments.

Where cables run in high ambient temperature, the open ladder helps heat dissipation, but cable derating still needs to be calculated by the designer.

Installation and selection notes

The LG 110 ladder is supplied folded to save transport volume and is opened on site. Fit it on brackets at the spacing given by the load table, which runs from 3.1 kN/m at 2 m to 0.15 kN/m at 6 m, and tie the cables to the rungs at the intervals the cable manufacturer recommends. At roughly 5.0 kg per metre a 6 m length is heavy, so lift it with two people or a lifting aid. Connectors and accessories are ordered separately.

Information needed for a quotation

Send the code, the quantity, the delivery location in Oman or the GCC and any accessories such as connectors, covers, bends or fixings, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, dimensions and loads are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Compatible accessories and related items

Related OBO items on this site: trays 6047638, 6064353, 6056326, mesh 6002417 and wide-span 6098566; glands and surge arresters for the termination points.

Frequently asked questions

What are the dimensions of 6216477?

110 mm high, 600 mm wide, 6,000 mm long, with 300 mm rung distance.

What is the rail thickness?

1.5 mm.

How much load can it carry at 3 m?

1.4 kN/m according to the datasheet table.

How is it delivered?

The datasheet states it is shipped folded up.

Does Seven Star LLC act as an OBO Bettermann distributor?

No. Seven Star LLC is an independent supplier in Muscat that sources OBO Bettermann products on request.

Documents and quotation

This page carries the official OBO Bettermann technical data sheet for 6216477. Seven Star LLC is an independent supplier in Muscat and sources OBO Bettermann products on request; tell us the quantity and delivery point to receive a quotation. Always confirm the order code and technical values in the document first. See more in the product category.
