Brand: Riello UPS
Riello UPS Sentinel Tower STW 10000 10 kVA Online UPS
Description

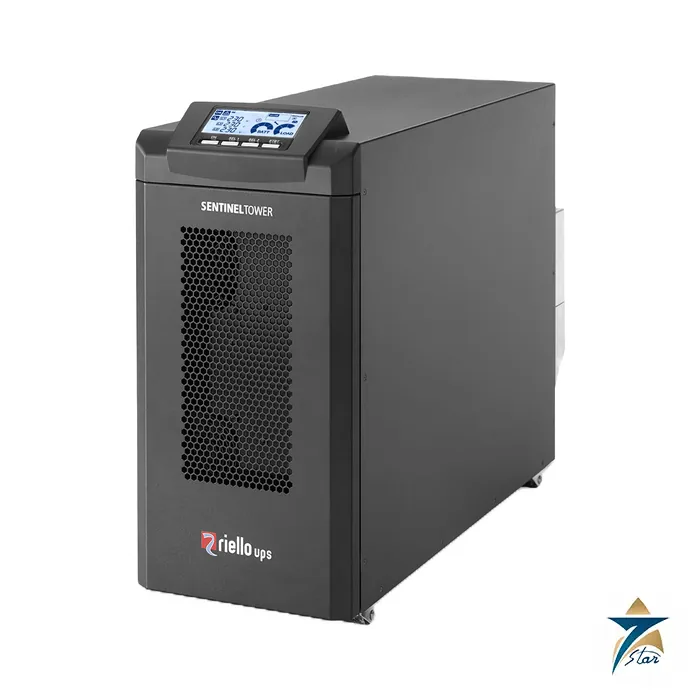

The Riello UPS Sentinel Tower STW 10000 is a 10 kVA / 10 kW ON LINE double-conversion UPS in a tower cabinet on castors. The series covers 5 and 6 kVA single-phase models and 8 and 10 kVA models that accept single-phase or three-phase input with a single-phase output. It is intended for safety systems, telecommunications and IT equipment that cannot accept a transfer interruption.
A 10 kW single-phase output in a compact tower with parallel capability
Sentinel Tower uses a three-level inverter to reach up to 95 percent efficiency in ON LINE mode and 98 percent in ECO mode, with an output power factor of 1 so that kVA equals kW. Up to three units can be paralleled for power or for (2+1) redundancy with an optional parallel card, and the parallel system keeps running even if the connecting cable is interrupted (closed loop). A manual bypass and a static bypass are built in.
Operating modes can be selected at the front panel or by software: ON LINE, ECO, SMART ACTIVE, STANDBY OFF and frequency converter at 50 or 60 Hz. The batteries do not cut in for mains failures shorter than 20 ms or when the input remains between 184 and 276 V. Noise is below 48 dBA at 1 m in ECO mode.
Technical specifications
| Parameter | Specification |
|---|---|
| Models | STW 5000, STW 6000, STW 6000 ER, STW 8000, STW 10000, STW 10000 ER |
| Output power (STW 10000) | 10000 VA / 10000 W |
| Input | STW 8000 and 10000: 380 / 400 / 415 V three-phase plus neutral or 220 / 230 / 240 V single-phase; tolerance 400 V plus or minus 20 percent; 50 / 60 Hz plus or minus 5 percent |
| Input power factor | Above 0.98; current distortion up to 5 percent (single-phase input) |
| Output | 220 / 230 / 240 V selectable, 50 or 60 Hz; distortion below 1 percent linear and below 3 percent non-linear load; crest factor 3:1 |
| Bypass overload | Below 110 percent continuous, 130 percent for 1 h, 150 percent for 10 min, above 150 percent for 3 s |
| Efficiency | Up to 95 percent ON LINE; 98 percent ECO mode |
| Battery | VRLA AGM maintenance-free; recharge time 4 to 6 h; ER versions have 6 A controlled chargers for external batteries |
| Parallel operation | Up to 3 units with optional parallel card |
| Dimensions (W x D x H) | 250 x 698 x 500 mm |
| Weight | 62 to 84 kg for standard models; 25 to 28 kg for ER models (6000 ER and 10000 ER) |
| Connections | Terminal board input and output plus 2 x C13 sockets; USB, RS232, communication slot, R.E.P.O. |
| Ambient | 0 to 40 degrees C; 5 to 95 percent humidity non-condensing; RAL 9005 |
| Standards | LV 2014/35/EU, EMC 2014/30/EU, IEC EN 62040-1, IEC EN 62040-2, RoHS; VFI-SS-111 per IEC 62040-3 |
Installation and selection notes
The 8 and 10 kVA models can be installed on a single-phase or a three-phase distribution network, which simplifies upgrades where only three-phase mains is available. Riello UPS lists an optional isolation transformer for the 5 and 6 kVA models, a manual bypass (MBB 100 A 2P), a parallel kit and battery cabinets in 180 V and 240 V versions. Confirm the real load in watts, the autonomy target, the cable and breaker sizing on the input terminal board and whether RielloConnect remote monitoring or a MULTICOM card is required.
A 5 kVA alternative from another brand is the APC SRT5KRMXLI Smart-UPS SRT 5000VA. The full list is in UPS and batteries.
Sentinel Tower models
| Model | Output | Input | Version |
|---|---|---|---|
| STW 5000 | 5000 VA / 5000 W | Single-phase input | Standard |
| STW 6000 | 6000 VA / 6000 W | Single-phase input | Standard |
| STW 6000 ER | 6000 VA / 6000 W | Single-phase input | Extended runtime |
| STW 8000 | 8000 VA / 8000 W | Single or three-phase input | Standard |
| STW 10000 | 10000 VA / 10000 W | Single or three-phase input | Standard |
| STW 10000 ER | 10000 VA / 10000 W | Single or three-phase input | Extended runtime |
Documents and quotation
The Riello UPS Sentinel Tower datasheet (DATSTWB1Y24EREN) is attached to this page. Seven Star LLC is an independent supplier in Muscat. Send the exact model code, the load in kW or VA, the input and output voltage and the autonomy needed, and we will quote against the manufacturer data.
Datasheets & Documents
- Datasheet Riello UPS Sentinel Tower datasheet (DATSTWB1Y24EREN, EN) Download
Reviews (0)
About brand
Riello UPS is the uninterruptible power supply brand of the Riello Elettronica Group, with design and production based in Legnago, near Verona, Italy. Its ON LINE and line-interactive UPS cover single-phase IT protection, three-phase industrial systems and modular critical-power installations. Seven Star LLC is an independent supplier in Muscat and lists Riello UPS models together with the manufacturer datasheets.
Riello UPS ranges for IT, industry and data centres
The Sentinel Pro2, Sentinel Dual2 and Sentinel Tower families protect servers, network equipment and small control rooms from 700 VA to 10 kVA. Sentryum, Master MPS and Master HP serve three-phase commercial and industrial loads, while NextEnergy and Multi Power2 modular systems address larger data-centre and critical-power installations. The manufacturer publishes technical data, option lists and dimensions for each range.
Ordering UPS equipment
Send the exact model code, the load in kW or VA, the input and output voltage, the autonomy required and the battery type. We check the request against the manufacturer datasheet before quoting.
Related products
Frequently Asked Questions
What is the output power of STW 10000?
10000 VA and 10000 W because the output power factor is 1.
Can Sentinel Tower units be paralleled?
Yes, up to three units for power or (2+1) redundancy using the optional parallel card; closed-loop operation continues if the cable is interrupted.
Does STW 10000 accept three-phase input?
The 8 and 10 kVA models can be installed on a single-phase or three-phase distribution network; the output is single-phase.
How efficient is it?
Up to 95 percent in ON LINE mode and 98 percent in ECO mode according to the datasheet.
What are the ER models?
Versions without internal batteries and with 6 A controlled battery chargers for longer runtime from external battery cabinets.
