Riello UPS Sentryum 10-120 kVA Online UPS

Name: Riello UPS Sentryum 10-120 kVA Online UPS – Datasheet & Quote
Brand: Riello UPS
SKU: Sentryum S3T

The Riello UPS Sentryum family (datasheet code S3T) is a transformer-free ON LINE double-conversion UPS from 10 to 120 kVA/kW at output power factor 1. Riello UPS describes it as a third-generation design with a DSP, dual-core microprocessors, three-level inverter circuits and a graphic touch screen. Efficiency is stated up to 96.6 percent in double conversion and up to 99 percent in SMART ACTIVE mode.

One family from 10 kVA single-phase output to 120 kVA three-phase

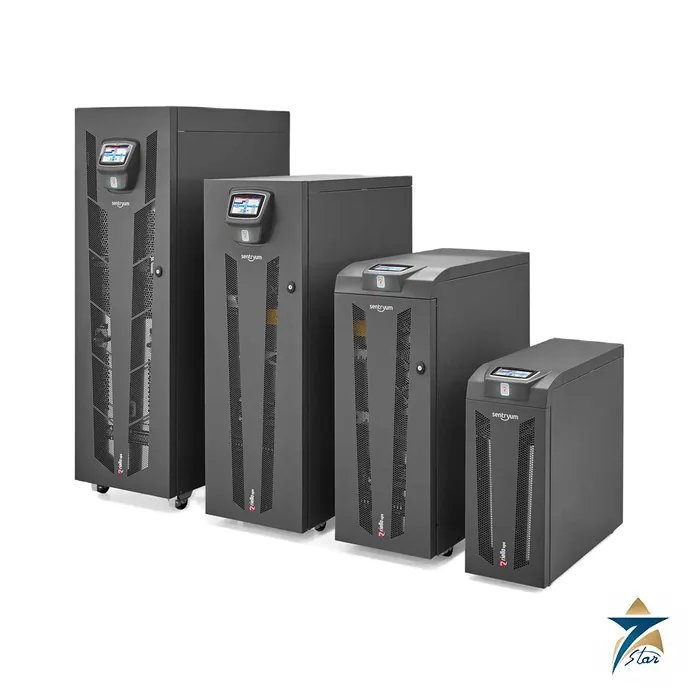

Three cabinet styles cover the lower range: Compact (CPT, 10 to 20 kVA), Active (ACT, 10 to 60 kVA) and Xtend (XTD, 10 to 60 kVA with space for batteries), while the S3T 80, 100 and 120 models are single cabinets for the upper range. The 10, 15 and 20 kVA models are offered with three-phase or single-phase input and single-phase output; every model from 10 to 120 kVA is available with three-phase input and output. Battery types listed are VRLA AGM, GEL, NiCd, lithium-ion and supercapacitors, with one-level, two-level or cyclic recharge selectable.

The input rectifier gives a power factor of 0.99 and current distortion THDI of up to 3 percent, which lowers the impact on generators and upstream cabling. The UPS can be moved on castors or with a pallet jack.

Technical specifications

Parameter	Specification
Power range	10, 15, 20, 30, 40, 60, 80, 100, 120 kVA = kW at power factor 1 up to 40 degrees C
Input	380 / 400 / 415 V three-phase plus N (or 220 / 230 / 240 V single-phase on 10 to 20 kVA single-phase models); 400 V plus or minus 20 percent at full load; 40 to 72 Hz
Input power factor / THDI	0.99 at full load / up to 3 percent
Output	380 / 400 / 415 V three-phase plus N selectable (or single-phase 220 / 230 / 240 V); 50 or 60 Hz; voltage stability plus or minus 1 percent
Output distortion	Below 1 percent with resistive linear load; up to 1.5 percent with non-linear load
Bypass overload	110 percent continuous, 125 percent for 60 min, 150 percent for 10 min
Efficiency	Up to 96.6 percent ON LINE; up to 99 percent SMART ACTIVE
Dimensions (W x D x H)	Compact 280 x 840 x 700 mm; Active 380 x 850 x 1025 mm; Xtend 440 x 840 x 1320 mm; S3T 80 to 120 500 x 830 x 1600 mm
Weight without batteries	CPT, ACT, XTD 10 to 20 kVA: 48 to 107 kg depending on version; ACT/XTD 30 to 60 kVA 78 to 130 kg; S3T 80, 100, 120: 172, 180, 198 kg
Communications	LED status bar, graphic touch screen, 2 communication slots, USB, RS232, 5 opto-insulated inputs and 4 output relays
Noise at 1 m	Below 40 dBA on the 10 to 20 kVA models; higher values for larger ratings, see the datasheet
Protection and ambient	IP20; 0 to 40 degrees C; 5 to 95 percent humidity non-condensing; RAL 7016
Standards	LV 2014/35/EU, EMC 2014/30/EU, IEC EN 62040-1, IEC EN 62040-2, RoHS; VFI-SS-111 per IEC EN 62040-3

Choosing the right Sentryum cabinet

Pick the cabinet by power and by where the batteries will sit. Compact suits the smallest loads, Active leaves room for external battery banks, and Xtend carries batteries inside the cabinet for longer autonomy in the same footprint. Some models are also available with internal batteries, and the ACT 60 is supplied without them. Before ordering, state the three-phase or single-phase input and output, the battery chemistry, the runtime, parallel needs and the cable entry, and check whether the 80 to 120 kVA models are needed in parallel.

A smaller single-phase alternative already listed is the Vertiv Liebert GXT5 UPS 1500-10000VA; see also UPS and batteries.

Sentryum power ratings

Rating	Cabinet	Input and output
10, 15, 20 kVA	Compact, Active, Xtend	Three-phase or single-phase input; single-phase or three-phase output
30, 40, 60 kVA	Active, Xtend	Three-phase input and output
80, 100, 120 kVA	S3T single cabinet	Three-phase input and output

Documents and quotation

The Riello UPS Sentryum datasheet (DATS3TD2T23BREN) is attached to this page. Seven Star LLC is an independent supplier in Muscat. Send the exact model code, the load in kW or VA, the input and output voltage and the autonomy needed, and we will quote against the manufacturer data.

Riello UPS ranges for IT, industry and data centres

The Sentinel Pro2, Sentinel Dual2 and Sentinel Tower families protect servers, network equipment and small control rooms from 700 VA to 10 kVA. Sentryum, Master MPS and Master HP serve three-phase commercial and industrial loads, while NextEnergy and Multi Power2 modular systems address larger data-centre and critical-power installations. The manufacturer publishes technical data, option lists and dimensions for each range.
