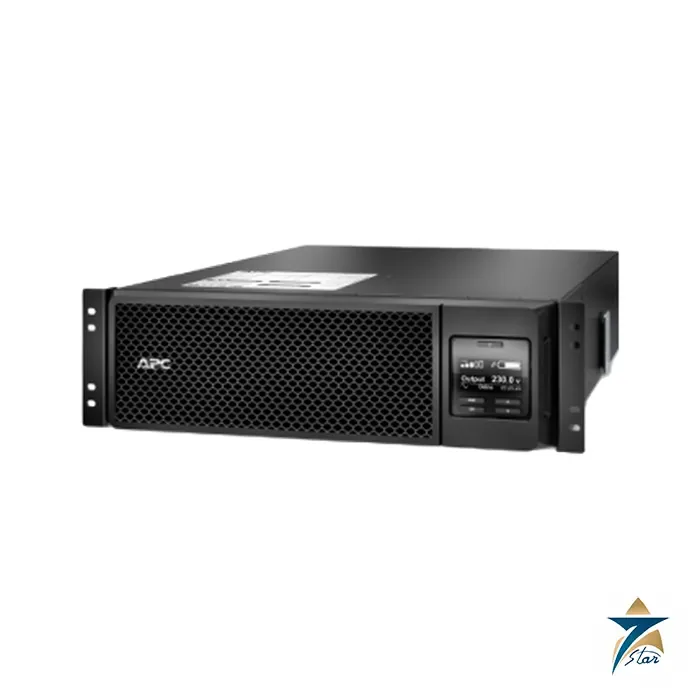

APC SRT5KRMXLI Smart-UPS SRT 5000VA RM 230V Online UPS

Overview

The APC SRT5KRMXLI is a Smart-UPS SRT series high-density, double-conversion online rack-mount UPS rated at 5000VA / 4500W, delivering data-center-grade power protection to server racks, network cores, and industrial control rooms that need genuine online protection at real capacity. Seven Star LLC supplies the APC SRT5KRMXLI across Oman and the GCC as a trusted supplier of APC by Schneider Electric products, providing genuine stock, technical pre-sales guidance, and after-sales support in Muscat, Sohar, Salalah, and neighboring markets. Facility engineers select the APC SRT5KRMXLI whenever a rack-mounted 5kVA load needs true online double-conversion protection with a compact 3U footprint that does not consume excessive rack space in a crowded server room.

The Smart-UPS SRT platform that the APC SRT5KRMXLI belongs to was engineered by Schneider Electric to bring genuine online double-conversion topology, high power density, and a full graphical LCD interface to mid-sized data center and enterprise deployments. This combination of capacity and compact rack footprint is a significant reason the APC SRT5KRMXLI is widely specified wherever rack space is at a premium but online-grade protection is still required.

Measurement and Working Principle

The APC SRT5KRMXLI continuously rectifies incoming AC to DC and reinverts it to a regulated AC sine wave, so the connected load is always powered from the inverter stage rather than switched onto backup power only after an outage is detected. This double-conversion design gives the APC SRT5KRMXLI zero transfer time and complete isolation from input voltage sags, surges, and frequency instability, conditions frequently encountered on generator-backed and rural GCC utility feeds. Internal automatic and manual bypass circuitry keeps power flowing to the load even during service events, and the unit’s graphical LCD display with multicolor backlight reports load percentage, battery status, and alarm conditions clearly even from across a server room aisle.

Engineering Design of the APC SRT5KRMXLI

Housed in a 3U rack chassis measuring 130mm H x 432mm W x 719mm D and weighing approximately 54.43kg, the APC SRT5KRMXLI accepts 230V single-phase input across a wide 100-275V adjustable range and delivers a regulated 230V output (also configurable to 220V or 240V) rated at 4500 watts / 5000 VA. Output is distributed across six IEC C13 receptacles, four IEC C19 receptacles, and two IEC jumper cables, and independent switched outlet groups allow selective load shedding during extended outages. The APC SRT5KRMXLI communicates through serial, USB, and Ethernet ports plus a SmartSlot accessory bay, supporting Modbus, SNMP, HTTP, and Telnet protocols through its embedded network management card. Its 192V lead-acid battery system recharges in approximately 1.5 hours and the design supports up to ten external SRT192RMBP battery packs, letting facilities scale runtime well beyond the standard internal battery without replacing the UPS itself.

Key Features

• The APC SRT5KRMXLI provides true online double-conversion protection with zero transfer time for a 5kVA rack-mounted load.
• The APC SRT5KRMXLI fits a compact 3U rack footprint while still delivering 4500W / 5000VA of genuine online capacity.
• The APC SRT5KRMXLI supports up to ten external battery packs for facilities requiring significantly extended runtime.
• The APC SRT5KRMXLI communicates via serial, USB, Ethernet, and SmartSlot, supporting SNMP and Modbus integration.
• This Smart-UPS SRT unit includes independent switched outlet groups for selective load shedding during long outages.

Industrial Applications

The APC SRT5KRMXLI is commonly deployed to protect enterprise server racks, core network switches, and SAN storage arrays in mid-to-large data centers and IT rooms across Oman’s commercial and industrial sectors. In industrial settings, the APC SRT5KRMXLI is frequently specified to back up centralized SCADA servers, historian databases, and DCS network infrastructure where true online double-conversion protection and Modbus/SNMP integration into an existing monitoring platform are both required. Because the APC SRT5KRMXLI delivers a genuinely compact 3U rack profile, it also suits colocation and shared data-hall environments across the GCC where rack space is billed by the unit and every rack unit saved has a direct cost benefit.

System integrators across Muscat and the wider GCC also specify the APC SRT5KRMXLI for telecom central offices and mission-critical control rooms, where its independent switched outlet groups let operators shed non-essential loads automatically during an extended utility outage while keeping core equipment powered for as long as possible.

Because the APC SRT5KRMXLI scales its runtime through external battery packs rather than requiring a full UPS replacement, it is also a practical long-term platform for facilities across Oman that expect their server room or control room capacity to grow gradually over several years rather than in one large step. Seven Star LLC works with project consultants during the tender stage to confirm the correct rack-mount UPS capacity, redundancy strategy, and battery runtime for a given data hall, so the equipment specified on paper matches what the facility actually needs once installed and commissioned on site.

Technical Specifications

Request a Quote for APC SRT5KRMXLI Smart-UPS SRT 5000VA RM 230V Online UPS

Seven Star LLC is a trusted supplier of APC by Schneider Electric products supplying the APC SRT5KRMXLI with genuine local stock, technical pre-sales support, and installation guidance across Oman, the UAE, Saudi Arabia, and the wider GCC. Contact Seven Star LLC today for a fast quotation and expert advice on sizing the APC SRT5KRMXLI to your data center, network core, or control room power protection requirements.
