Riello UPS Sentinel Dual2 SD2 3000 Rack UPS

Name: Riello UPS Sentinel Dual2 SD2 3000 Rack UPS – Datasheet & Quote
Brand: Riello UPS
SKU: SD2 3000

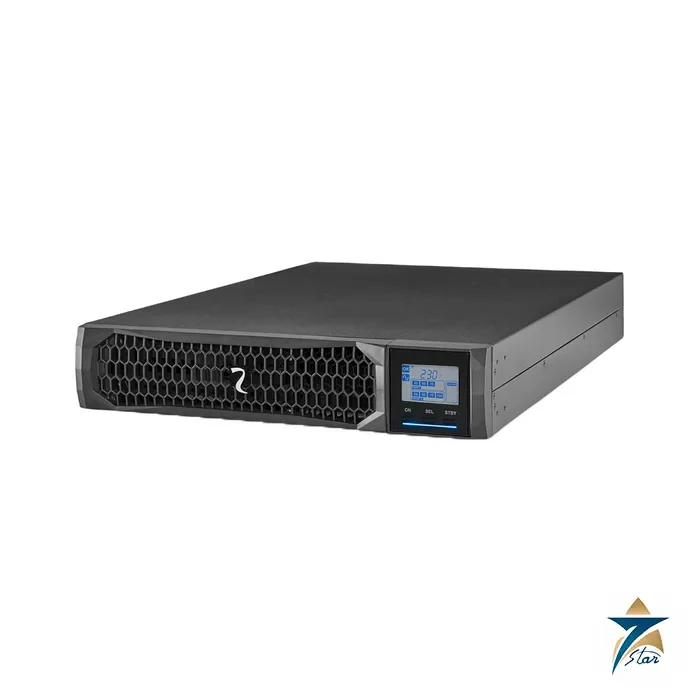

The Riello UPS Sentinel Dual2 SD2 3000 is a 3 kVA ON LINE double-conversion UPS that fits a 19 inch rack in 2U or stands as a tower. The same chassis serves both layouts: the display is pulled out and rotated, the UPS is turned 90 degrees and either the supplied handles or the optional rack runners are fitted. It is aimed at servers, storage, VoIP and network systems, medical equipment and light industrial controls.

Rack or tower from one model, with user-replaceable batteries

Batteries in Sentinel Dual2 are user replaceable without switching off the equipment and without interrupting the load (hot swap). Configuration can be done from a Bluetooth mobile app (UPStoolsBT) or from a PC with the UPS Tools software supplied as standard. Output voltage can be selected by software at 220, 230 or 240 V, and the unit restarts automatically after a mains failure when programmed to do so.

The datasheet lists power factor 1, a high short-circuit current on bypass, 150 percent overload capability from the inverter even during a mains failure, backfeed protection as standard and an emergency function with soft start. Fan noise stays under 40 dBA at 1 m in ECO mode, so it can sit in an office or a network room.

Technical specifications

Parameter	Specification
Model family	SD2 1000, SD2 1500, SD2 2200, SD2 2200 ER, SD2 3000, SD2 3000 ER
Output power (SD2 3000)	3000 VA / 3000 W, power factor 1
Technology	ON LINE double conversion, VFI-SS-111 per IEC 62040-3
Input	220 / 230 / 240 V at 50 / 60 Hz; the batteries stay idle between 140 and 276 V up to half load, and between 184 and 276 V at full load
Output	Sinusoidal, distortion below 2 percent linear and up to 3.5 percent non-linear load; crest factor 3:1
Overload	150 percent for 1 s; below 150 percent for 4 s
Efficiency	93.7 percent maximum in ON LINE mode; ECO and SMART ACTIVE modes reach 98 percent
Battery	Hot-swappable VRLA AGM; 2 to 4 h recharge on standard models; ER versions ship without internal cells
Dimensions	Tower 87 x 625 x 450 mm for 3 kVA models; rack 19 inch x 625 x 2U (shorter 425 mm versions for smaller models)
Weight	12.5 to 27.2 kg depending on model
Communications	USB, RJ45 with RS232 and contacts, communication slot, Bluetooth app configuration
Connections	C20 input plug; eight C13 sockets plus one C19 socket on the 3 kVA models; EnergyShare outputs
Ambient	Operating 0 to 40 degrees C; humidity 5 to 95 percent without condensation; colour RAL 9005
Standards	Low Voltage and EMC directives, IEC EN 62040-1 and -2, RoHS

Selecting a Sentinel Dual2 model

Choose by load in watts and by the runtime required. Standard models hold internal batteries; ER models trade the batteries for a stronger charger and are meant to be paired with matching battery cabinets (BTC SD2 36 V and 72 V series listed in the datasheet). Check rack depth against the cabinet before ordering, because the 3 kVA unit is 625 mm deep. Accessories in the datasheet cover communication cards (MULTICOM, NETMAN 208), relay and I/O boards, manual bypass units for tower and rack use, and universal rails.

For a different 1.5 kVA rack alternative already on the site, see the APC SMX1500RMI2U Smart-UPS X 1500VA, or browse UPS and batteries.

Sentinel Dual2 models

Model	Output	Note
SD2 1000	1 kVA class	Internal hot-swap batteries
SD2 1500	1.5 kVA class	Internal hot-swap batteries
SD2 2200	2.2 kVA class	Internal hot-swap batteries
SD2 2200 ER	2.2 kVA class	External battery cabinets
SD2 3000	3 kVA class	Internal hot-swap batteries
SD2 3000 ER	3 kVA class	External battery cabinets

Documents and quotation

The Riello UPS Sentinel Dual2 datasheet (DATSD2A1Y26AREN) is attached to this page. Seven Star LLC is an independent supplier in Muscat. Send the exact model code, the load in kW or VA, the input and output voltage and the autonomy needed, and we will quote against the manufacturer data.

Riello UPS ranges for IT, industry and data centres

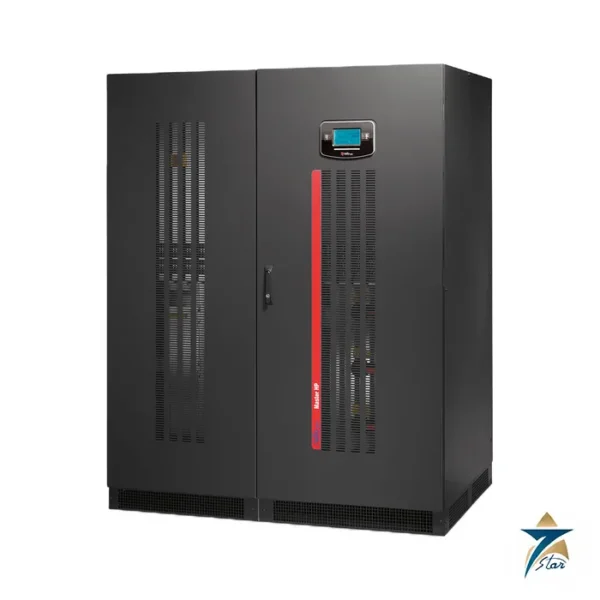

The Sentinel Pro2, Sentinel Dual2 and Sentinel Tower families protect servers, network equipment and small control rooms from 700 VA to 10 kVA. Sentryum, Master MPS and Master HP serve three-phase commercial and industrial loads, while NextEnergy and Multi Power2 modular systems address larger data-centre and critical-power installations. The manufacturer publishes technical data, option lists and dimensions for each range.
