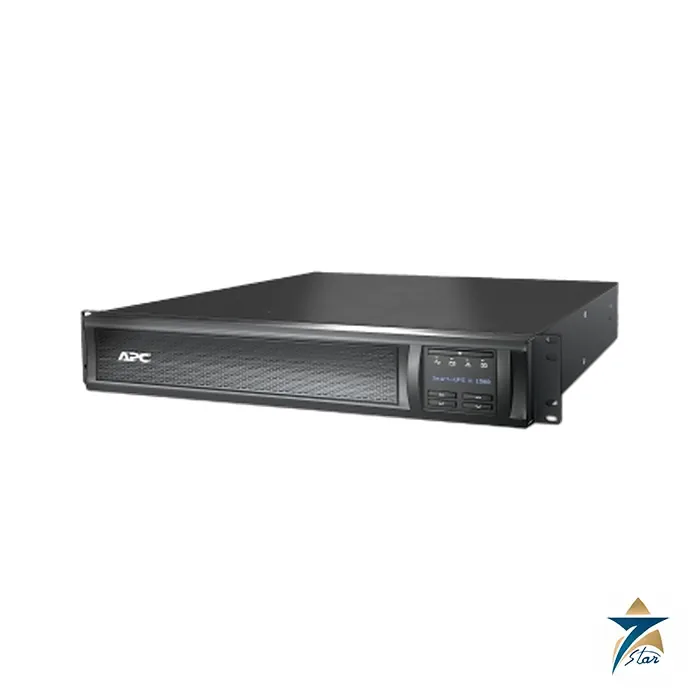

APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower Convertible UPS

Overview

The APC SMX1500RMI2U is a Smart-UPS X series line-interactive UPS rated at 1500VA / 1200W, built in a 2U rack/tower convertible chassis that lets IT teams deploy the same unit inside a server rack or standing on the floor of a network closet. Seven Star LLC supplies the APC SMX1500RMI2U across Oman and the GCC as a trusted supplier of APC by Schneider Electric products, providing genuine stock, technical pre-sales guidance, and after-sales support in Muscat, Sohar, Salalah, and neighboring markets. Data center technicians and facility engineers select the APC SMX1500RMI2U whenever a mid-capacity load needs pure sine-wave, AVR-corrected protection in a compact form factor that can adapt to whatever rack space happens to be available on a given project.

The Smart-UPS X platform that the APC SMX1500RMI2U belongs to was engineered by Schneider Electric to give integrators a single hardware design that installs equally well in a 19-inch rack or as a standalone tower, removing the need to stock two separate physical variants of the same electrical protection class. This flexibility is one of the main reasons the APC SMX1500RMI2U remains popular with system integrators who cannot always predict, at quotation stage, whether the final installation will be rack-based or floor-standing.

Measurement and Working Principle

The APC SMX1500RMI2U uses line-interactive topology with Automatic Voltage Regulation, correcting under-voltage and over-voltage conditions through internal boost and buck transformer taps rather than switching to battery for every minor fluctuation. This approach on the APC SMX1500RMI2U preserves battery life while still delivering a clean, pure sine-wave output to the connected load whenever incoming utility power drifts outside the acceptable band. During an actual outage, the APC SMX1500RMI2U transfers to its internal battery quickly enough to keep servers and network gear running without interruption, and its LCD status console reports load percentage, input/output voltage, and remaining runtime in real time so operators always know the unit’s current condition.

Engineering Design of the APC SMX1500RMI2U

Housed in a 2U chassis measuring 89mm H x 432mm W x 490mm D and weighing approximately 31.9kg, the APC SMX1500RMI2U accepts a wide 151-302 VAC input range at 50/60Hz auto-sensing frequency and delivers a regulated 230V output rated at 1200 watts / 1500 VA through eight IEC 320-C13 outlets. The APC SMX1500RMI2U includes a 20A circuit breaker and provides 645 joules of surge suppression, giving connected equipment robust protection against transient spikes in addition to its AVR-based voltage correction. A SmartSlot expansion bay accepts optional network management cards, and serial plus USB ports support PowerChute software integration for automated, graceful shutdown of protected servers. The unit’s lead-acid battery recharges in approximately 3 hours and the design supports up to five external battery packs for facilities that need extended runtime beyond the standard internal battery.

Key Features

• The APC SMX1500RMI2U converts between rack-mount and tower configuration using the same included hardware, reducing stocking complexity.
• The APC SMX1500RMI2U delivers a pure sine-wave output with 645 joules of surge protection for sensitive electronics.
• The APC SMX1500RMI2U accepts a wide 151-302 VAC input range, tolerating unstable utility feeds common across the GCC.
• The APC SMX1500RMI2U supports up to five external battery packs for facilities requiring extended runtime.
• This Smart-UPS X unit includes a SmartSlot bay for optional SNMP network management card integration.

Industrial Applications

The APC SMX1500RMI2U is commonly deployed to protect server racks, network switches, and storage arrays in data centers and IT rooms across Oman’s commercial and light industrial sectors. In industrial settings, the APC SMX1500RMI2U is frequently specified to back up PLC control racks, HMI stations, and SCADA gateway nodes where a rack-mount form factor is preferred but the flexibility to convert to a tower unit for a different project remains valuable to a systems integrator’s inventory strategy. Because the APC SMX1500RMI2U delivers pure sine-wave output rather than a stepped approximation, it is also well suited to protecting variable-frequency drives, industrial PCs, and other switch-mode-supply equipment that can be sensitive to non-sinusoidal backup power.

System integrators across Muscat and the wider GCC also specify the APC SMX1500RMI2U for telecom equipment rooms and CCTV head-end racks, where the ability to add external battery packs later lets a facility scale its runtime requirements without replacing the UPS itself as the installation grows.

Because the APC SMX1500RMI2U sits in the Smart-UPS X family between smaller desktop-format units and the larger online Smart-UPS SRT range, it is also a common choice for facilities that want genuine rack-convertible flexibility without committing to a full double-conversion online topology for a moderately sized IT or control load. Seven Star LLC’s technical team can advise on whether a rack or tower configuration best suits a given site during the quotation stage, and on whether the standard internal battery or an extended-runtime configuration is the better fit for the load being protected, so the unit selected on paper matches what actually gets installed on site.

Technical Specifications

Request a Quote for APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower Convertible UPS

Seven Star LLC is a trusted supplier of APC by Schneider Electric products supplying the APC SMX1500RMI2U on request, with technical pre-sales support and installation guidance across Oman, the UAE, Saudi Arabia, and the wider GCC. Contact Seven Star LLC today for a fast quotation and expert advice on sizing the APC SMX1500RMI2U to your rack-mount or tower server and network protection requirements.
