HOPPECKE grid | power V H 2-1010 OSP.XC Cell 2 V 1015 Ah

grid | power V H 2-1010 is a 2 V vented lead-acid cell of the HOPPECKE grid | power V H OSP.XC series, DIN designation 10 OSP.XC 950. The brochure type table lists 1015 Ah at C10 to 1.80 V per cell, 70.6 kg and a maximum size of 215 x 193 x 710 mm.

An OSP.XC cell with high-current capability for substation and UPS batteries

In the V H series HOPPECKE pairs a very good high-current capability, from an innovative electrode structure, with a very high expected service life from a low-antimony selenium alloy. The OSP.XC cells use a heavier electrolyte of 1.27 kg per litre, which is visible in the brochure weights, and a slightly higher float voltage than the other vented series.

The V H brochure carries two lines: OSP.XC cells from 2-130 to 2-4260 and the OGi bloc monoblocs from 6-20 to 4-260. The 2-1010 belongs to the first line and is drawn as Figure B.

What the brochure states for OSP.XC cells

• Strong high-current performance: HOPPECKE credits the innovative electrode structure, which keeps the purchase cost down.
• Low-antimony selenium alloy for a long expected life, quoted as 18 years of design life for OSP.XC.
• HOPPECKE system connectors raise short-circuit safety during installation.
• AquaGen plug option stretches the water refill interval, in the best case to maintenance-free.

Technical specification

Data for grid | power V H 2-1010 (brochure type table)

Derived values (calculated here)

Reading the V H table

OSP.XC cells run from 2-130 (3 OSP.XC 120, 132 Ah, 15.6 kg, 105 x 208 x 420 mm) to 2-4260 (36 OSP.XC 4140, 4177 Ah, 277.6 kg, 215 x 580 x 815 mm). In the V H table the type number tracks the C10 figure closely: 2-1010 against 1015 Ah.

The neighbours 2-910 to 2-1720 share the 710 mm height. Check C1 and C3 for breaker and UPS duty, and confirm the code, plug and connector hardware before ordering.

Charging and checks from the manual

Set the float charger to 2.25 V per cell for OSP.XC (the OGi bloc runs at 2.23 V). Fully charged V H cells show about 2.11 V open-circuit at 20 °C, which is a quick state check before commissioning. Charge current limits depend on the series and are listed in the manual table 7-1.

Keep the battery room between 10 °C and 30 °C where possible. Higher temperature shortens life and 55 °C is a hard limit; with AquaGen plugs the plug temperature must stay at or above 5 °C. Measure insulation resistance with a 500 V or 1000 V tester.

Substations, UPS and power supply systems

The brochure names power supply systems, uninterruptible power supply and substations for the OSP.XC line. General engineering note: in Gulf grid substations the DC battery supports protection relays, trip coils and emergency lighting, so a high C1 value and an annual capacity test matter more than the nominal C10.

Related HOPPECKE items

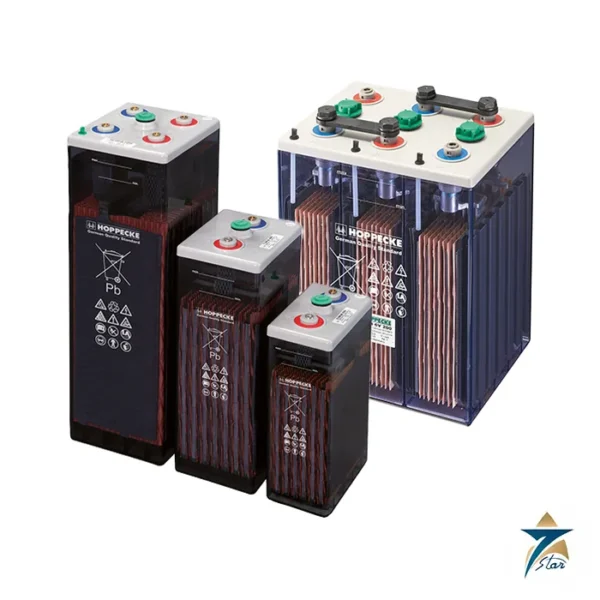

The OGi bloc 6 V monobloc from the same brochure has its own page, and the V M page covers the OSP.HC line with 1.24 kg per litre electrolyte.

Frequently asked questions

What does 10 OSP.XC 950 mean?

The DIN designation: ten positive plates, OSP.XC and a DIN class of 950 Ah, while the brochure C10 value is 1015 Ah.

What float voltage does OSP.XC need?

The manual gives 2.25 volts per cell, plus or minus 1 percent, for grid | power V H OSP.XC.

How long is the design life?

The V H brochure lists up to 18 years for OSP.XC and 15 years for OGi bloc.

What is the electrolyte density?

The brochure weight column uses 1.27 kilograms per litre for OSP.XC cells.

Is Seven Star LLC a HOPPECKE distributor?

No. Seven Star LLC is an independent supplier in Muscat that sources HOPPECKE products on request.
