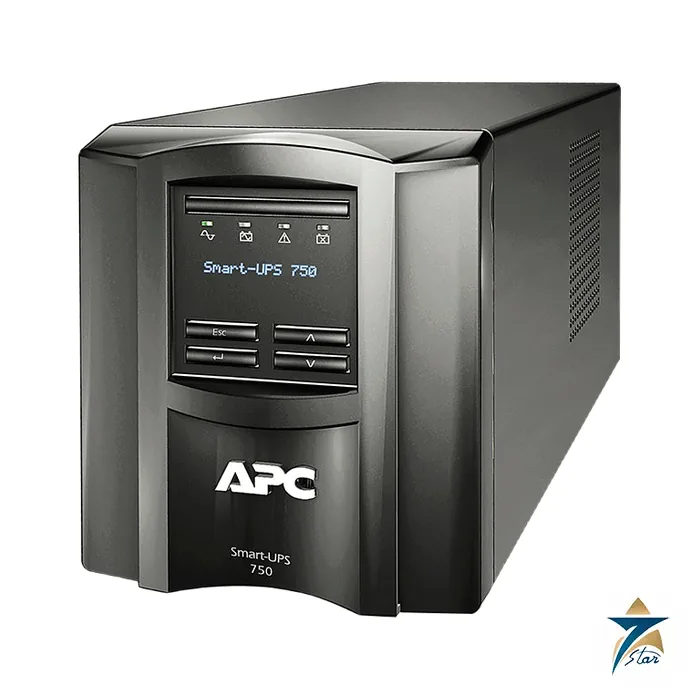

APC SMT750I Smart-UPS 750VA/500W Line-Interactive UPS

Overview

The APC SMT750I is a Smart-UPS line-interactive tower unit rated at 750VA / 500W, built to protect servers, network equipment and instrumentation from voltage disturbances and power outages with intelligent, predictable battery management.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation. IT and facility engineers specify the SMT750I whenever a compact UPS is needed that goes beyond basic surge protection to deliver true Smart-UPS intelligence: predictive runtime calculation, automatic self-testing and remote management readiness.

As the entry point into APC’s long-established Smart-UPS family, the APC SMT750I carries forward the same SmartSlot architecture and PowerChute software compatibility used across the larger Smart-UPS range, making it straightforward for facilities that already standardize on Smart-UPS units elsewhere to extend the same management tools down to smaller loads. This consistency across the range means a technician trained on any Smart-UPS model can service this unit without additional retraining.

Measurement and Working Principle

The APC SMT750I uses line-interactive topology with Automatic Voltage Regulation: it continuously conditions incoming utility power through boost and trim correction, only transferring the load to battery when voltage falls outside the correctable range. This approach on the unit minimizes wear on the internal battery compared to a standby-only design while still delivering a clean sine-wave output during genuine outages. The unit’s microprocessor continuously calculates runtime based on real-time load and battery condition rather than relying on fixed lookup tables, giving operators of the APC SMT750I an accurate, dynamically updated estimate of remaining backup time on its LCD display.

Engineering Design of the unit

Built in a compact tower chassis measuring approximately 6.2″ H x 5.4″ W x 14.1″ D, the APC SMT750I accepts 230V input through an IEC 320-C14 inlet and delivers a regulated 230V output rated at 500 watts / 750 VA through six IEC 320-C13 outlets, all backed by battery and surge protection. The unit is fitted with a maintenance-free, sealed, spill-proof lead-acid battery, delivering roughly 5 minutes of runtime at full load and 16 minutes at half load, with a typical recharge time of about 3 hours. A backlit LCD interface on the APC SMT750I displays load percentage, battery status, and estimated runtime, while an integrated SmartSlot accepts optional network management cards for SNMP-based remote monitoring. Both USB and RS-232 serial ports are included as standard, and automatic self-diagnostic testing on the unit periodically verifies battery health without operator intervention, flagging a weak or aging battery well before it would fail during an actual outage.

Key Features

• The APC SMT750I calculates runtime dynamically based on real load and battery condition rather than fixed estimates.
• The unit provides line-interactive AVR correction, extending battery life by avoiding unnecessary transfers.
• The APC SMT750I includes an integrated SmartSlot for optional SNMP network management card installation.
• The APC SMT750I performs automatic self-diagnostic testing to verify battery health without manual checks.
• This Smart-UPS model offers both USB and RS-232 connectivity for flexible integration with monitoring software.

Industrial Applications

The APC SMT750I is commonly deployed to protect small servers, network switches, VoIP telephony equipment, and instrumentation controllers in offices, control rooms, and light industrial facilities across Oman. Because the APC SMT750I offers Smart-UPS-grade intelligence in a compact footprint, it is frequently specified where a single critical device or small equipment cluster needs predictable, monitored backup power without the cost of a larger rack-mount system, and where floor or shelf space for the UPS itself is limited. System integrators across the GCC also select this Smart-UPS model for branch-office IT closets, security and access-control head-end equipment, and remote monitoring stations, where accurate runtime reporting through PowerChute software allows administrators to schedule safe, orderly shutdowns during extended outages rather than abrupt loss of power once the battery is depleted.

In Oman’s oil and gas and utilities sectors, the APC SMT750I is also used to protect instrumentation racks and local data-logging PCs at unmanned or lightly staffed sites, where the unit’s self-testing and remote SNMP monitoring capability let central operations teams confirm UPS health without a site visit.

Consultants specifying UPS protection for small telecom rooms and building management panels across Muscat also favor the APC SMT750I because its dynamic runtime calculation gives facility staff an honest, real-time picture of remaining autonomy rather than a rough static estimate, which matters when an outage runs longer than the standard 5-to-10-minute grace period assumed for many small loads, giving on-site staff enough warning to save work and shut down equipment gracefully.

Technical Specifications

Request a Quote for APC SMT750I Smart-UPS 750VA/500W Line-Interactive UPS

Seven Star LLC is a trusted supplier of APC by Schneider Electric products supplying the APC SMT750I on request, with technical pre-sales support and installation guidance across Oman, the UAE, Saudi Arabia, and the wider GCC. Contact Seven Star LLC today for a fast quotation, availability confirmation, and expert advice on sizing the APC SMT750I to your server, network, or control-room power protection needs.

Browse the full APC range or see more UPS and Batteries products supplied by Seven Star LLC in Oman and the GCC.

APC SMT750I key ratings from the manufacturer data

The table below lists the main values that Schneider Electric publishes for the APC SMT750I. Use it to check the model against your load, rack or room before you request a quotation.

Battery replacement and runtime for the APC SMT750I

The SMT750I takes APC RBC48 replacement battery cartridge. Keeping one cartridge in stock shortens the downtime when the UPS self-test reports a weak battery. Schneider Electric gives an expected battery life of 3 to 5 years for this model, and a typical recharge time of 3 hours after a discharge. Temperature has the largest effect on that figure: as a rule of thumb, the life of a sealed lead-acid battery roughly halves for every 10 °C above 25 °C. In Oman, a UPS in an air-conditioned room held at 20 to 25 °C will need far fewer battery replacements than one in a hot plant room or a site cabin. This model does not take external battery packs, so when a longer runtime is needed the usual step is a larger model or a UPS from a range with extended-runtime support.

Looking after several APC units? Our APC UPS replacement battery finder lists the official cartridge and quantity for more than 340 APC models.

Ordering the APC SMT750I for sites in Oman

To quote the SMT750I quickly and correctly, please include:

• The connected load in watts and VA, with some margin below the 750 VA / 500 W rating
• The runtime you need at that load, so the battery configuration can be checked
• Input and output connections and the number of outlets required at the site
• Monitoring needs: USB, a network management card or integration with a BMS or SCADA system
• Where the UPS will be installed and the room temperature (the manufacturer operating range is 0 to 40 °C)
• Whether a spare replacement battery cartridge should be supplied with the unit

Send these details with the Request for Quotation button on this page. Seven Star LLC supplies APC by Schneider Electric equipment as an independent supplier and delivers across Oman, with shipment to other GCC countries on request.

More APC SMT models in our catalogue: APC SMT750C, APC SMT750IC, APC SMT750INCITE, APC SMT750RMI2U, APC SMT750RMI2UC and APC SMT750RMI2UNC.
