Brand: Pizzato
Pizzato FR 1007 Position Switch, Adjustable Roller
Description
Technopolymer limit switch with an adjustable one-way roller lever
The FR 1007 is a Pizzato Elettrica position switch from the FR series, built in a glass-fibre reinforced technopolymer housing with a single threaded conduit entry and a hinged cover held by one captive screw. The head is an adjustable roller lever that operates in one direction only, so the switch trips as a cam or moving part passes the roller one way and is not disturbed on the return stroke. The contact block is code 10, two normally open contacts with slow action.
Because the actuator can be adjusted, the lever length and roller position can be set on the machine to suit the stroke instead of ordering a different head. Pizzato offers 17 contact blocks and 48 actuators in the FR series, so the same housing also exists with plungers, rods, rope heads and safety levers.
Technical specifications
| Parameter | Specification |
|---|---|
| Order code | FR 1007: FR series, contact block 10, actuator 07 (adjustable one-way roller) |
| Housing | Glass-fibre reinforced technopolymer, self-extinguishing, shock-proof, double insulation; one threaded conduit entry M20x1.5 as standard |
| Contact block | 2NO slow action (code 10) |
| Protection degree | IP67 per EN 60529 and IP69K per ISO 20653 (with cable gland of equal or higher protection) |
| Ambient temperature | -25 degrees C to +80 degrees C standard; -40 degrees C to +80 degrees C with T6 option |
| Actuation frequency / endurance | 3600 operating cycles per hour maximum / 20 million operating cycles |
| Thermal current / insulation | Ith 10 A; Ui 500 V AC, 600 V DC; Uimp 6 kV |
| Utilization categories | AC-15: 6 A at 250 V, 4 A at 400 V, 1 A at 500 V; DC-13: 3 A at 24 V, 0.55 A at 125 V, 0.3 A at 250 V |
| Short-circuit protection | Type aM fuse 10 A 500 V |
| Safety parameter | B10D 40,000,000 for NC contacts; mechanical interlock, not coded, type 1 per EN ISO 14119 |
| Standards printed | IEC / EN 60947-5-1, EN 50047, IEC / EN 60204-1, EN ISO 14119, EN ISO 12100, UL 508, CSA C22.2 No. 14 |
| Approvals printed | IMQ EG610; UL E131787; CCC; EAC |
| Mounting position | Any |
Reading the order code
Pizzato builds a full code from the article, then the options: a code such as FR 502-W3XGM2K70R23T6 adds a reset device (W3), gold-plated contacts, a threaded entry (M2 for M20x1.5, M1 for M16x1.5, PG 13.5, PG 11 or 1/2 NPT), pre-installed cable glands or an M12 connector, an ambient temperature option and a roller material. The catalogue cautions that the feasibility of a code does not mean the product is effectively available, so confirm with the supplier.
For FR 1007 the first two digits after the series letters select the contact block and the last two the actuator, the standard form shown on the product page: housing, 2NO contact block, adjustable one-way roller head.
Using it on a machine
Two normally open contacts make the FR 1007 a signalling and position-detection switch, for example confirming that a slide, cylinder or carriage has reached an end position. Where a switch is used in a safety circuit, the catalogue states that only switches marked with the positive-opening symbol beside the product code may be used and that the safety circuit must be connected to the NC contacts, so a 2NO block is not a safety contact arrangement.
Please confirm contact arrangement, entry thread and cable gland before ordering, and keep the cam profile within the actuation travel the catalogue prints.
Documents and quotation
Quote requests are handled from this page: attach your tag list or the full code, and note the contact block, conduit entry and temperature option. The attached PDF (Pizzato General Catalogue Detection 2025-2026, FR series position switches, pages 55-66 (manufacturer, unaltered)) is the reference for every value above, and it should be checked again for the final configuration. See also Automation Accessories.
Datasheets & Documents
- Catalogue Pizzato General Catalogue Detection 2025-2026, FR series position switches, pages 55-66 (manufacturer, unaltered) Download
Reviews (0)
About brand
Pizzato Elettrica is an Italian maker of position switches and safety devices, founded in 1984 and based in Marostica.
Seven Star LLC is an independent supplier in Muscat. We list Pizzato switches for machine builders and maintenance teams in Oman and the GCC.
Pizzato product series

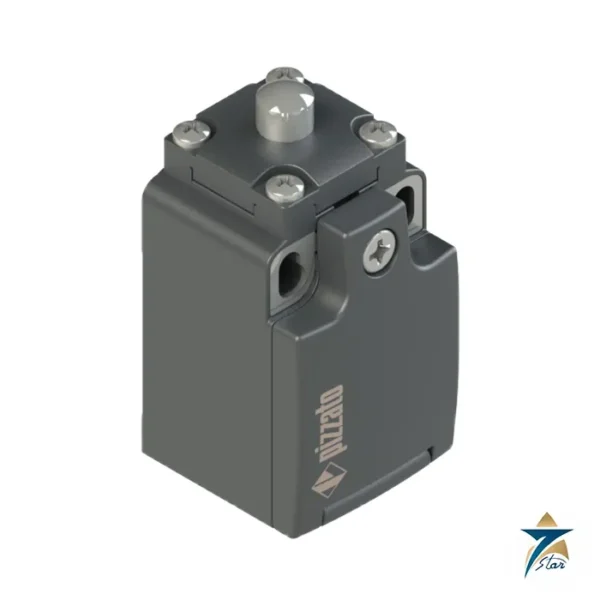

Position switches include the FD 1001 metal switch with plunger, the FK 301 switch with plunger and snap action contacts, and the FR 1007 switch with adjustable roller lever.
Switches are chosen by the housing (metal or technopolymer), actuator, contact block and electrical connection. Snap action contacts switch quickly regardless of actuator speed, and positive opening contacts are used in safety circuits.
Plunger actuators suit short, straight movements against a cam or stop, while adjustable roller levers let the operating point be set on site and suit cams and moving parts that pass the switch. Metal housings stand up to heavy duty and impacts, and each data sheet states the IP rating, mechanical life and operating temperature range.
Where Pizzato switches are used
End of travel detection on machines, conveyors, doors and guards, cranes and lifting equipment.
Ordering Pizzato switches: what we need
Send the full article code, or the actuator type, contacts, housing and cable entry.
Browse Pizzato products by category: Automation Accessories.
Related products
Frequently Asked Questions
What contacts does the FR 1007 have?
Two normally open contacts with slow action, which is contact block code 10.
What protection does it offer?
IP67 per EN 60529 and IP69K per ISO 20653, provided the cable gland has equal or higher protection.
What is the mechanical endurance?
20 million operating cycles, at up to 3600 cycles per hour.
Which approvals does the catalogue chapter print?
IMQ EG610, UL E131787, CCC and EAC, together with CE conformity to the Low Voltage, EMC and RoHS directives.
Can this switch be used as a safety switch?
The 2NO contact block does not provide NC safety contacts; the catalogue says safety circuits must use the NC contacts of positively opening versions.
