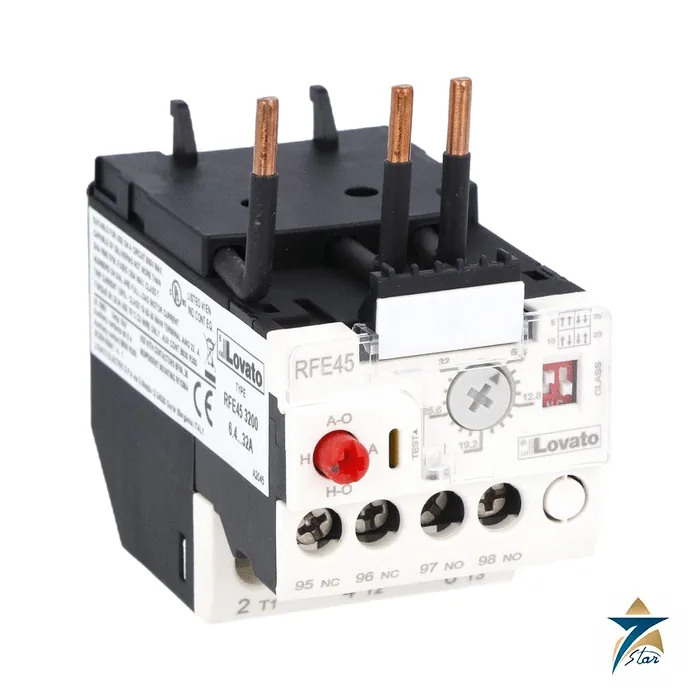

Lovato RFE450200 0.4-2 A Electronic Overload Relay

Name: Lovato RFE450200 Overload Relay | Seven Star LLC
Brand: Lovato Electric
SKU: RFE450200

Description

RFE45 relay that trips on overload and phase failure

The RFE450200 is a three-pole electronic thermal motor protection relay of the Lovato Electric RFE45 family with an adjustment range of 0.4-2 A. It watches the motor current in all three phases, trips on overload and on phase failure, and reports the state with a trip indicator and a test button.

Tripping class is selectable (5 – 10 – 20 – 30), the reset mode is manual or automatic, and the auxiliary contact block provides 1 NO and 1 NC for the control circuit. Insulation voltage is 1000 V.

Technical specifications

Parameter	Specification
Order code	RFE450200
Product type designation	RFE45
Product designation	Motor protection relay
Number of poles	3
Pollution degree	3
Frontal IP degree	IP20
Type of release	Electronic thermal
gG (IEC)	6 A
aM (IEC)	4 A
Functions and protections provided	Phase failure detection
Reset mode	Manual or automatic
Rated insulation voltage Ui IEC/EN	1000 V
Rated impulse withstand voltage Uimp	6 kV
Rated operational voltage	690 V
Operational frequency (min)	50 Hz
Operational frequency (max)	60 Hz
Operational current min	0.4 A
Operational current max	2 A
Tripping class	5 – 10 – 20 – 30
Test Button	Yes
Trip indicator	yes
Terminals type	screw and washer
Terminals screw	M4
Terminals width	12 mm
Terminals tool	Phillips 2
Auxiliary contacts, NO	1
Auxiliary contacts, NC	1
Auxiliary Rated insulation voltage Ui IEC/EN	690 V
Auxiliary Rated impulse withstand voltage Uimp	6 kV
Auxiliary Rated operational voltage	690 V
Auxiliary circuit type	screw and washer
Auxiliary circuit screw	M3,5
Auxiliary circuit width	7 mm
Auxiliary circuit tool	Phillips 2
Operating temperature (min)	-25 °C
Operating temperature (max)	70 °C
Storage temperature (min)	-55 °C
Storage temperature (max)	80 °C
Compensation temperature (min)	-25 °C
Compensation temperature (max)	70 °C
Max altitude	3000 m
Operating position, normal	Vertical plan
Operating position, allowable	±30°
Fixing	Direct mounting on BF09- BF38-
Weight	195 g

Setting and selection

Choose by current window first (0.4-2 A), then by trip class (selectable (5 – 10 – 20 – 30)) and reset mode, then check that the relay mounts to the contactor you plan to use.

Short-circuit protection is separate: the datasheet quotes 6 A gG and 4 A aM as maximum fuse sizes for this relay.

Using it in a starter

Fit the relay under the contactor, set the dial, and connect the 95-96 and 97-98 contacts to the control circuit as shown on the front label and in the datasheet.

The power terminals are of screw and washer type; the datasheet table lists the temperature range and the auxiliary contact ratings.

For panel design and commissioning, the practical figures to keep at hand are: terminals type screw and washer; terminals screw M4; terminals width 12 mm; terminals tool Phillips 2; auxiliary circuit type screw and washer; auxiliary circuit screw M3,5; auxiliary circuit width 7 mm; auxiliary circuit tool Phillips 2; operating temperature (min) -25 °C; operating temperature (max) 70 °C; storage temperature (min) -55 °C; storage temperature (max) 80 °C; max altitude 3000 m; operating position, normal Vertical plan. These come straight from the datasheet and are repeated here so that the key installation limits are visible without opening the PDF.

Documents and quotation

The figures above are those printed in the manufacturer’s datasheet for RFE450200, supplied here as an attached English PDF from the Lovato catalogue. Please confirm the motor full-load current, the matching contactor and whether a manual or automatic reset is wanted before you order, and note that the manufacturer may revise datasheet values. Related items are listed under contactors & overload relays. To request RFE450200, send the quantity and delivery location with the quotation form; Seven Star LLC is an independent supplier based in Muscat.

Datasheets & Documents

Datasheet Lovato Electric RFE450200 datasheet (EN, catalogue export) Download
