ComAp InteliGen 1000 Gen-Set Controller for Complex Applications
Description
Switchgear-level control for multi-set paralleling plants

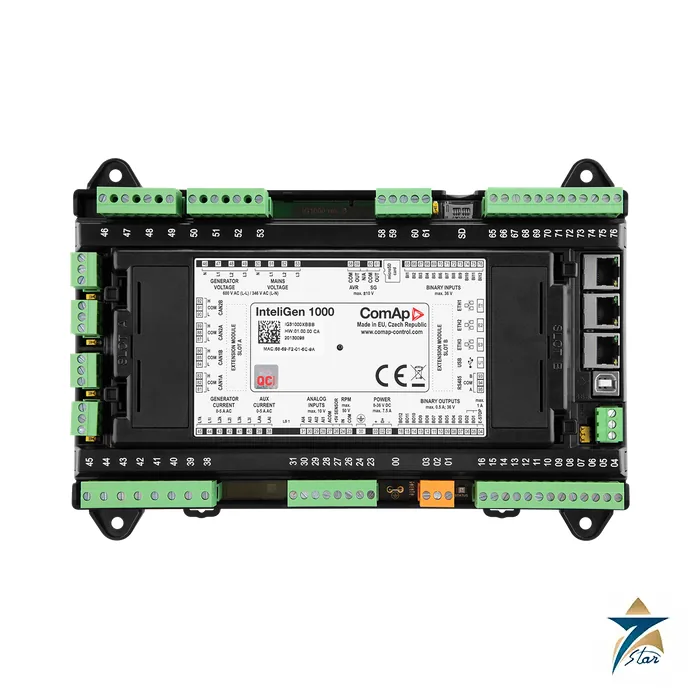

The ComAp InteliGen 1000 is described by ComAp as its most advanced gen-set controller for multiple gen-sets with paralleling operation, with or without a connection to the mains or another source. It is intended for complex applications and critical infrastructure such as data centres, hospitals and banks, and the datasheet lists no built-in display on the unit; operator interfaces are the InteliVision displays or a SCADA system.
Headline features in the datasheet are CAN FD communication for cooperation with up to 64 gen-set, mains and tie controllers, hot-swap controller redundancy and CAN bus redundancy (extended features), start-up synchronisation, a large PLC interpreter, a built-in CAN bus logger, and compliance with international grid codes including EN 50549, VDE-AR-N 4110 and 4105, G99, TOR and IEEE 1547.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | ComAp, InteliGen 1000 (datasheet version 4.1.0) |
| Order code | IG31000XBBB |
| Cooperation | Up to 64 gen-set, mains and tie controllers over CAN FD |
| Power supply | 8 to 36 V DC; 16 W; fuse 8 A; max heat dissipation 16 W |
| Voltage inputs | 3-phase generator and 3-phase mains; nominal 115 V L-N / 200 V L-L to 230 V L-N / 400 V L-L; 347 V L-N / 600 V L-L for UL/cUL; accuracy 0.25 % |
| Frequency | 33-67 Hz (0.002 %) and 267-520 Hz (0.01 %) |
| Current inputs | 3-phase generator and 1-phase mains (auxiliary) current; 1 A / 5 A range; overload 18 A for 15 s |
| Binary inputs / outputs | 12 inputs, 12 outputs at 0.5 A each |
| Analog inputs | 4, switchable: 0-10000 Ω, 0-10 V or 0-20 mA |
| Regulator outputs | AVR and speed governor, switchable: U ±10 V, I ±20 mA, PWM 0 V / 5 V |
| Communications | USB device, RS485, 3 Ethernet ports (10/100 Mbit), 4 CAN ports; Modbus client and server RTU/TCP, SNMP v1/v2c/v3, J1939 |
| Plug-in slots | 2: EM-BIO8-EFCP, CM-4G-GPS, CM-RS232-485, CM-EICC |
| Operating temperature | -40 to +70 °C; storage -40 to +80 °C |
| Protection | IP20 (enclosure) |
| Weight | 750 g controller / 920 g packaged |
Extended features and accessories
Extended features listed with order codes are Modbus Client (SKMODBCLI01), CAN2 bus redundancy (SKREDCAN201), Controller hot swap (SKHOTSWAP01), PLC Package 1 (SKPLCPCKG01), Bank controller for up to 63 source controllers (SKBANKCNTRL), Variable speed generator (SW1VSGXXXXX) and Emulation tool (SKEMTOOLXXX). Mounting bracket OT1MNT01AXX is the door-panel bracket for the InteliGen 1000 and the InteliVision 5.2 display.
Remote displays listed are InteliVision 5.2, 10Touch, 1050, 13Touch, 1550 and 18Touch G3. Extension modules include Inteli AIN8, AIN8TC, AIO9/1, IO8/8, IGS-PTM, I-AOUT8, IS-AIN8, IGL-RA15, ECON 4 digital speed governor, InteliGateway modules and the I-CR and I-CR-R modules.
What to confirm before ordering
Because the datasheet lists no built-in display, decide which InteliVision or SCADA front end will be used. Define the grid-code requirement and ask ComAp for the matching certificate set; the ComAp product page lists EN 50549 and VDE-AR-N documents separately. List the extended features needed, the number of controllers on the CAN FD bus, redundancy requirements and the engine ECU, AVR and governor interfaces. Quote the full order code.
Documents and quotation
The ComAp datasheet is attached. Send the order code, quantity and project details for a quotation. For more gen-set control products see Diesel Generator Spare Parts.
