HIWIN HGH-CA Heavy Load Linear Guideway Block and Rail
Description

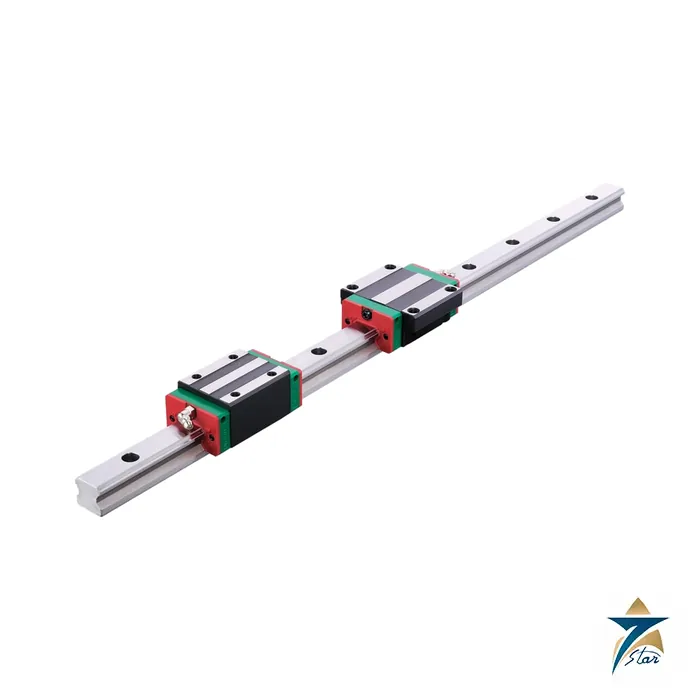

The HIWIN HGH-CA is the square, heavy load block of the HG series, HIWIN’s four-row ball linear guideway for machine tools and automation. The block runs on a matching HGR rail and carries equal loads in the radial, reverse radial and lateral directions, which is why HG guideways are a common choice for machining centres, grinders, gantry axes and transport equipment that need rigidity and a long service life.
A heavy load ball guideway built for rigidity
HIWIN designed the HG series with a circular-arc raceway so that the balls contact the groove at 45 degrees over a wide contact width. The catalog describes three results: self-aligning behaviour that absorbs installation error from surface irregularity, high rigidity in all four load directions, and a retainer that keeps the balls in the block when it is lifted off the rail. Interchangeable blocks and rails can be exchanged freely within a size.
The flange HGW versions have a lower assembled height and a wider mounting face and suit heavy moment loading, while HGL is a lower square block whose assembled height matches the flange type of the same size.
Technical specifications
| Parameter | Specification |
|---|---|
| Series | HG, heavy load ball type linear guideway |
| Block types | HGH square (-CA, -HA); HGL square low; HGW flange (-CA, -CB, -CC) |
| Model sizes | 15, 20, 25, 30, 35, 45, 55, 65 |
| Load types | C heavy load; H super heavy load (from size 20) |
| Basic dynamic load rating C | 14.7 kN (HGH15CA) to 277.8 kN (HGH65HA) |
| Basic static load rating C0 | 23.47 kN (HGH15CA) to 420.17 kN (HGH65HA) |
| Rolling elements | Steel balls, four rows, circular-arc groove with 45 degree contact |
| Accuracy classes | C normal, H high, P precision, SP super precision, UP ultra precision |
| Preload classes | Z0 (0 to 0.02C), ZA (0.05C to 0.07C), ZB (0.10C to 0.12C) |
| Rail mounting | R from top, T from bottom; rail pitch 60 to 150 mm by size |
| Maximum rail length | 4000 mm (stainless HGR15, 20, 25: 2000 mm) |
| Dust protection options | Standard end and bottom seals; ZZ, KK, DD; RC reinforced cap; SE metallic end cap; E2 self-lubricant |
| Material options | Carbon steel; stainless steel (M) for HG15C, HG20C, HG25C |
Size range and load ratings of the HGH block
The table lists the square HGH blocks from the manufacturer dimension tables. H is the assembled height, W the block width, L the block length, C and C0 the basic dynamic and static load ratings, and the last two columns the block mass and the rail mass per metre.
| Model | H mm | W mm | L mm | C kN | C0 kN | Block kg | Rail kg/m |
|---|---|---|---|---|---|---|---|
| HGH15CA | 28 | 34 | 61.4 | 14.7 | 23.47 | 0.18 | 1.45 |
| HGH20CA | 30 | 44 | 77.5 | 27.1 | 36.68 | 0.3 | 2.21 |
| HGH20HA | 30 | 44 | 92.2 | 32.7 | 47.96 | 0.39 | 2.21 |
| HGH25CA | 40 | 48 | 84 | 34.9 | 52.82 | 0.51 | 3.21 |
| HGH25HA | 40 | 48 | 104.6 | 42.2 | 69.07 | 0.69 | 3.21 |
| HGH30CA | 45 | 60 | 97.4 | 48.5 | 71.87 | 0.88 | 4.47 |
| HGH30HA | 45 | 60 | 120.4 | 58.6 | 93.99 | 1.16 | 4.47 |
| HGH35CA | 55 | 70 | 112.4 | 64.6 | 93.88 | 1.45 | 6.3 |
| HGH35HA | 55 | 70 | 138.2 | 77.9 | 122.77 | 1.92 | 6.3 |
| HGH45CA | 70 | 86 | 139.4 | 103.8 | 146.71 | 2.73 | 10.41 |
| HGH45HA | 70 | 86 | 171.2 | 125.3 | 191.85 | 3.61 | 10.41 |
| HGH55CA | 80 | 100 | 166.7 | 153.2 | 211.23 | 4.17 | 15.08 |
| HGH55HA | 80 | 100 | 204.8 | 184.9 | 276.23 | 5.49 | 15.08 |
| HGH65CA | 90 | 126 | 200.2 | 213.2 | 287.48 | 7.0 | 21.18 |
| HGH65HA | 90 | 126 | 259.6 | 277.8 | 420.17 | 9.82 | 21.18 |
Use the catalog extract for the HGL and HGW variants and the mounting-hole pattern.
Ordering code, preload and selection
A non-interchangeable HG model number reads in this order: series, block type, size, load type, block mounting, number of blocks per rail, rail mounting, rail length, accuracy, preload, number of rails per axis and dust protection. In the catalog example HGW25CAE2R1600EZAPMII+DD/E2+RC, ZA is the preload, P the accuracy, II a matched pair of rails and DD double seals with bottom seal.
HIWIN lists ZA preload for machining centres, EDM and measuring equipment, Z0 for transport devices and welding machines, and ZB where high rigidity under vibration and impact is needed; for sizes below HG20 the catalog recommends preload no larger than ZA. The catalog asks for the grease to be checked every 100 km or every 3 to 6 months.
Before you order, confirm the size, block type, preload, accuracy, rail length with the E values and the dust protection option. This page uses the load ratings of catalog G99TE24-2410; the HIWIN US website quotes a lower range for HG (11.38 to 208.36 kN), so confirm which rating basis your design calculation needs.
Documents and quotation
The linked PDF is the HG series chapter taken unchanged from the HIWIN Linear Guideway Catalog G99TE24-2410, with the model code, accuracy, preload, lubrication and dimension tables. See other items in our product range. Seven Star LLC is an independent supplier in Muscat; send the HG model number, rail length, quantity and the delivery location with your RFQ.
