HIWIN CRBE 05515 Crossed Roller Bearing with Mounting Holes
Description
The HIWIN CRBE 05515 is a high rigidity crossed roller bearing with mounting holes: a 55 mm bore, 120 mm outside diameter and 15 mm width, with an inner ring and a solid outer ring that both have holes for direct fixing. Both rings can rotate, and the mounting holes remove the need for separate clamping discs, which keeps the assembly compact.
A bearing that is bolted on directly
In the CRBE the inner and outer rings are both solid, so the bearing can rotate either ring, and each ring carries mounting holes. The A type has threaded holes in the inner ring and sink holes in the outer ring; the B type has sink holes in both rings in the same direction, and the C type has sink holes in the reverse direction. The rollers cross at 90 degrees and are separated by spacers, giving high rigidity and smooth rotation under combined radial, axial and moment loads.
HIWIN offers CRBE bearings with bores from 20 to 210 mm. The catalog lists robotics, machine tools, inspection equipment and medical devices as typical uses for the CRB family.
Technical specifications
| Parameter | Specification |
|---|---|
| Bearing number | CRBE 05515 (A, B or C hole type) |
| Type | CRBE, high rigidity with mounting holes, for inner or outer ring rotation |
| Bore diameter d | 55 mm |
| Outside diameter D | 120 mm |
| Width B, T | 15 mm |
| Basic dynamic load rating C | 21.7 kN |
| Basic static load rating C0 | 30.6 kN |
| Maximum chamfer | 0.6 mm |
| Oil holes | 2 holes, 3 mm diameter |
| Mounting holes | Inner ring: 8-M5 through on 65 mm PCD (A type); outer ring: 8 holes, 9.5 mm counter bore, on 105 mm PCD |
| Mounting dimensions | da 77 mm; Da 92 mm |
| Seal types | WW sealed or NN open; both have 2 oil holes |
| Axial clearance | C1 or C8 |
| Accuracy grades | P4, P2 |
| Lubrication | No. 2 lithium or calcium soap grease filled |
CRBE size range
The table lists all CRBE sizes from the catalog (A-type hole pattern). PCD1 is the pitch circle of the inner ring holes and PCD2 that of the outer ring holes. The basic load ratings are based on ISO 76 and ISO 281.
| Bearing No. | d mm | D mm | B mm | C kN | C0 kN | da mm | Da mm |
|---|---|---|---|---|---|---|---|
| CRBE 02012 | 20 | 70 | 12 | 8.26 | 9.16 | 35 | 47 |
| CRBE 03515 | 35 | 95 | 15 | 18.9 | 23.4 | 57 | 73 |
| CRBE 05515 | 55 | 120 | 15 | 21.7 | 30.6 | 77 | 92 |
| CRBE 08022 | 80 | 165 | 22 | 40.4 | 63.6 | 117 | 132 |
| CRBE 09025 | 90 | 210 | 25 | 46 | 80.2 | 139 | 157 |
| CRBE 11528 | 115 | 240 | 28 | 73.1 | 131.9 | 168 | 188 |
| CRBE 16035 | 160 | 295 | 35 | 102 | 192.3 | 218 | 238 |
| CRBE 21040 | 210 | 380 | 40 | 142 | 286.2 | 277 | 299 |
Designation, accuracy and installation

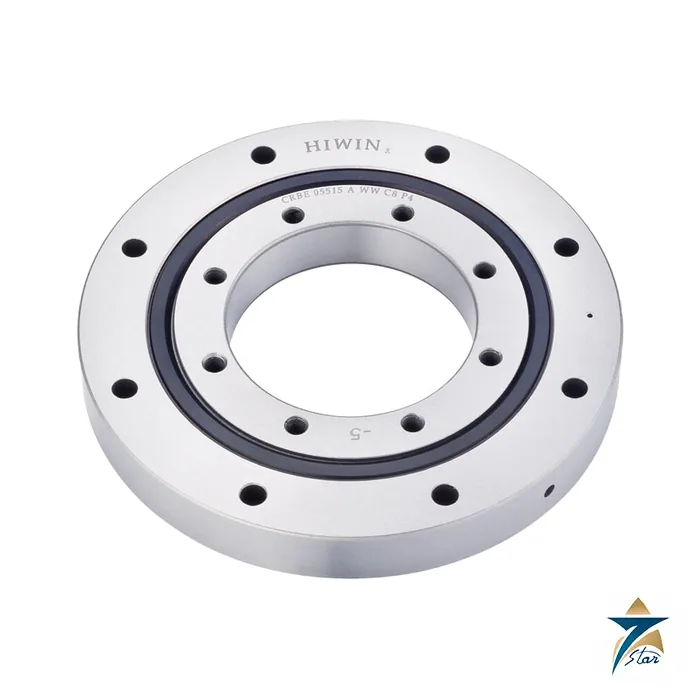

The catalog example CRBD 080 22 A WW C8 P5 shows the code: type, bore, width, hole code (A, B, C), seal, clearance and accuracy. For CRBE 05515 the sealed A type with C8 clearance and P4 accuracy would be CRBE 05515 A WW C8 P4, which is the label on the product photo. The inner ring runout limit for CRBE 05515 is 4 micrometres at P4 and 3 at P2; the outer ring limit is 6 and 5 micrometres.
The bearing needs a rigid housing and shaft, because the thin rings follow the shape of the mating parts. For C8 clearance the catalog suggests fits by which ring rotates, and bearing temperature during installation should stay below 80 degrees Celsius. Before ordering, confirm the hole type (A, B or C), seal, clearance, accuracy and the PCD of your mounting pattern.
Documents and quotation
The linked PDF is the HIWIN Crossed Roller Bearings technical catalog, unchanged. See also the product range. Seven Star LLC is an independent supplier in Muscat; send the bearing number with the hole type, quantity and delivery location with your RFQ.
