HIMA F7553 Coupling Module 984755302 for PES H51q

Overview

The HIMA F7553 coupling module, order number 98 4755302, is the original HIMA component from the assembly kit B 9302 that couples the central subrack of a PES H51q to its I/O subracks. It monitors the 5 V supply of the I/O subrack, reports status to the central module and gives the CPU access to the I/O modules behind it. This HIMA F7553 coupling module is supplied as a genuine tested spare part.

The HIMA F7553 coupling module is the standard interface element in H51q cabinets: without it the central module cannot address the I/O subrack, and the safety program cannot read its inputs or drive its outputs. Keeping a tested HIMA F7553 coupling module in stock protects the availability of the whole safety loop.

Engineering & Design

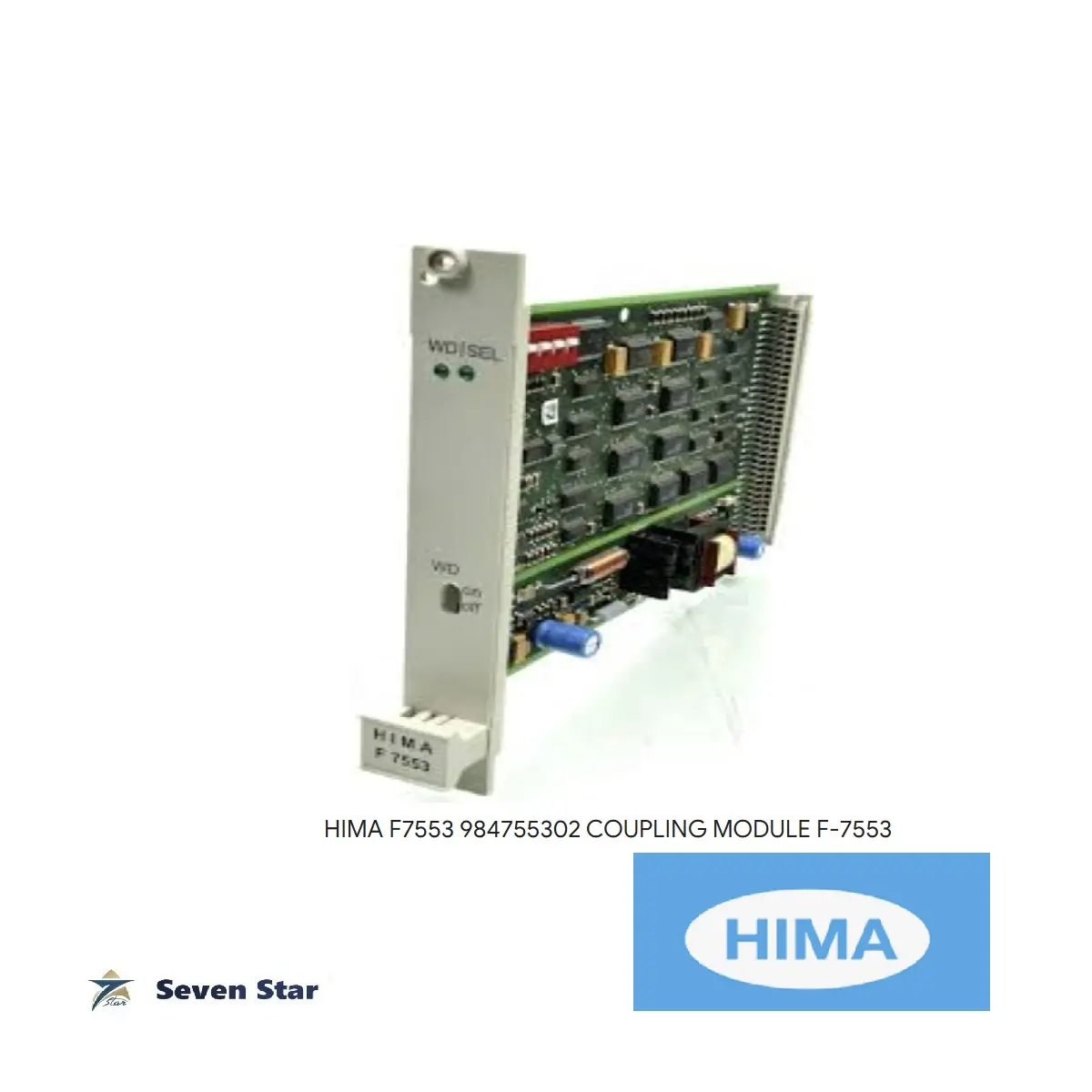

The F 7553 occupies 4 SU of subrack space and is fitted with a recessed watchdog switch on the front. The WD LED shows the safety-related watchdog signal, the SEL LED shows I/O-subrack access. When the WD switch is operated, the watchdog of the I/O subrack is switched off so that a module can be replaced without an error stop in -MS and -HS systems; if the switch is not operated the system performs a full error stop.

Four coding switches S1.1 to S1.4 set the cabinet number and the I/O bus/subrack number (I/O bus 1/Cabinet 1 or I/O bus 2/Cabinet 2). The module consumes 5 VDC / 600 mA and 24 VDC / 750 mA, and its coupling function is automatically tested during operation.

Key Features

• HIMA F7553 coupling module from assembly kit B 9302, order no. 98 4755302
• Couples central subrack to I/O subracks in PES H51q systems
• Monitors the 5 V supply of the I/O subrack and reports status
• Recessed watchdog switch for module replacement without error stop (-MS/-HS)
• WD and SEL front LEDs plus coding switches for cabinet and subrack address
• Automatic coupling test during operation; 4 SU space requirement

Applications

• PES H51q-MS and H51q-HS central/I/O subrack coupling
• H51q-HRS systems with corresponding coding
• Replacement of failed coupling modules in legacy HIMA safety cabinets
• Spare stock for H51q-based ESD and burner management systems

Specifications

Compatibility

The HIMA F7553 coupling module is designed for the PES H51q family, including the -MS, -HS and -HRS variants. It is the matching spare for systems originally built with the assembly kit B 9302 and can be exchanged 1:1 against the identical original part.

Ordering Information

Order the HIMA F7553 by its original order number 98 4755302. For a full H51q maintenance kit consider ordering the coupling module together with central modules F 8650/F 8650X and I/O modules of the same series.

The F7553 coupling module couples the central subrack to the I/O subrack of the PES H51q system, and its coding switches S1.1 to S1.4 set the cabinet number or, in HRS systems, the I/O bus and I/O subrack number.

The coupling module also contains the monitoring of the 5 V supply of the I/O subrack and transmits a corresponding status signal to the central module.

The HIMA F7553 coupling module is fitted in slot 17, the slot provided for the I/O bus coupling module, and gives the central module access to the I/O modules of the I/O subrack.

Coding Switches and Subrack Addressing

The HIMA F 7553 carries four coding switches, S1.1 to S1.4, on the module. According to the H51q manual they are used to set the number of the cabinet or, in HRS systems, the I/O bus number and the I/O subrack number. A replacement module must therefore be set to the same switch positions as the module it replaces, otherwise the central module will not reach the intended I/O subrack. Note the positions before removing the old module.

The two front LEDs support commissioning checks. The WD LED shows that the safety-related watchdog signal is present, and the SEL LED signals access to the I/O modules of the associated I/O subrack. The manual warns that the recessed WD switch must be operated before the coupling module is replaced in -MS and -HS systems; if it is not, the whole system switches to error stop.

Why Seven Star LLC

Seven Star LLC supplies verified HIMA safety spares to process plants across Oman and the GCC. The F7553 is inspected and tested before shipment, and every order is accompanied by traceability documentation for your maintenance records.

Our engineers help you verify the exact model and revision before ordering, avoiding costly mismatches.

Request a Quote for HIMA F7553 Coupling Module 984755302 for PES H51q

For the HIMA F7553 coupling module or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your module, I/O and system configuration, and our specialists will respond with a detailed commercial proposal and the official HIMA documentation.

Confirming the Right F 7553 Before Ordering

H51q cabinets hold many modules that look alike, so check the installed part before ordering. The front label carries the type designation (F 7553) and the order number 98 4755302; compare both with the cabinet parts list. Also note the hardware revision printed on the label, and write down the positions of coding switches S1.1 to S1.4 on the old module. The replacement must be set the same way, or the central module will address the wrong I/O bus or cabinet.

• Type and order number from the module label
• System variant (H51q-MS, -HS or -HRS)
• Coding switch positions and the subrack the module serves

Replacement and Commissioning

Coupling module work affects a whole I/O subrack, so treat it as a change to a safety system. Follow your site’s management-of-change and bypass rules, and agree the job with operations beforehand. In -MS and -HS systems, use the recessed watchdog switch as described in the HIMA documentation so the swap does not cause an unplanned error stop. After fitting the new module:

• check that the WD and SEL LEDs show normal status;
• confirm in the diagnostic display or engineering tool that the central module sees the I/O subrack with no coupling faults;
• verify a sample of inputs and outputs in that subrack before removing any bypasses.

Troubleshooting Tips

If an I/O subrack drops out, check the 5 V supply to that subrack and the bus cable connections before replacing the coupling module, because the F 7553 reports supply faults as well as its own. Intermittent faults are often caused by loose connectors or high cabinet temperatures, which are common issues in older GCC plants with ageing HVAC in the equipment rooms.

H51q Systems in Oman and the GCC

Many ESD, fire and gas, and burner management systems built on the H51q platform are still in service across the region’s oil, gas and petrochemical plants. As the platform ages, keeping a tested spare coupling module on site is a simple way to protect the system’s availability until migration is planned.

Sourcing Through Seven Star LLC

Send Seven Star LLC the label details and your system variant, and we will confirm the match and provide a quotation with lead time.
