Brand: Atlas Copco

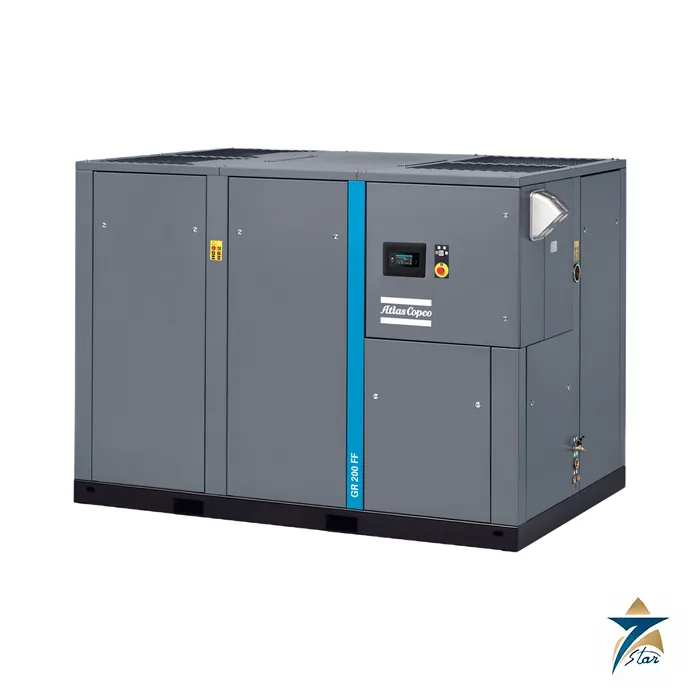

Atlas Copco GR 110-200 High-Pressure Screw Compressor
Description
Two-stage oil-injected screw compressors for pressures up to 20 bar
The Atlas Copco GR 110-200 (FF) is a two-stage, oil-injected rotary screw compressor series for high-pressure air up to 20 bar(e) / 290 psig, and the manufacturer notes that it is often used as a mine compressor. Two-stage compression reduces the load on bearings, rotors and gears at high pressure, which Atlas Copco links to higher efficiency, longer element life and reliable operation in hot and dusty conditions. The FF (full feature) version adds an integrated refrigerant dryer with a pressure dew point of 3 to 4 °C at reference conditions and a standard moisture separator, and every unit is controlled by the Elektronikon MK5 controller with a high-resolution colour display.
Technical specifications
| Model | Max. working pressure bar(e), pack / full feature | FAD | Installed motor | Noise dB(A) | Weight kg, pack / full feature |
|---|---|---|---|---|---|
| GR 110, 50 Hz | 20 / 19.75 | 211 l/s, 12.6 m3/min, 447 cfm | 110 kW (150 hp) | 72 | 3,140 / 3,470 |
| GR 110, 60 Hz | 20 / 19.75 | 224 l/s, 13.4 m3/min, 475 cfm | 110 kW (150 hp) | 72 | 3,140 / 3,470 |
| GR 200, 50 Hz | 20 / 19.75 | 385 l/s, 23.1 m3/min, 816 cfm | 200 kW (270 hp) | 72 | 3,547 / 3,877 |
| GR 200, 60 Hz | 20 / 19.75 | 390 l/s, 23.4 m3/min, 827 cfm | 200 kW (270 hp) | 78 | 3,547 / 3,877 |
| Parameter | Specification |
|---|---|
| Dimensions L x W x H | 2,779 x 1,886 x 2,010 mm (109.4 x 74.3 x 79.2 inch) |
| Reference conditions | ISO 1217 Annex C, Edition 4 (2009); absolute inlet pressure 1 bar, intake air temperature 20 °C |
| Noise measurement | ISO 2151 and ISO 9614; A-weighted emission sound pressure level at the work station, uncertainty 3 dB |
| Drive motor | IP55, Class F; IP54 motor and large oversized cooler blocks for hot and dusty environments; PT1000 thermal protection in motor |
| Oil | RXD oil, 8,000-hour interval |
| Integrated dryer (FF) | Refrigerant dryer, pressure dew point 3 to 4 °C at reference conditions |
Scope of supply and options
The scope of supply lists the air intake filter and valve, aftercooler and oil cooler, cooling or ventilation fan, oil filters, the complete air/oil circuit, the air/oil separator, built-in electrical starter, silencing canopy, ISO or NPT connections, anchor pads and a performance test certificate. Options include modulating control, a heavy-duty air intake filter, an integrated water separator, a phase sequence relay, an anti-condensation heater for the main motor, a witness performance test, material test certificates, SPM monitoring, a Smartbox and seaworthy packing.
Selecting a GR and what to confirm
Pick the GR when the process needs a clean oil-injected supply above the usual 7 to 13 bar band and a booster is not wanted. Choose between the two sizes by delivery at working pressure, and between pack and full-feature versions by whether the dew point from the integrated dryer is adequate. Confirm supply frequency, because the 50 Hz and 60 Hz delivery and noise figures differ, and confirm the ambient and dust conditions. Seven Star LLC, an independent supplier in Muscat, quotes the exact variant. The Atlas Copco leaflet is attached and other machines are under Compressors; for a variable-speed alternative see the Atlas Copco GA VSD+ page.
Datasheets & Documents
- Datasheet Atlas Copco GR 110-200 (FF) leaflet Download
Reviews (0)
About brand
The screw compressor in the corner of the utility room is, in a great many plants, an Atlas Copco. The company, founded in 1873, is based in Nacka, Sweden and builds compressed air equipment. Seven Star LLC lists Atlas Copco G and GA VSD+ oil-injected rotary screw compressors and supplies Atlas Copco compressors and parts to workshops and plants in Oman and the GCC.
Atlas Copco compressor ranges on this page
The G 2-22 range covers the smaller fixed-speed oil-injected screw compressors, from 2.2 to 22 kW, supplied floor-mounted or tank-mounted, with or without an integrated dryer. The GA VSD+ series uses a variable speed drive, so the motor follows the air demand, which suits plants whose consumption changes through the shift. Both are monitored through an Elektronikon controller.
Ordering Atlas Copco compressors and parts: what we need
For parts and service kits, send the compressor model, the serial number from the data plate and the part number if you have it. Filters, separators and oil are specific to the model and build year. For a new compressor, give the air flow required (FAD), working pressure, supply voltage and frequency, the highest ambient temperature at site, and whether a dryer and receiver are required.
Browse Atlas Copco products by category: Compressor.
Related products
Frequently Asked Questions
What pressure does the Atlas Copco GR 110-200 reach?
Up to 20 bar(e), or 290 psig, according to the leaflet.
Is the GR a two-stage compressor?
Yes. It is a 2-stage oil-injected rotary screw compressor series.
What is the full feature version?
It adds an integrated refrigerant dryer and a standard moisture separator.
What are the two models?
GR 110 with a 110 kW motor and GR 200 with a 200 kW motor.
Which controller is used?
The Elektronikon MK5 with a high-resolution colour display.
