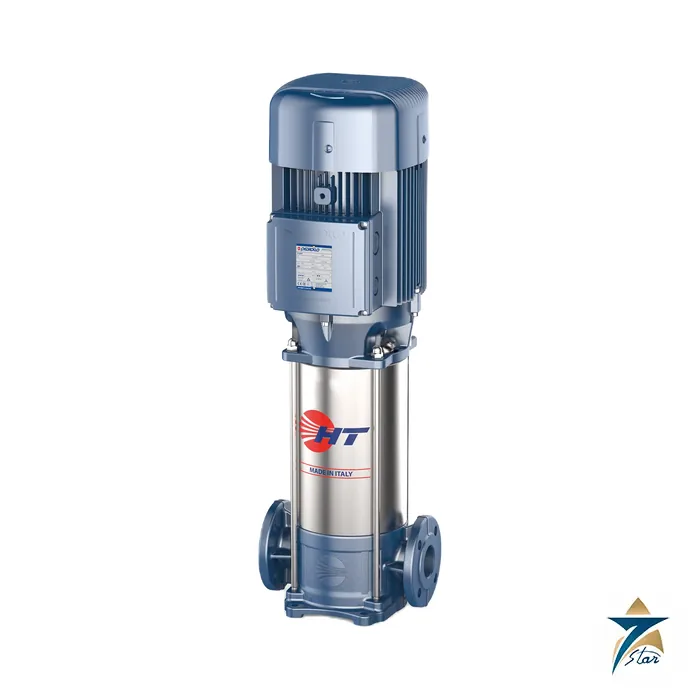

Pedrollo HT Vertical Multistage Centrifugal Pump

Vertical multistage centrifugal pumps with stainless steel hydraulics up to 160 m head

The Pedrollo HT series is a range of vertical multistage centrifugal pumps with AISI 304 stainless steel impellers, diffusers and external sleeve, a cast-iron pump body and head, and flanged and threaded ISO 228/1 ports. Pedrollo specifies them for clean water free of abrasive particles and for liquids that will not damage the pump components, in domestic, civil, agricultural and industrial use. Named applications are raising pressure in water distribution with pressure tanks, fire-fighting systems, heavy-duty cleaning, industrial power washers and irrigation.

The 50 Hz datasheet covers seven frames, HT 3, 5, 8, 10, 15, 22 and 30, with flow up to 800 l/min (48 m3/h) and head up to 160 m. Motors are three-phase IE3 for HT, and single-phase IE2 (HTm) for the smaller frames. Pedrollo notes that the multistage design gives exceptionally quiet operation.

Technical specifications

Frames, stages and flange sizes

The model code reads frame, then number of stages: HT 8/6 is the HT 8 frame with six stages and a 2.2 kW motor, delivering 94 m at zero flow and 34.5 m at 200 l/min. The HT 15/2R, 15/3R and 30/2R models carry an R suffix in the datasheet, so read their curves separately. Head figures shown are at the lowest listed flow and fall as flow increases.

Selection and installation notes

Choose the stage count so that the required head falls in the middle of the curve, away from the shut-off end, and check net positive suction head, since the datasheet limits the manometric suction head to 7 m. The flanged ports and counter-flange option make the pump easy to fit into a pressure-boosting skid; Pedrollo lists counter-flanges, EPDM or Viton O-rings in place of the standard NBR, NPT threaded ports, a dry-running protection kit and 60 Hz or other voltages as available on request.

Because the impellers and diffusers are stainless steel but the pump body is cast iron, check suitability for the water chemistry. For a comparable multistage design from another manufacturer see the Grundfos CR vertical multistage pump; for end-suction flanged pumps see the Grundfos NB.

How the Pedrollo HT pump works

The motor turns a shaft that carries several impellers stacked one above the other. Water enters at the bottom and passes from stage to stage through the diffusers. Each stage adds pressure, so the outlet pressure rises with the number of stages.

Where the Pedrollo HT is used

• Pressure boosting with pressure tanks
• Fire-fighting systems
• Heavy-duty cleaning
• Industrial power washers
• Irrigation

Selection checklist for the Pedrollo HT

• Flow needed
• Head needed
• Number of stages
• Frame size
• Motor power
• Power supply
• Liquid temperature
• Flange size

Installation, commissioning and maintenance notes for the Pedrollo HT

Fix the pump upright on a firm base and connect clean pipework to the ports. Fill the pump with water before the first start. Check the seal, the motor and the pressure at regular intervals.

Requesting a quotation for the Pedrollo HT

Please send the flow, the head, the liquid and the power supply. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

HT pump type

It is a vertical multistage centrifugal pump.

HT maker

It is made by Pedrollo.

HT series size

The range has seven frames, HT 3, 5, 8, 10, 15, 22 and 30.

HT liquids

It is meant for clean water free of abrasive particles.

HT other liquids

It can also handle liquids that do not damage the pump parts.

HT flow rate

Flow goes up to 800 l/min, which is 48 m3/h.

HT head

Head goes up to 160 m.

HT suction lift

Manometric suction head goes up to 7 m.

HT liquid temperature

The liquid can be from minus 15 to plus 90 degrees C.

HT ambient temperature

Ambient temperature is up to 40 degrees C.

HT working pressure

Maximum working pressure is 16 bar.

HT impellers

The impellers are stainless steel AISI 304.

HT diffusers

The diffusers are stainless steel AISI 304.

HT outer sleeve

The external sleeve is stainless steel AISI 304.

HT pump body

The pump body and head are cast iron.

HT shaft

The shaft is stainless steel.

HT mechanical seal

The seal faces are graphite and ceramic with NBR.

HT three-phase motor

The HT version has a three-phase motor.

HT single-phase motor

The HTm version has a single-phase 230 V motor for the smaller frames.

HT motor protection

The single-phase motor has a capacitor and thermal protection.

HT duty

It is built for continuous running.

HT noise

Pedrollo notes that the multistage design gives quiet operation.

HT smallest frame

The HT 3 frame has a DN25 flange and motors of 0.75 to 3 kW.

HT HT 5 frame

The HT 5 frame has a DN32 flange and motors of 0.75 to 4 kW.

HT HT 8 frame

The HT 8 frame has a DN40 flange and motors of 1.1 to 5.5 kW.

Pump records for the HT

Record the frame, the stage count and the date of each service.

Choosing the right HT frame

Choose the frame from the flow and the head at the duty point.

Documents and quotation

The Pedrollo HT 50 Hz datasheet (12 pages, EN) lists the full performance tables for all seven frames, absorbed current, flanges and materials is attached to this page and is the manufacturer’s own document, not a Seven Star summary. The manual from the Pedrollo product page covers installation, operation and maintenance.

Before ordering confirm the frame and stage count, voltage and frequency, seal and O-ring material for the liquid, and flange or counter-flange requirement. Seven Star LLC, an independent supplier in Muscat, quotes the Pedrollo HT against your duty point and delivery requirement; send the document tag, flow, head and liquid so the right size can be confirmed before an offer is issued.
