SM-610-123 Brüel & Kjær Vibro Monitoring Module
Overview
The Brüel & Kjær Vibro SM-610-123 Monitoring Module is part of the modular VIBROCONTROL 6000® Monitoring System, a scalable vibration and machine condition monitoring platform used in industrial environments to ensure early detection of faults and protection of rotating machinery. The SM-610-123 is one of the safety and monitoring modules in the SM-610 series, each responsible for acquiring and processing measurement signals, evaluating machine condition parameters, and providing alarm or output signals according to configured limits and criteria.
The SM-610-123, like other SM-610 modules, interfaces directly with a range of sensor inputs (e.g., vibration sensors, DC process signals) and processes these signals through a high-speed digital signal processor (DSP). This enables real-time monitoring data acquisition, status indication, and relay output control for protective and condition-based maintenance applications.
System Integration & Function
As a plug-in module within the VIBROCONTROL 6000 rack system, the SM-610-123 works alongside power supply modules (PS-610) and communication interface modules (CI-6xx) to form a complete monitoring solution. The SM-610-123 collects input signals from vibration and process sensors, evaluates them against configured thresholds, and triggers alarm or control outputs when predefined conditions are met.
Each monitoring module operates independently, ensuring that a local fault in one module does not affect the performance of others. A typical installation includes multiple SM-610 modules configured for different machine condition measurements.
Typical Industrial Use
The Brüel & Kjær Vibro SM-610-123 Monitoring Module is suitable for a wide range of industrial condition monitoring and machine protection applications, including:
-
Monitoring shaft vibration and bearing conditions of rotating equipment
-
Early detection of imbalance, misalignment, or loosening in machinery
-
Protective monitoring for advance warning of machinery faults
-
Integration into predictive maintenance programs in power plants, manufacturing facilities, petrochemical and process industries
Designed for use on a DIN-rail or rack installation, the SM-610-123 supports buffered analogue outputs, relay control outputs, and status indication for seamless integration into automated monitoring systems.
Why This Module
The SM-610-123 is part of the broader SM-610 series, which is engineered to support a flexible range of monitoring needs with modular plug-in capability. The SM-610 modules provide scalable acquisition channels and configurable protective logic, enabling maintenance teams to tailor condition monitoring according to machine type, operating environment, and criticality.
By combining multiple SM-610 modules in a VIBROCONTROL 6000 rack, industrial facilities can implement a comprehensive machine condition monitoring strategy that enhances uptime, reduces unexpected downtime, and integrates into higher-level data visualization and analysis tools.
Request a Quote for SM-610-123 Brüel & Kjær Vibro Monitoring Module
Request a quote or technical inquiry for the Brüel & Kjær Vibro SM-610-123 Monitoring Module to confirm availability and integration support within your industrial condition monitoring system. Seven Star LLC can assist with industrial supply and technical sourcing.
Identifying the Correct SM-610 Module
The SM-610 family shares one housing, so modules that look identical on the shelf can carry different input and output configurations. Before ordering a replacement, read the full type code on the module label rather than relying on the front panel, and record the serial number. The suffix after SM-610 defines the variant, so an SM-610-123 should only be swapped for another SM-610-123 unless the configuration has been reviewed against the machine’s monitoring concept. It also helps to note the rack slot, the PS-610 supply and CI-6xx interface already fitted, and the sensor types wired to the channel.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Brüel & Kjær Vibro |
| Model | SM-610-123 |
| Product Type | Monitoring module (SM-610 series) |
| Compatible System | VIBROCONTROL 6000 |
| Inputs | Vibration sensors, DC process signals |
| Signal Processing | High-speed digital signal processor (DSP) |
| Outputs | Alarm and relay output control |
Installation and Commissioning
- Isolate the channel and inform operations before removal, because alarm and trip relays may change state when a module is pulled from a protection rack.
- Check the existing sensor wiring, shield termination and earthing before inserting the new module; many “faulty module” reports turn out to be damaged cable or a loose shield.
- Load or verify the configuration (measurement type, filters, alarm and danger limits, relay logic and time delays) using the project settings, not factory defaults.
- Inject a known signal or compare against a portable analyser to confirm the reading, then test each relay output through to the DCS or trip circuit.
- Record the as-left limits and firmware version in the machine file for future audits.
Maintenance and Troubleshooting
In service, the module needs little attention beyond periodic loop checks and proof testing of protective relays at the intervals set by the plant safety programme. When a channel shows a fault or unstable reading, work from the sensor back to the rack: measure the sensor bias or DC signal at the terminals, look for intermittent connections at junction boxes, and review the status indication before replacing hardware. Keep the rack clean and well ventilated, since heat in poorly cooled analyser or control rooms shortens electronic component life.
Applications in Oman and the GCC
VIBROCONTROL 6000 systems are used on gas turbines, compressors, pumps and fans in power and water plants, gas processing facilities and refineries across the region. For these sites, holding a tested spare SM-610 module on the shelf is a practical way to cut downtime, because critical machines often cannot run without active protection on every channel.
Sourcing Through Seven Star LLC
When you send an enquiry, include the full type code, serial number and a photo of the module label. Our team will check the variant against your existing installation and confirm availability and lead time before you commit to an order.
Other Models in the Brüel & Kjær Vibro 610 Monitoring System Range
Seven Star LLC supplies models from the Brüel & Kjær Vibro 610 Monitoring System range in Oman and the GCC. Compare the related models below and request a quote for the one that matches your application.
| Model | Category | |
|---|---|---|
| Bruel-Kjaer RC-610 19-inch Rack | Vibration Monitoring | View details |
| Bruel-Kjaer PS-610 Power Supply (Replaced by PS-615) | Vibration Monitoring | View details |
| PS-610 Brüel & Kjær Vibro Power Supply Module | Vibration Monitoring | View details |
| SM-610-123 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | You are viewing this model |

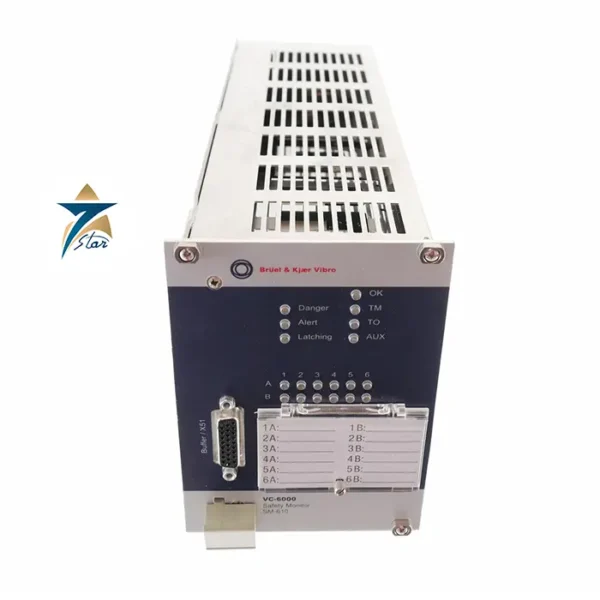

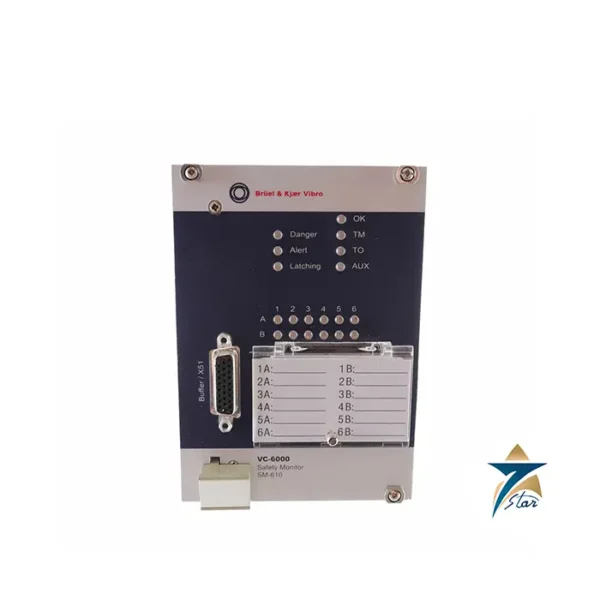

| SM-610-107 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | View details |

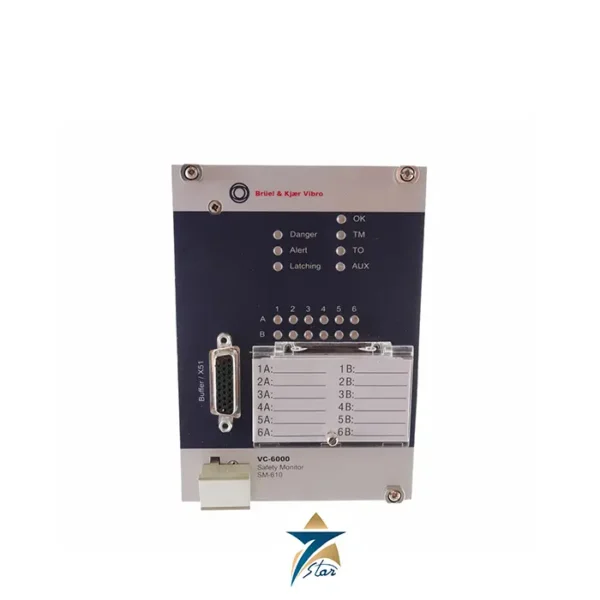

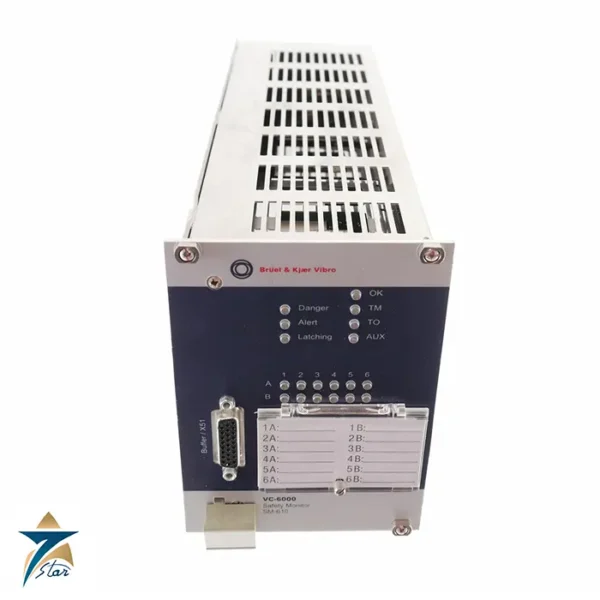

| SM-610-113 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | View details |

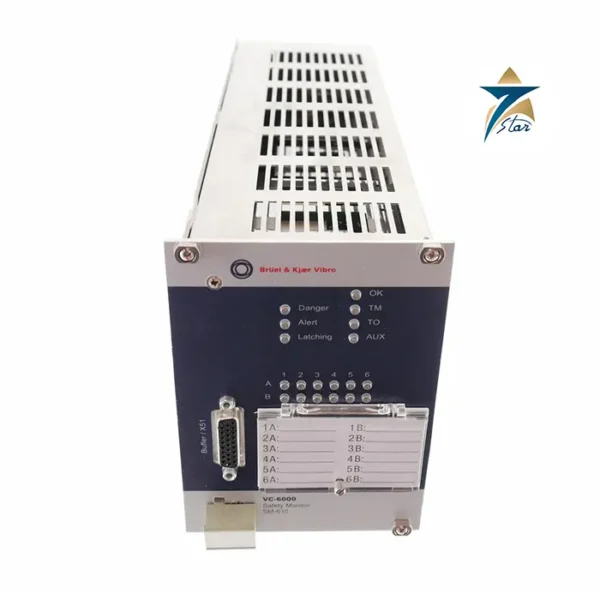

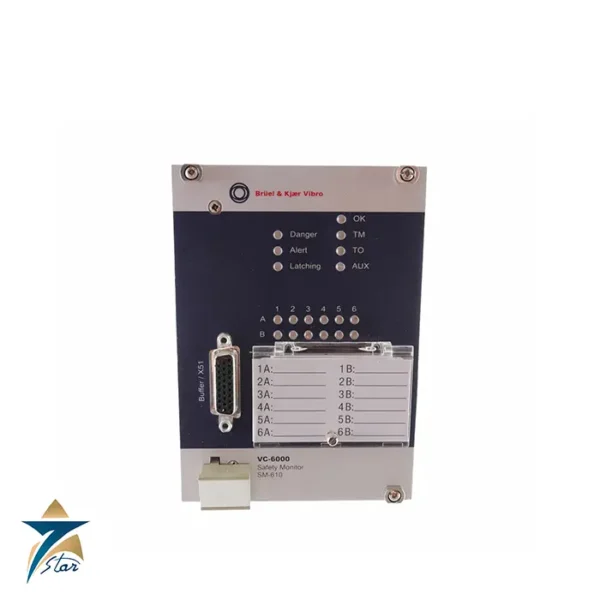

| SM-610-139 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | View details |
| SM-610-118 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | View details |
| SM-610-A02 Brüel & Kjær Vibro Monitoring Module | Vibration Monitoring | View details |
Related Products
- Brochure Brüel & Kjær Vibro VIBROCONTROL 6000 Monitoring System Specifications Download
Brüel & Kjær Vibro product families
The largest group here is rack hardware: SM-610 monitoring modules in many variants (the suffix, as in SM-610-A02 or SM-610-118, fixes the version), the PS-610 power supply module and the CI-620 communication interface. Stand-alone monitors include the VIBROCONTROL 1000, the VC-920 and the VC-868/1, alongside the AMO-622 monitoring system. Sensors include the VS-068 and VS-069 velocity sensors. The manufacturer's present machinery protection platform is the VC-8000. Laboratory accelerometers and sound and vibration analyzers that carry the Brüel & Kjær name are a separate product line; send us the type number if that is what you need.Where Brüel & Kjær vibration monitoring is used
Typical machines are steam and gas turbines, generators, centrifugal compressors, boiler feed pumps, cooling tower and process fans and gearboxes in power plants, oil and gas facilities, cement works and petrochemical plants. The monitors supply alarm and trip contacts to the plant protection system and measured values to the control room.Ordering Brüel & Kjær Vibro parts: what we need
Send the complete type designation with its suffix, the order or part number from the label, and the serial number. For monitors add the measuring span, sensor type, supply voltage and output configuration, since many units are configured to order. For sensors give sensitivity, mounting direction, cable length, connector and the hazardous area approval. Photos of the label and of the rack help.Browse Brüel & Kjær products by category: Vibration, Portable Test & Measurement, Sensors & Transmitters.
