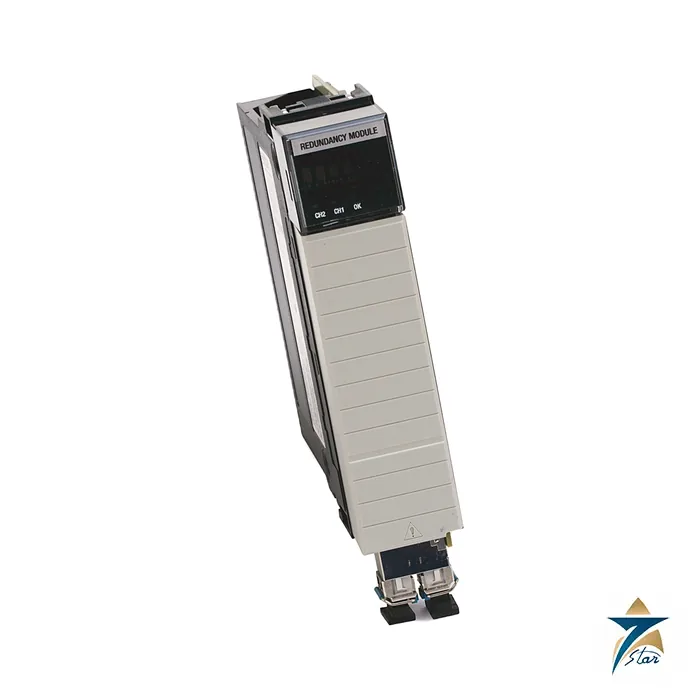

Allen-Bradley 1756-RM2 ControlLogix Redundancy Module
Description
The link that keeps two ControlLogix chassis in step
The Allen-Bradley 1756-RM2 is the redundancy module used to build a ControlLogix redundant controller pair. One module sits in each chassis and the two are linked by fibre-optic cable, so the secondary controller always holds the data of the primary and can take over without a bump. Redundant ControlLogix is used for gas compression, power generation and water treatment duties where an unplanned shutdown is costly.
Rockwell Automation lists the module as Active Mature; the 1756-RM3 is the newer generation, and the same SFP transceivers can be reused between them according to the technical data. In a plant the benefit is that firmware or hardware faults in the primary do not stop the process, and online repair of the failed chassis can be done while the partner keeps running.
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog number | 1756-RM2 (1756-RM2K conformal coated; 1756-RM2XT extended temperature) |
| Link | Fibre optic, two channels, 1000 Mbit per second per the product page |
| Connector cables (singlemode only) | 1756-RMC1 1 m, 1756-RMC3 3 m, 1756-RMC10 10 m |
| Backplane current | 1.16 A at 5.1 V DC; 3.4 mA at 24 V DC |
| Power dissipation | 6 W max (21 BTU/hr) |
| Weight, approx | 0.29 kg (0.64 lb) |
| Slot width / location | 1 slot, any slot |
| Controller families supported | ControlLogix 5570 and ControlLogix 5580 |
| Chassis (standard) | 1756-A4, A7, A10, A13, A17 |
| Power supplies | 1756-PA72, PA75, PB72, PB75; redundant PA75R, PB75R, PSCA2 |
| Operating temperature | 0 to +60 C (RM2XT: -25 to +70 C) |
| Enclosure / temperature code | Open-style; T4 |
| Certifications as printed | UL Class I Div 2, FM, CE, RCM, ATEX II 3 G Ex ec IIC T4 Gc (UL 22 ATEX 2818X), IECEx, UKCA, KC, CCC |
How the redundancy pair is built
Each redundant chassis needs a controller, the 1756-RM2 module and the usual EtherNet/IP or ControlNet bridges. The redundancy link is carried on the two fibre channels using the cables above or on user-supplied fibre with compatible SFP transceivers. The technical data notes that the controller must be enabled for redundancy, which switches off its Ethernet port and integrated motion on the 5580, so the system design should put the networks on separate bridge modules.
What to confirm before ordering
Check that both chassis hold matching module revisions, that the controllers are of a supported 5570 or 5580 type, and that the chassis and power supplies are on the compatible list. Distances are set by the SFP transceiver and fibre type chosen, so request the redundancy installation instructions 1756-IN087 for the transceiver details. Use this page as a starting point only. A redundancy system also requires identical controller catalog numbers and matched firmware, which the system user manual 1756-UM015 describes in detail.
Documents and quotation
The linked 1756-TD001 technical data includes the redundancy section with transceivers and cable lengths. Related PLC hardware can be found in the PLC & I/O Cards category. To request a quotation send the catalog number and quantity to Seven Star LLC, an independent supplier in Muscat.
Datasheets & Documents
- Technical data Rockwell Automation 1756 ControlLogix and GuardLogix Controller Specifications, publication 1756-TD001 Download
Reviews (0)
