Zebra ZT610 High-Performance Industrial Label Printer

Name: Zebra ZT610 High-Performance Industrial Printer – Datasheet
Brand: Zebra Technologies
SKU: ZT610

Description

The Zebra ZT610 is the high-performance 4-inch printer of the ZT600 series, designed for demanding thermal transfer and direct thermal labelling with a 4.3 in. colour touch display, 1 GB SDRAM and 2 GB on-board Flash, a Cortex A9 800 MHz processor and gigabit Ethernet.

Performance headroom for high-volume and fine-print labelling

The ZT610 keeps the 4.09 in. (104 mm) print width but widens the choice of resolution to 203 dpi (8 dots/mm), 300 dpi (11.8 dots/mm) or 600 dpi (23.62 dots/mm), and is specified for programmable speeds of 2 to 14 in./s at 203 dpi and 2 to 12 in./s at 300 dpi. A cableless quick-change platen, side-loading print mechanism and a clear bi-fold media door make supplies changes quicker.

Typical uses include serialised asset and equipment labels with small 2D codes, electrical and instrumentation identification, regulated chemical labelling and high-throughput dispatch labels.

Technical specifications

Parameter	Specification
Print methods	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm); 300 dpi (11.8 dots/mm); 600 dpi (23.62 dots/mm)
Maximum print width	4.09 in. (104 mm)
Print speed	203 dpi: up to 14 in./s; 300 dpi: up to 12 in./s
Maximum non-continuous print length	39 in. (991 mm)
Maximum continuous print length	150 in. (3810 mm) at 203 dpi; 100 in. (2540 mm) at 300 dpi
Media width (label and liner)	0.79 in. (20 mm) to 4.5 in. (114 mm)
Media types	Continuous, die-cut, notch, hole or black mark
Media thickness	0.003 in. (0.076 mm) to 0.012 in. (0.305 mm), non-cutter
Minimum label length (203/300 dpi)	Rewind 0.25 in. (6 mm); peel 0.5 in. (13 mm); tear-off 0.7 in. (18 mm); cutter 1.5 in. (38 mm)
Maximum roll	8.0 in. (203 mm) O.D. on 3 in. (76 mm) core
Ribbon	0.79 in. (20 mm) to 4.33 in. (110 mm); 1476 ft (450 m) standard; coated side out
Processor and memory	Cortex A9 800 MHz; 1 GB SDRAM (32 MB user); 2 GB Flash (512 MB user)
Standard communications	RS-232, USB 2.0, Bluetooth 4.1, static NFC tag, gigabit Ethernet, two front USB host ports
Options	Cutter with catch tray, rewind spindle, ribbon spindle coated side in, applicator interface, UHF RFID, IPv4 gigabit server card, parallel port, IPv6 external print server, dual-radio 802.11ax Wi-Fi with Bluetooth 5.3
Languages	ZPL and ZPL II, XML-enabled printing
Operating environment	Thermal transfer 5 to 40 C; direct thermal 0 to 40 C; 20 to 85 percent non-condensing
Power	250 W universal supply with PFC, 90 to 265 VAC, 47 to 63 Hz
Dimensions and weight	H 15.58 in. (395.7 mm); W 10.56 in.; D 19.88 in. (505 mm); 50 lb (22.7 kg)

Sensing, printhead and software facts

Gap sensing needs a 2 to 4 mm gap (3 mm preferred), 6 mm by 3 mm notch or 3 mm hole; black marks must be 3 to 11 mm long and longer than 11 mm wide with density above 1.0 ODU. The sheet gives a first-dot location of 0.14 in. +/- 0.05 in. at 203 dpi and 0.08 in. +/- 0.05 in. at 300 dpi. The ZT600 series runs on Link-OS with Zebra DNA tools for fleet management, and the sheet lists clear status of supplies without opening the door.

When to choose the ZT610 over the ZT411 or ZT620

Pick the ZT610 for the largest memory, gigabit Ethernet and the 600 dpi option in a 4-inch body; the ZT411 is the metal-mechanism alternative with a 4.3 in. display, and the ZT620 is the 6.6 in. wide version of this platform. Confirm resolution, Ethernet or Wi-Fi, cutter or rewind, RFID, power cord and media before ordering. Related items: industrial automation accessories.

Documents and quotation

The Zebra ZT610 specification sheet (manufacturer PDF; the same document covers the ZT620) is attached to this page. Send your label size, resolution and volume for a quotation from Seven Star LLC, an independent supplier in Muscat.

Datasheets & Documents

Datasheet Zebra ZT610 and ZT620 Technical Specifications (manufacturer PDF) Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Zebra Technologies is a US manufacturer of barcode, label printing and mobile computing equipment, founded in 1969 and headquartered in Lincolnshire, Illinois. Its printers range from compact desktop label printers to industrial printers and print engines built into automatic labelling lines.

Seven Star LLC is an independent supplier in Muscat. We list Zebra label printers for warehouses, production lines and laboratories in Oman and the GCC.

Zebra product series

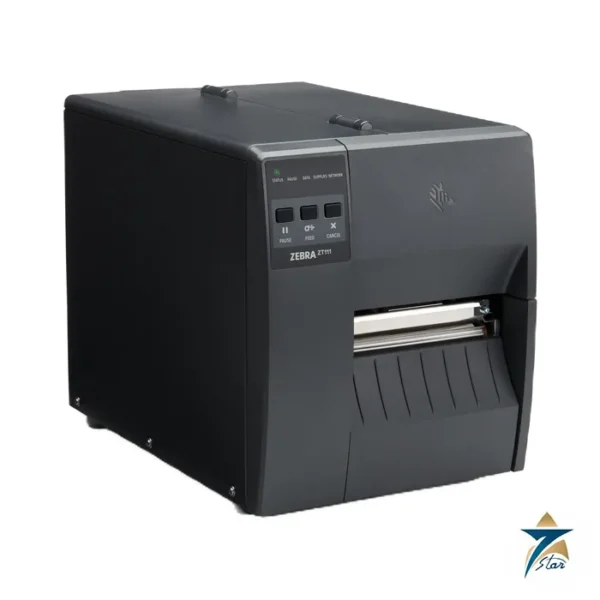

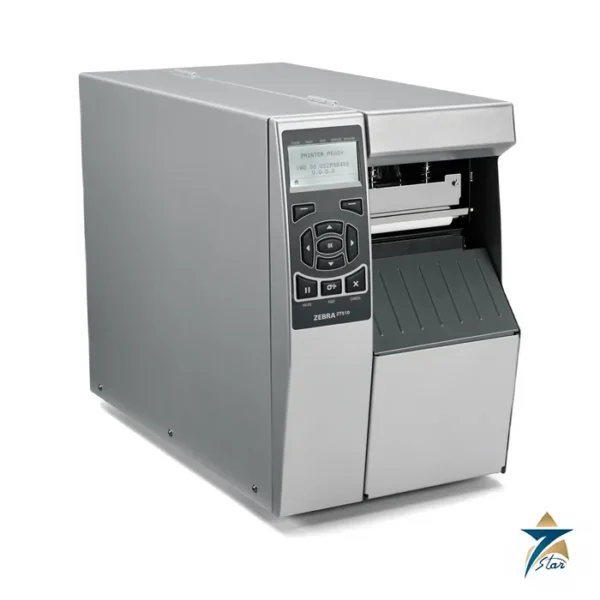

Industrial printers include the entry ZT111, the mid-range ZT231, the ZT411 and the 6-inch ZT421, the heavy-duty ZT510 and the high-performance ZT610 and 6-inch ZT620. The ZE511 print engine is designed for label applicators. Desktop models include the ZD421 thermal transfer printer and the ZD621 with Ethernet and serial interfaces.

The printers use ZPL programming and the Link-OS operating system, with resolutions up to 600 dpi on selected models and RFID encoding available on some.

Where Zebra printers are used

Shipping and pallet labels, product and asset labels, warehouse location and bin labels, laboratory sample labels and automatic print-and-apply on packaging lines.

Ordering Zebra printers: what we need

Send the model, print width and resolution, label size and media type, print volume, ribbon type, interface (Ethernet, Wi-Fi, serial or USB) and any cutter, peeler, rewinder or RFID requirement.
