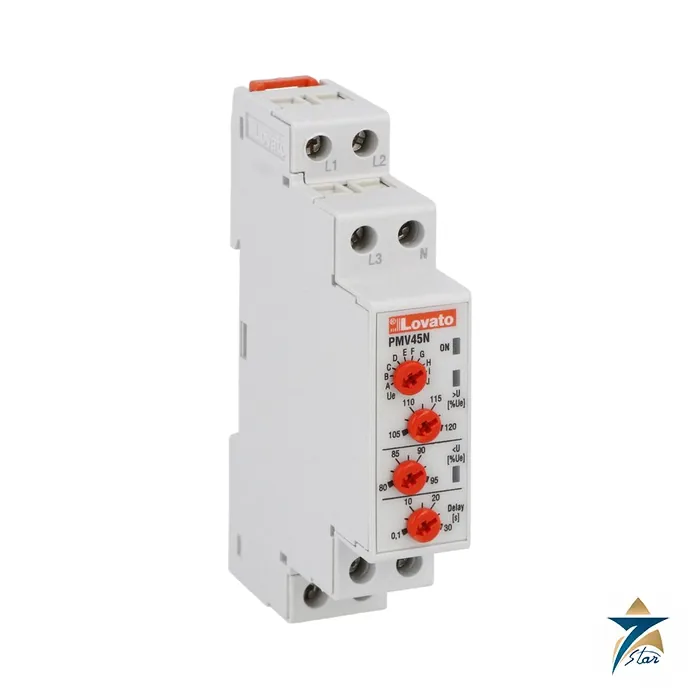

Lovato PMV45NA480 PMV45N Three-Phase Voltage Monitoring Relay

Name: Lovato PMV45NA480 Monitoring Relay | Seven Star LLC
Brand: Lovato Electric
SKU: PMV45NA480

Description

A PMV45N relay that watches a three-phase with/without neutral supply

The PMV45NA480 is a voltage monitoring relay for three-phase with/without neutral from Lovato Electric. It monitors the supply it is connected to and, according to the catalogue, performs this function: minimum and maximum ac voltage, phase loss, neutral loss and incorrect phase sequence relay. The controlled line voltage runs from 208 VAC to 480 VAC, and no separate auxiliary supply is needed because the relay is self powered.

Its tripping delay is 0.1-30 s, reset is automatic, and the output is 1 changeover SPDT rated for a thermal current of 8 A.

Technical specifications

Parameter	Specification
Order code	PMV45NA480
Product designation	Voltage monitoring relays
Product type designation	PMV45N
Description	Minimum and maximum AC voltage, phase loss, neutral loss and incorrect phase sequence relay
Type of system	Three-phase with/without neutral
Auxiliary supply voltage Us	Self powered
Operating voltage range	0.85-1.1 Ue
Rated frequency	50/60 ±5% Hz
Power consumption Max	18 VA
Power dissipation Max	6.5 W
Rated voltage to control (Ue) (min)	208 VAC
Rated voltage to control (Ue) (max)	480 VAC
Voltage set-point (%Ue) (min)	80-95 %
Voltage set-point (%Ue) (max)	105-120 %
Tripping delay	0.1-30 s
Resetting time	0.5 s
Instantaneous tripping for Ue	Voltage
Type of reset	Automatic
Tripping time for phase loss	60 ms
Number of relays	1
Relay state	Normally energised De-energises at tripping
Contact arrangement	1 changeover SPDT
Rated operational voltage AC (IEC)	250 VAC
Maximum switching voltage	400 VAC
IEC Conventional free air thermal current Ith ≤ 40°C	8 A
UL/CSA and IEC/EN 60947-5-1 designation	B300
Electrical life (with rated load)	100000 cycles
Mechanical life	30000000 cycles
Modular version	1U
Functions and protections provided	Minimum AC voltage, Maximum AC voltage, Natural loss, Phase loss, Incorrect phase sequence
Indication	1 green LED for power on and tripping and 2 red LEDs for tripping
Rated insulation voltage Ui	480 V
Rated impulse withstand voltage Uimp	6 kV
Operating frequency withstand voltage	4 kV
Operating temperature (min)	-20 °C
Operating temperature (max)	+60 °C
Storage temperature (min)	-30 °C
Storage temperature (max)	+80 °C
Execution (n° of modules)	1
Material	Self-extinguishing polyamide
Mounting	35mm DIN rail (IEC/EN 60715)
IEC degree of protection	IP40 on front; IP20 at terminals
Dimensions (W x H x D)	17.5 x 104.7 x 64.9 mm
Weight	85 g

What to match before ordering

Choose the relay by the system voltage and by what must be detected: phase loss and sequence only, undervoltage and overvoltage windows, or neutral loss as well. The Functions rows of the table list which of these the relay performs.

In practice the output contact is placed in the control circuit of a contactor or starter so that an abnormal supply drops the motor or switches a changeover scheme.

Where it is used

The relay suits commissioning checks as well as permanent protection: reversed phase sequence after a supply change is a common cause of reversed pump rotation and is caught immediately.

Housing: 1U.

For panel design and commissioning, the practical figures to keep at hand are: dimensions (W x H x D) 17.5 x 104.7 x 64.9 mm; weight 85 g; mounting 35mm DIN rail (IEC/EN 60715); operating temperature (min) -20 °C; operating temperature (max) +60 °C; storage temperature (min) -30 °C; storage temperature (max) +80 °C; execution (n° of modules) 1; material Self-extinguishing polyamide; IEC degree of protection IP40 on front; IP20 at terminals. These come straight from the datasheet and are repeated here so that the key installation limits are visible without opening the PDF.
