SAMSON Type 3277 Pneumatic Actuator for Integral Positioner Attachment

Overview

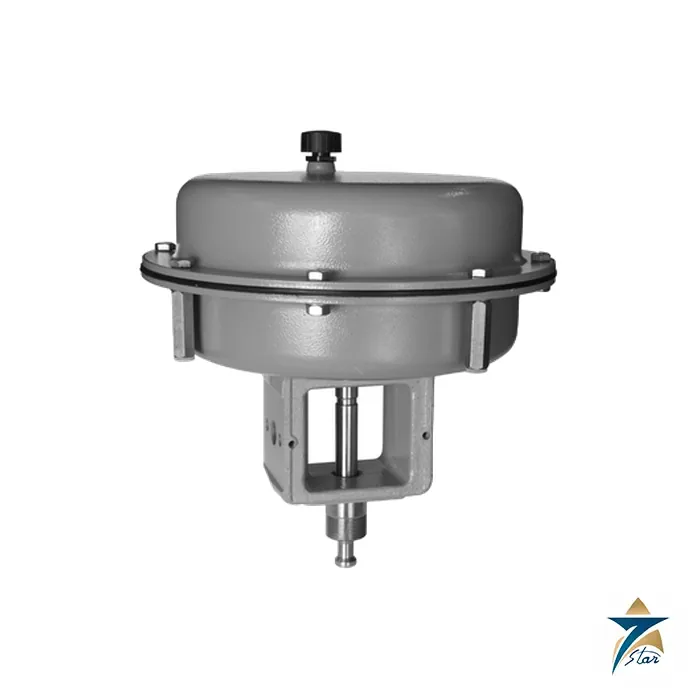

The SAMSON Type 3277 is a single-acting, linear pneumatic actuator designed for final control elements such as SAMSON Series 240, 250 and 280 control valves and butterfly valves. It is a diaphragm actuator with a rolling diaphragm and multiple internal springs, and its key difference from the standard Type 3271 is the yoke: the bottom diaphragm case is fixed to a yoke prepared for integral attachment of a pneumatic or electropneumatic positioner. The result is a compact control valve assembly where the positioner sits directly on the actuator with no external linkage or exposed tubing.

Seven Star LLC supplies the SAMSON Type 3277 to process plants, utilities and EPC contractors in the Sultanate of Oman and across the GCC. As a trusted supplier with engineering support in Muscat, we help customers match diaphragm area, bench range and fail-safe action to the valve and positioner they plan to use.

Operating Principle

In the SAMSON Type 3277, the signal pressure from the positioner acts on the rolling diaphragm and creates a force that is balanced by the internal springs. The number of springs and their initial compression define the signal pressure range, also called the bench range, and the travel is proportional to the signal pressure. How the springs are arranged in the actuator case, and whether the loading pressure is introduced to the top or bottom diaphragm chamber, determines the direction of action.

Two fail-safe actions are available. With “actuator stem extends”, the springs push the stem to the lower end position when the signal pressure drops or the air supply fails, which normally closes the valve. With “actuator stem retracts”, the springs pull the stem to the upper end position and the valve opens. For the most common fail-close arrangement, the signal pressure is led to the bottom diaphragm chamber through an internal air guide, so no external piping is needed at all.

Engineering Design of the SAMSON Type 3277

The standard SAMSON Type 3277 is offered with effective diaphragm areas of 240, 350 and 700 cm², with an optional top-mounted handwheel, and in a Fire-Lock version in which expansion cartridges hold the valve in its fail-safe position in case of fire. The smaller Type 3277-5 has a 120 cm² area and is typically used on the Type 3510 micro-flow valve. On the Type 3277-5, a changeover plate routes the positioner output pressure to either chamber, giving four combinations of fail-safe position and positioner operating direction without additional piping.

Direct attachment brings several practical benefits. The interference fit gives an exact mechanical connection, so the adjustment does not shift during shipping. The travel linkage is protected against accidental contact and external influences, and the air connection between positioner and actuator is simple. Because the spring chamber is connected to the inside of the yoke, no outside air can enter, which also protects the positioner against corrosion. Diaphragm cases are made of plastic-coated sheet steel on the larger sizes and plastic-coated die-cast aluminum on the Type 3277-5.

Key Features

The SAMSON Type 3277 is built around integral positioner mounting and offers the following features:

• A yoke prepared for direct attachment of pneumatic or electropneumatic positioners such as the Series 3730.
• Effective diaphragm areas of 120, 240, 350 and 700 cm² with rated travel from 7.5 to 30 mm.
• A low overall height combined with powerful thrust and a high speed of response.
• Various bench ranges, which can be changed without special tools.
• Actuator action that can be reversed in the field without special tools.
• Internal air routing for fail-close service, removing the need for external piping.
• Optional top-mounted handwheel and a Fire-Lock version for fire-safe duty.
• A sealed spring chamber connected to the yoke interior to protect the positioner from corrosion.

Industrial Applications

The SAMSON Type 3277 is used wherever a SAMSON globe valve needs a tidy, robust actuator-positioner package: steam pressure reduction, condensate level control, heat transfer oil systems, boiler feedwater and cooling water loops in power stations and desalination plants. In chemical and petrochemical units it actuates Series 240 and 250 valves on reactor feeds, solvent recovery and utility headers, where protected linkage and the absence of exposed tubing reduce maintenance in corrosive coastal air.

For throttling service the SAMSON Type 3277 accepts a supply pressure of up to 6 bar regardless of fail-safe position. In on/off service the fast stroking speed raises the pressure inside the actuator, so for the fail-open version the supply pressure must not exceed the upper bench range value by more than 3 bar. Seven Star LLC reviews these limits with engineers in Muscat, Sohar and Salalah when sizing actuators for new valves and for retrofit projects.

Technical Specifications

The following SAMSON Type 3277 data is taken from SAMSON data sheet T 8311 EN.
