Palmer Wahl TC622A Pocket RTD Calibrator

A pocket RTD calibrator for transmitters and probes

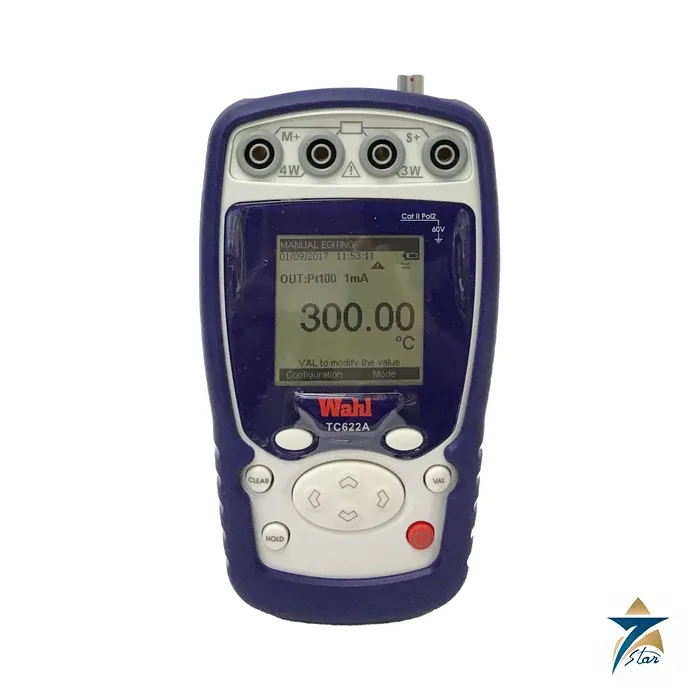

The Palmer Wahl TC622A is a handheld calibrator that measures or generates RTD temperatures for 12 different sensor types, and resistance, at an accuracy the datasheet states as 0.02 percent. The same datasheet covers its thermocouple sibling, the TC621, which handles 16 thermocouple types and voltage. The TC622A is described as a field tool for quick maintenance and commissioning of temperature transmitters and probes, with a large graphical display and a memory of 10,000 values.

The TC622A is delivered with four alkaline AA batteries, and an optional battery charger supports a rechargeable battery. The datasheet says the calibrators are widely used in the energy field, engineering sector, metal industry and automotive field, and are meant to be used with DATACAL calibration software to display and manage data and to issue customized calibration certificates.

Features

• Adjustable resolution down to 1 mohm (TC622) and values displayed in C, F and ohm.
• Very low temperature coefficient: 7 ppm per C in resistance, with IP54 protection and a robust case.
• Automatic detection of 2, 3 or 4 wire connections, shown on screen; connection through banana plugs or a 4-pin round connector.
• Measurement with a hold function, simulation of ramps, pre-programmed steps and synthesizer values.
• Calibrated sensor database so curves can be corrected according to the corrections on a calibration report.
• Data recorded manually on event or automatically at a programmable frequency, stored with date and time and shown as a list or a curve; 10,000 values.
• Scaling with up to 10 segments, minimum, maximum and average display, and a USB port.

TC622A specifications

Resistive probe specifications

At 23 C plus or minus 5 C with 4-wire probes; resolution 0.01 C; accuracy per 1 year as percent of reading plus a fixed value. Take into account the error of the sensor used and the installation conditions, as the datasheet states.

TC622A or TC621: choosing the right model

• Choose the TC622A for RTD transmitters, resistance thermometers and resistance checks; choose the TC621 for thermocouples and millivolt signals.
• The two models share the same housing, display, 10,000 value memory and IP54 rating, according to the shared datasheet.
• For process signals such as 4-20 mA, look at the P32 or C150 from the same maker.
• Use the sensor correction database when you hold a calibration report for the probe you are checking.

Installation and use notes

• Connect the RTD with four wires when you can, because the accuracy table assumes a four-wire connection.
• To simulate an RTD to a transmitter, keep the transmitter excitation within 0.1 to 1 mA as the datasheet specifies.
• Keep the unit within -10 to 50 C for the stated reference performance.
• Upload recorded data to DATACAL to produce your own calibration certificates.
