Palmer Wahl All Star Bimetal Thermometer 3 and 5 Inch

Name: Palmer Wahl All Star Bimetal Thermometer 3 and 5 Inch
Brand: Palmer Wahl
SKU: Palmer Wahl All Star

Description

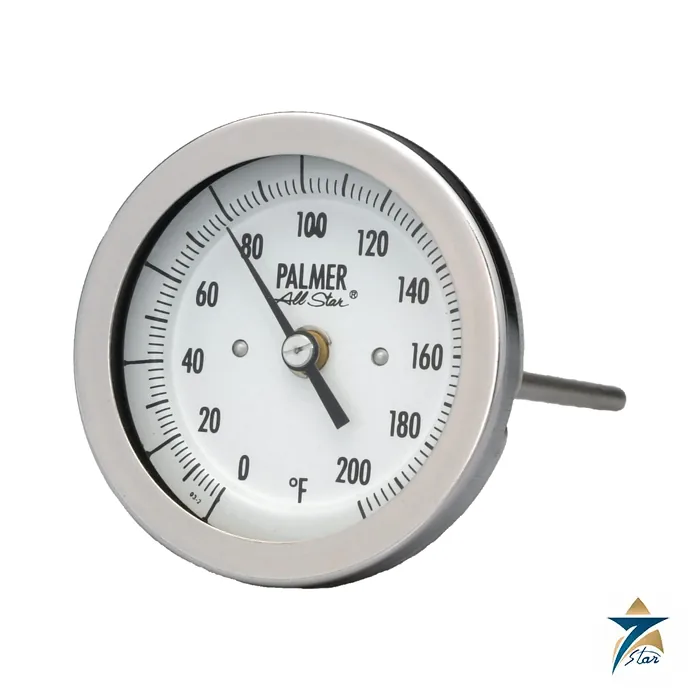

A stainless steel bimetal dial thermometer in 3 inch and 5 inch sizes

The Palmer Wahl All Star bimetal thermometer family covers models 3BC and 5BC (fixed centre back connected case), 3A and 5A (all-angle case) and the matching 3BCJ, 5BCJ, 3AJ and 5AJ variants that add an adjustable union fitting. The datasheet describes a polished 316 stainless steel case and bezel, a 304 stainless steel fitting and stem, and a hermetically sealed glass lens held by a cam-action bezel ring with a heat-resistant gasket.

A single helix bimetallic coil, located in the bottom 2.5 inches of the stem, turns the pointer. Ranges below 500 F use a silicone gel coated coil. The sealed case is intended to keep out moisture, so the dial stays clear of fogging or icing and the coil does not freeze up in extreme conditions, according to the datasheet.

Features

Anti-parallax deep-drawn dial in low-glare metal; black graduations and numerals on white with a tapered-tip black pointer on the same level as the graduations.
Built-in over-range protection that allows temporary swings of up to 50 percent of range without permanent damage; adjustable pointer for recalibration.
Accuracy class ASME B-40.3 Grade A, plus or minus 1 percent of full scale; the datasheet states that ambient temperature changes at the case do not affect accuracy.
Optional adjustable union fitting sets the stem to the full depth of the thermowell, which reduces the number of stem lengths held in stock.
Optional 316 stainless steel fitting and stem, which the datasheet recommends for deep water drilling and offshore rigs.
Optional Plexiglass or shatter-proof safety glass.

All Star specifications

Parameter	Specification
Models	3BC, 3BCJ, 5BC, 5BCJ, 3A, 3AJ, 5A, 5AJ
Case	Polished 316 stainless steel; 3 in (3-5/16 in, 84 mm actual) or 5 in (5-1/16 in, 129 mm actual); hermetically sealed
Sensing element	Single helix bimetallic coil in the bottom 2.5 in of the stem
Dial	Black on white, linear, anti-parallax
Lens	Glass; optional Plexiglass or shatter-proof safety glass
Fitting	304 stainless steel 7/8 in hex with 1/2 in NPT, or 304 SS adjustable union compression fitting; 316 SS optional
Stem	Polished 304 stainless steel, all welded; 316 SS optional
Standard stem lengths	2.5 in (63.5 mm) to 24 in (610 mm); special order to 60 in (1524 mm)
Minimum stem length	4 in on all angle models and 6 in on back connected models for the highest ranges; 6 in with adjustable union
Over-range	Up to 50 percent of range, temporary
Accuracy	ASME B-40.3 Grade A, plus or minus 1 percent of full scale
Continuous service	Recommended up to 800 F (427 C) on the highest range; intermittent up to 1000 F (500 C)
Datasheet date	September 2022

Order code and temperature ranges

The ordering guide has four steps: size and case style, stem length (2.5, 4, 6, 9, 12, 15, 18 or 24 inch, with 30 to 60 inch special order), temperature range and options. The datasheet example 5BCJ24-40/120F(SPG) is a 5 inch back connected case with adjustable union, 24 inch stem, -40 to 120 F range and shatter-proof glass. Options are (FS) 316 stainless steel fitting and stem, (PC) Plexiglass cover, (SPG) shatter-proof safety glass, and, not with the adjustable union, (1/4NPT), (3/8D), (3/8NPT), (7/8SN) and (1/2NPS) fittings.

F code	F range	F div	C code	C range	C div
-100/100F	-100 to 100 F	2 F	-50/50C	-50 to 50 C	1 C
-40/120F	-40 to 120 F	1 F	-50/100C	-50 to 100 C	1 C
0/200F	0 to 200 F	2 F	-20/120C	-20 to 120 C	1 C
0/250F	0 to 250 F	2 F	0/50C	0 to 50 C	0.5 C
25/125F	25 to 125 F	1 F	0/100C	0 to 100 C	1 C
50/300F	50 to 300 F	2 F	0/150C	0 to 150 C	1 C
50/400F	50 to 400 F	5 F	0/200C	0 to 200 C	2 C
50/500F	50 to 500 F	5 F	0/300C	0 to 300 C	5 C
150/750F	150 to 750 F	5 F	100/400C	100 to 400 C	5 C
200/1000F	200 to 1000 F	10 F	100/500C	100 to 500 C	5 C

Dual Fahrenheit and Celsius scales are listed for the 5 inch dial only:

Code	Range	Division
0/200F&C	0 to 200 F / -15 to 90 C	2 F / 1 C
0/250F&C	0 to 250 F / -20 to 120 C	2 F / 1 C
50/300F&C	50 to 300 F / 10 to 150 C	2 F / 1 C
50/400F&C	50 to 400 F / 10 to 200 C	5 F / 2 C
50/500F&C	50 to 500 F / 10 to 260 C	5 F / 2 C
150/750F&C	150 to 750 F / 65 to 400 C	10 F / 5 C
200/1000F&C	200 to 1000 F / 100 to 540 C	10 F / 5 C

Selection and installation

Choose the 5 inch dial when the instrument is read from a distance, and the 3 inch for compact skids.
Choose all-angle (A) when the head must be adjusted to the viewing angle, and fixed centre back connected (BC) for a straight panel or pipe installation.
Add the J adjustable union when stem length cannot be confirmed before ordering.
Keep the operating point in the middle of the scale and stay within the 50 percent over-range allowance only for short swings.
Use a thermowell sized to the stem for metal-to-metal tip contact, as the datasheet recommends.

Applications in Oman and the GCC

The datasheet lists chemical and petrochemical plants, compressor controls, deep water drilling, hazardous environments, offshore rigs, process engineering, pulp and paper, pneumatics, pump protection, shipping and water treatment systems. In the Gulf, the stainless case and the optional 316 stainless fitting suit coastal and offshore humidity, and the wide range selection covers chilled water, hot oil and compressor discharge points.

Selection and installation notes

A thermometer or temperature transmitter is selected from the range, the stem or bulb length, the connection and the ambient conditions. Fit it in a thermowell of the right bore and length so the sensing element reaches the flow, fill the well with heat-transfer paste where the maker advises, keep the cable or case clear of heat and vibration and check the reading against a reference instrument at commissioning and at regular intervals.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Palmer Wahl Instruments is a US maker of industrial temperature and pressure instruments based in Asheville, North Carolina. The company traces the Palmer name to Cincinnati, Ohio, in 1836 and Wahl Instruments to 1953; the two were combined in one Asheville facility.

Seven Star LLC is an independent supplier in Muscat. We list Palmer Wahl thermometers, calibrators and test instruments for maintenance and calibration teams in Oman and the GCC.

Palmer Wahl product series

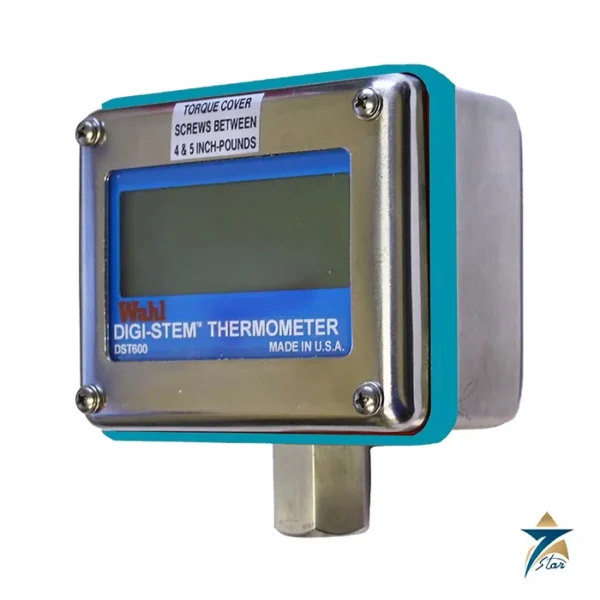

Thermometers include the 1050 direct-drive 5-inch dial thermometer, the All Star bimetal thermometers in 3 and 5 inch sizes, the 9AL and 9FL economy industrial thermometers and the DST600 and DST640 Digi-Stem RTD thermometers. The DHS520L Heat Spy is a high-temperature infrared thermometer.

Calibration and test equipment includes the TC622A pocket RTD calibrator, the C150 documenting multifunction calibrator, the P32 handheld process signal calibrator, the HSICBB-P portable black body for checking infrared thermometers and the DSPG digital pressure gauge data logger.

Where Palmer Wahl instruments are used

Temperature indication on tanks, pipes and process equipment, field calibration of loops and temperature transmitters, infrared temperature checks on furnaces and kilns, and pressure logging during tests.

Ordering Palmer Wahl instruments: what we need

Send the instrument family, range, stem or probe length, process connection, case style and any calibration certificate or mercury-free requirement. The datasheet ordering guides allow the full code to be confirmed before an offer is issued.

Browse Palmer Wahl products by category: Portable Test & Measurement, Temperature Instrumentation.

Frequently Asked Questions

What does the All Star model code mean?

The first digit is the dial size (3 or 5 inch), BC is a fixed centre back connected case, A is an all angle case and J adds an adjustable union fitting.

What accuracy does it have?

ASME B-40.3 Grade A, plus or minus 1 percent of full scale, according to the datasheet.

What stem lengths are available?

Standard lengths run from 2.5 inches (63.5 mm) to 24 inches (610 mm), with special order lengths up to 60 inches (1524 mm).

Can it survive over-range?

The datasheet says the protected design allows temporary swings of up to 50 percent of range without permanent damage.

Is Seven Star LLC a distributor of Palmer Wahl?

No. Seven Star LLC is an independent supplier in Muscat that sources genuine products on request; we do not claim any distributor status.
