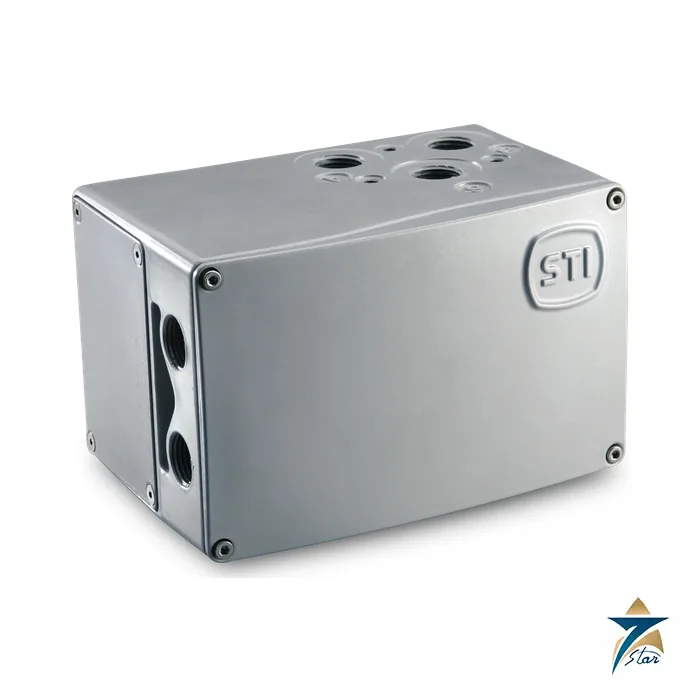

IMI STI FasTrak FT Smart Valve Positioner

Name: IMI STI FasTrak FT Smart Valve Positioner – Brochure & Quote
Brand: IMI STI
SKU: FasTrak

The IMI STI FasTrak (FT) smart positioner is a high-capacity, high-precision digital-pneumatic valve controller that replaces conventional positioners. Configuration and calibration are done with a HART device or by self-calibration, and it works with single and double acting actuators, with or without a spring, piston or diaphragm.

Seven Star LLC supplies IMI STI FasTrak positioners from Muscat and confirms the housing, Ex variant and actuator type before quoting.

High flow, self-calibration and robust housings

The design allows high-speed performance in large-volume actuators without extra amplification such as a booster or quick exhaust. Air capacity is up to 180 Nm3/h at 6 bar (Cv 2.3). Self-calibration works on double acting piston, diaphragm and rotary actuators with or without a spring. Patented adjustable independent control parameters are set for the opening and closing stroke. The positioner is not sensitive to radial and axial external loads caused by mounting and linkages.

IP66 protection and a dedicated exhaust protection system suit installation in harsh environments, including tropical rain, dust, sand and salt. Power comes from the 4-20 mA loop with HART communication, and a 4-20 mA position feedback, two configurable digital inputs for trips and two configurable digital outputs for limit switches or alarms are provided. Dedicated software (RCFT) sets, controls and monitors the positioner. Option Pack 1 adds valve signature and step response diagnostics, and Option Pack 2 adds stability control, soft approach to seat and frequency response analysis.

Technical specifications

Parameter	Specification
Power / signal	2-wire loop powered, minimum 3.5 mA, 12/30 Vdc; 4-20 mA with HART; configurable split range
Connections	Pneumatic 1/2 in. NPT female; signal and auxiliary 1/2 in. NPT (M20x1.5 on request)
Air supply	Free of oil, water and dust to ISO 8573-1 class 3; 2.5 to 10 bar; consumption 1.5 Nm3/h at 6 bar
Air capacity	Up to 180 Nm3/h at 6 bar (Cv 2.3)
Hysteresis plus deadband / repeatability	+/-0.15% / +/-0.15% (angle above 90 degrees, IEC 61514-2)
Sensitivity / linearity	+/-0.1% / +/-0.3%
Ambient temperature influence	0.3% for every 10 degC
Feedback angle of rotation	30 to 120 degrees (below 30 degrees with lower resolution)
Stroke speed	Adjustable 0 to 300 s, configurable for each direction
Characteristic	Linear, equal percentage, configurable
Operating temperature	-40 to +80 degC; -50 to +80 degC for CUTR
Protection / vibration	IP66, NEMA 4X; humidity to 100%; vibration to 2 g (ISA S75.13)
Materials	Aluminum; stainless steel feedback shaft; fully stainless steel 316 version
Weight	Aluminum Ex ia 3.25 kg, Ex d 4.11 kg; stainless steel 316 Ex ia 8.82 kg, Ex d 10.78 kg

Approvals, options and what to confirm

The brochure lists intrinsically safe (Ex ia) and explosion proof (Ex d [ia]) versions to ATEX, IECEx, GOST, SANS, INMETRO, ECASEx, AAA, ETL-C, CCoE, KOSHA, CCC, CU TR, CSA-US and UKCA. Options include a remote feedback sensor, universal linkage for linear long-stroke (70 to 1700 mm) or VDI/VDE 3845 rotary use, a lever for side yoke or top mounting, directly mounted gauges and lock-up valve, collected or silenced exhaust, low bleed and fail-in-place versions, a display with push buttons and a high-speed communication kit.

Send the housing material, Ex type and region, actuator type and stroke or rotation, fail action and supply pressure. Note that the SHP brochure describes the SHP as replacing the FT, so confirm availability and the correct successor with the manufacturer if you are specifying new.

Documents and quotation

To request a quotation for the FasTrak positioner, send Seven Star LLC the full model or order code, quantity, and any nameplate data from an existing unit that is being replaced or matched. Our Muscat team checks the request against the manufacturer document, which can be downloaded from this page, and replies with a formal quotation. Prices, stock and lead times are confirmed per inquiry.

Related products are listed in the valve positioners category.

IMI STI products listed

The range on this page covers:

SA/CL analog positioner, pneumatic or 4-20 mA electro-pneumatic

SHP and SHP-SIS smart positioners, the SIS version with partial stroke testing

FasTrak FT smart positioner and the 2130 limit switch

SC and SC/V linear pneumatic actuators for dampers and control valves

RTC and RTQ scotch yoke quarter-turn actuators

Ordering IMI STI actuators and positioners: what we need

Send the valve torque or thrust, stroke or rotation, supply pressure, fail-safe direction, ambient range and hazardous-area requirement. For positioners add the signal type, and for replacements a photo of the nameplate. The manufacturer's legal entity name, STI S.r.l., may appear on older documents.
