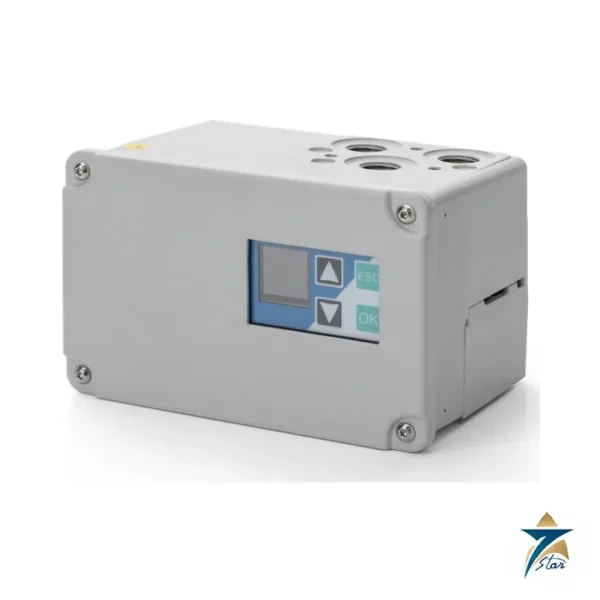

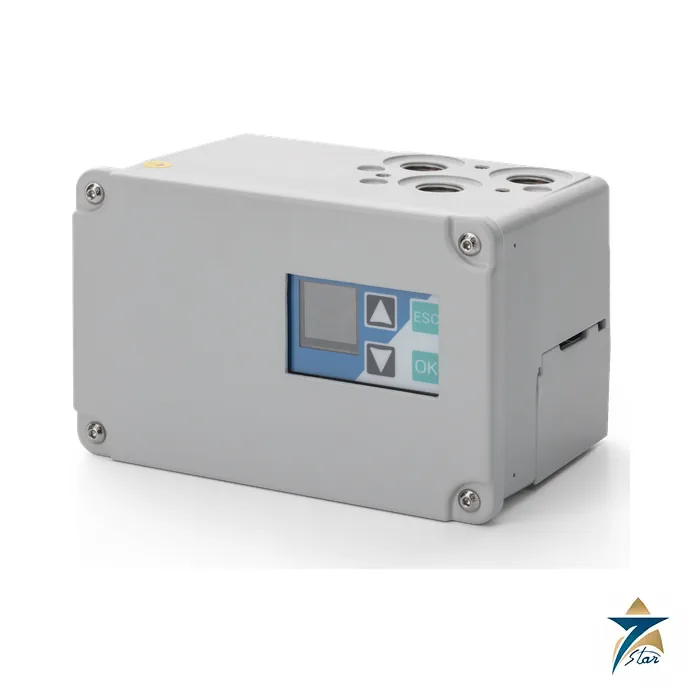

IMI STI SHP-SIS Safety Smart High-Performance Positioner

Name: IMI STI SHP-SIS Safety Smart Positioner – Brochure & Quote
Brand: IMI STI
SKU: SHP-SIS

Description

The IMI STI SHP-SIS is a smart, high-performance digital pneumatic positioner engineered for safety instrumented systems (SIS). It provides the safety function for blowdown and emergency shutdown valve actuation in critical on/off applications, and it includes built-in partial stroke testing (PST) so that functional safety requirements and preventive maintenance can be handled by one device.

Seven Star LLC supplies IMI STI safety positioners from Muscat and asks for the SIS loop details and certificate requirements before quoting.

A SIS positioner with partial stroke testing and a touch screen

A patented algorithm and flow system give ultra-fast stroking times, with supply and exhaust Cv of 2.3 in the high flow configuration (a low flow 0.3 option is mentioned). A tough touch screen gives complete access to configuration, calibration and PST, and NE107-compliant status alerts show on screen for tool-free troubleshooting. The travel sensor is a contactless 3D sensor with 360 degree reading, so no alignment or pre-defined position is needed at installation. The electronics are fully encapsulated and tested for high vibration.

Direct or reverse mode can be set without changing mechanical parts. In reverse mode the PST device does not impair valve functionality and the safety valve stays under control of the solenoid valve, which avoids unexpected trips from the test. Pressure, travel and time limits can abort a PST to protect the safety function, a TEST SOV feature is available, and the digital twin function offers seamless online swap-over and a complete digital inventory of configuration and performance history. The brochure states TUV certified safety performance, and that the positioner is certified to IEC 61508:2010 up to SIL 3 for electrical and pneumatic DETT.

Technical specifications

Parameter	Specification
Housing	Stainless steel ASTM A351 or low-copper aluminum EN AC 43500
Weight / size	Under 9 kg (stainless) or under 4 kg (aluminum); under 225 x 145 x 155 mm
Mounting	Fixing screws to VDE/VDI 3845 (NAMUR)
Connections	3 x 1/2 in. NPT pneumatic; electrical 3 x 1/2 in. NPT (Ex ia) or 1 x 1/2 in. NPT (Ex d)
Operating pressure	2.5 to 10.5 bar (150 psi); fail freeze 8 bar; natural gas 7 bar; design 15 bar
Air quality	ISO 8573-1 class 3 oil and class 3 dust; instrument air, natural gas, nitrogen, sweet dry gases
Flow	Supply Cv max 2.3, exhaust Cv max 2.3 (180 Nm3/h at 6 bar, 21 degC)
Communication	HART 7, 4-20 mA passive loop; two 24 V isolated digital inputs and outputs
Input voltage	10-30 V (Ex ia); 18-30 V (Ex d); 17-30 V (Ex ia fail freeze)
Performance (at 21 degC)	Hysteresis plus dead band +/-0.10%; repeatability +/-0.05%; sensitivity +/-0.10%; linearity +/-0.30%; quick action 100 ms
Temperature range	-55 to +85 degC; see Ex certificate for T4-T6
Protection	IP66; Type 4X for indoor (aluminum) and outdoor (stainless) use
Application	Fail safe (connection A vent, B pressurised)
Feedback	Contactless sensor into positioner; optional remote contactless sensor up to 20 m; linear magnet kit up to 100 mm (4 in.)

Selection notes for safety loops

Before ordering, confirm the SIL target and proof-test philosophy, whether the positioner is wired in direct or reverse PST arrangement with the solenoid valve, actuator type, stroke and single or double acting, the supply gas and pressure, Ex ia or Ex d, housing material and the certificate set. Safety figures such as failure rates and proof-test intervals are not in the brochure, so request the safety manual and certificate for the exact configuration, and ask the manufacturer for the application limits.

Documents and quotation

To request a quotation for the SHP-SIS positioner, send Seven Star LLC the full model or order code, quantity, and any nameplate data from an existing unit that is being replaced or matched. Our Muscat team checks the request against the manufacturer document, which can be downloaded from this page, and replies with a formal quotation. Prices, stock and lead times are confirmed per inquiry.

Standard (non-SIS) versions are covered in the valve positioners category.

Datasheets & Documents

Brochure IMI STI SHP-SIS Safety Smart High-Performance Positioner Brochure (07085.01/25en) Download
