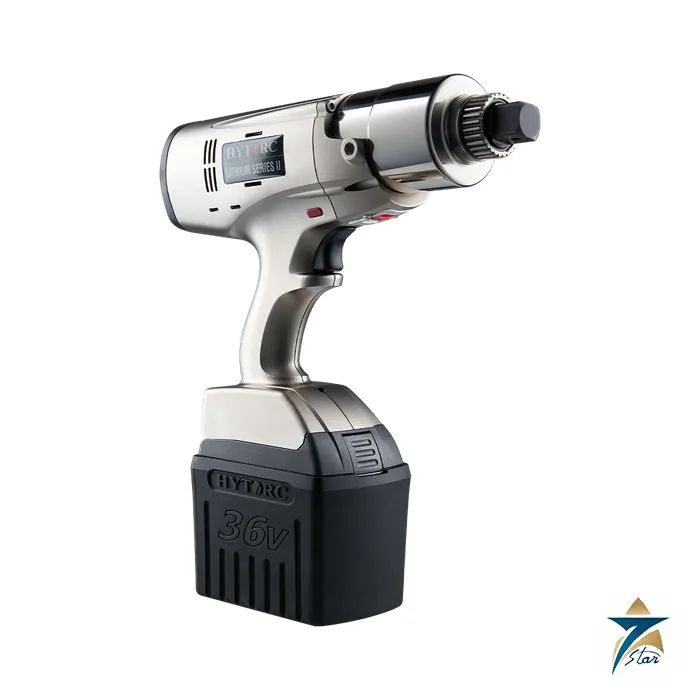

HYTORC LITHIUM SERIES II Cordless Electric Torque Tool

The HYTORC LITHIUM SERIES II (LST) is the manufacturer most advanced cordless electric torque tool, delivering up to 8,000 ft-lbs (10847 Nm) from a handheld unit powered by a 36 V battery. It targets heavy-duty bolting jobs where hydraulic pumps and hoses are inconvenient: elevated platforms, remote sites, tower and wind work, and shutdown tasks with many bolts spread over a large area. Seven Star LLC can quote the seven standard LST sizes.

Rundown mode, torque mode and data capture

The LST has two operating modes. In Rundown mode the nut is quickly brought to snug without a second tool, and in Torque mode the tool delivers the final torque to specification. The sales sheet lists the snug range for each size next to the torque range. Real-time documentation is available through the HYTORC Connect App on Bluetooth-equipped models or by USB, which currently supports only Windows, and the tool supports torque and angle operation, multiple user levels and firmware updates. An integrated work light illuminates the joint, and the nickel-plated aluminum housing is described as industrial grade.

Technical specifications

Sizes, torque and snug ranges

Values are from the manufacturer sales sheet dated 2026. Weight is with battery.

Selecting an LST size

Choose the drive size and the model by the final torque, keeping the target inside the middle of the range, and check the dimensions against the access around the joint: the tool is longer than a hydraulic wrench and needs a reaction arm or washer reaction. The tool works with the HYTORC Washer, the HYTORC Nut and conventional reaction arms. Battery life depends on torque, bolt count and temperature, so plan spare packs on long jobs. Lithium-ion batteries have transport and storage rules, and the manufacturer publishes a battery safety sheet that should be read before use. Electric torque tools do not replace a calibration program: keep the calibration certificate and re-verify at the interval required by your quality plan.

How the HYTORC LST works

A battery powers an electric motor and a gear train. The tool turns a square drive that carries a socket onto the nut. A reaction arm presses on a nearby fixed point, so the user does not feel the torque. In Rundown mode the tool runs the nut down to snug at higher speed. In Torque mode it slows down and applies the final torque to the setting. The LST therefore needs no pump and no hoses.

Where the LST is used

• Elevated platforms
• Remote sites
• Tower and wind work
• Plant shutdowns with many bolts
• Flange and structural bolting

Selection checklist for the LST

• Model: LST-0250 to LST-8000
• Torque range for the bolts
• Square drive size
• Snug range for rundown
• Weight with battery
• Bluetooth model for data capture
• Socket and reaction arm
• Calibration needs

Installation, commissioning and maintenance notes for the LST

Charge both batteries before the job. Fit the socket and the reaction arm for the bolt layout. Set the torque and check the setting against the bolt table. Keep hands clear of the reaction point. Store the tool in its case, and send it for calibration at the planned interval.

Requesting a quotation for the HYTORC LST

Please send the model, the bolt sizes, the torque and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

LST models

The seven models are LST-0250, LST-0700, LST-1200, LST-2000, LST-3000, LST-5000 and LST-8000.

LST torque range

The torque range is 34 to 10847 Nm, which is 25 to 8,000 ft-lbs.

LST square drive

The drive sizes are 1/2, 3/4, 1 and 1-1/2 inch.

LST battery

The tool runs on a 36 V lithium-ion pack. The kit holds two packs and a charging system.

LST data capture

Bluetooth models send data to the HYTORC Connect App. The USB link works with Windows.

LST housing and light

The housing is nickel-plated aluminum, and an integrated work light shows the joint.

LST kit contents

The kit has the tool, reaction arm, charger, case, two batteries, side handle, calibration certificate and manual.

Tool records for the LST

Record the model, the serial number and the calibration date.

Choosing the right LST size

Choose the model whose torque range holds the bolt torque near the middle, and check the weight for work at height.

Documents and quotation

The sales sheet is attached; the manufacturer also publishes the basic operations manual and a user interface guide. For a quotation, please state the torque range, drive size, whether Bluetooth data capture is needed and the number of batteries. Seven Star LLC is an independent supplier. Related equipment is listed in Material Handling and Lifting Equipment.
