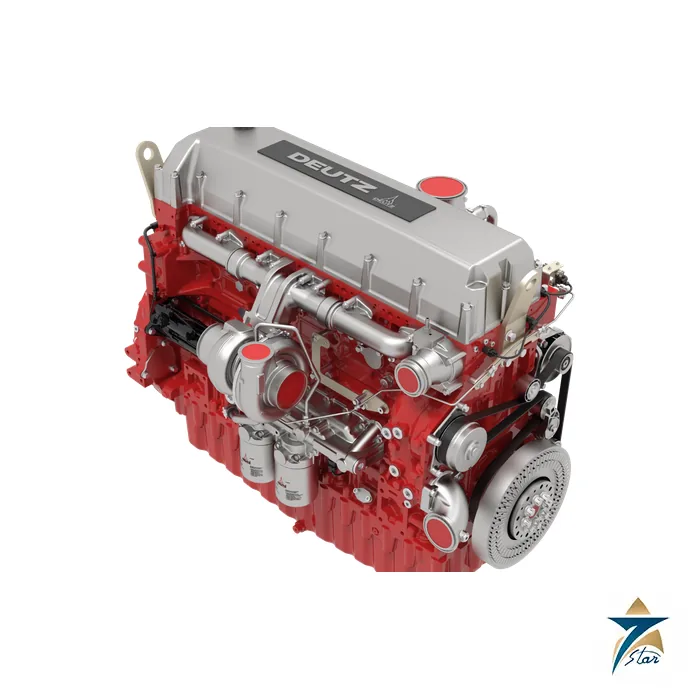

DEUTZ TCD 18.0 L6 Diesel Engine
Overview
The DEUTZ TCD 18.0 is the largest inline six-cylinder diesel in the current DEUTZ range, a turbocharged and charge-air-cooled engine with 18.0 litres of displacement and a rated output band of 565 to 623 kW according to ISO 14396. DEUTZ AG in Cologne positions it for heavy mobile machinery that needs sustained high power, and its torque peak of 3650 Nm gives large machines the pulling force that used to require a much bigger and heavier powertrain. The engine is certified for EU Stage V and US Tier 4 final, which makes it a current-generation choice for equipment that will be exported or rebuilt to modern emission rules.
Seven Star LLC supplies the DEUTZ TCD 18.0 to equipment builders, fleet owners and maintenance contractors in Oman and the wider GCC, with engineering support in Muscat. We work from the manufacturer datasheet to confirm the rating, emission version and accessories before an order is placed, because a machine intended for a regulated export market needs a different exhaust package from one that will work only in the Sultanate.
Working Principle of the DEUTZ TCD 18.0
The DEUTZ TCD 18.0 is a water-cooled four-stroke diesel with a common rail injection system and an electronic engine control unit that DEUTZ describes as intelligently linked to the drive management of the machine. In a common rail system the high pressure is generated independently of the engine crank angle, so the control unit can decide when and how often each injector fires. That freedom lets the engine shape combustion for low fuel consumption at part load while still delivering full power when the operator asks for it.
Intake air is compressed by a turbocharger and cooled in a charge air cooler before it enters the cylinders. Cooler, denser air allows more fuel to be burned cleanly in each stroke, and it is the reason the engine can hold its maximum torque of 3650 Nm across a plateau from 1300 to 1500 rpm. For higher regulated markets DEUTZ states that the engine is expected to run without exhaust gas recirculation and to meet Stage V and Tier 4 limits with a selective catalytic reduction system; for lower regulated markets a version without exhaust aftertreatment is available as an option.
Engineering Design
The datasheet for the DEUTZ TCD 18.0 describes a six-cylinder in-line block with a bore of 148 mm and a stroke of 174 mm, a maximum nominal speed of 1900 rpm and a minimum idling speed of only 600 rpm. Weight according to DIN 70020 Part 7A is 1763 kg. The basic engine measures 1546 mm in length (dimension A), 976 mm (B) and 1284 mm (C), and the SCR module is listed with a diameter of 724 mm and a length of 1110 mm. DEUTZ highlights that the size and design of the engine stay identical when moving from one emission stage to the next, so an OEM does not have to redesign its engine bay when regulations change.
Service and installation features are part of the design brief. DEUTZ notes long oil change intervals, easy changing of the engine fluids, strong cold starting performance under extreme conditions and a compact layout with customer-friendly accessories. A modular power pack version, ready for installation, is offered for builders who prefer to receive the engine together with its cooling and exhaust modules.
Key Features
The following features of the DEUTZ TCD 18.0 are taken from the manufacturer documentation.
- Rated power from 565 kW to 623 kW at 1700 to 1900 rpm, measured according to ISO 14396.
- Maximum torque of 3650 Nm between 1300 and 1500 rpm for strong low-speed pulling power.
- Displacement of 18.0 litres from six in-line cylinders with turbocharging and charge air cooling.
- Common rail injection with electronic engine control that is linked to the machine drive management.
- Certified for EU Stage V and US Tier 4 final, with a SCR based aftertreatment system.
- Emission downgrade version without aftertreatment for less regulated markets.
- Identical engine size and installation interfaces across emission stages.
- Modular, compact power pack available as a ready-to-install package.
Industrial Applications
Engines in the 600 kW class are normally specified for large mobile and heavy industrial equipment, and buyers in Oman typically evaluate a unit such as the DEUTZ TCD 18.0 for heavy wheel loaders, mining and quarry machinery, large crushers and screening plants, and other drives that must run for long shifts in high ambient temperatures around Sohar, Duqm and the interior mining areas. The wide torque plateau lets a machine keep working speed when the load changes, which reduces gear changes and fuel use over a shift. Teams that already maintain large-frame diesel engines such as the Wartsila 20 marine diesel generating set engine will recognise the importance of matching cooling capacity and air filtration to desert conditions.
Seven Star LLC supplies the DEUTZ TCD 18.0 alongside engine controllers and generator-set equipment. A drive package may use a protection and control device such as the DSE7320 auto mains failure generator controller, and engines of different sizes on one site can be compared with the Perkins 2506C-E15TAG2 diesel engine when a project team reviews alternatives. Application suitability for any specific machine should always be confirmed against the DEUTZ documentation and the intended emission configuration.
Choosing Between Emission Versions
The first decision when ordering the DEUTZ TCD 18.0 is the emission configuration. The Stage V and Tier 4 version carries the SCR module and is the right choice for equipment destined for regulated markets or for operators who want the lowest nitrogen oxide output. The emission downgrade version without aftertreatment reduces installation complexity and removes the need for a urea supply, but it is intended only for markets in which the regulations allow it. For the DEUTZ TCD 18.0, confirm the power rating, the speed at which that power is needed and the available space for the exhaust module before requesting a quotation.
Technical Specifications
The values below are taken from the DEUTZ AG product datasheet for the DEUTZ TCD 18.0 (copyright notice 2021–2023).
| Parameter | Specification |
|---|---|
| Model | DEUTZ TCD 18.0 L6 |
| Number of cylinders | 6, in-line |
| Displacement | 18.0 l |
| Bore / stroke | 148 mm / 174 mm |
| Max. nominal speed | 1900 min-1 |
| Aspiration | Turbocharger with charge air cooler |
| Power output (ISO 14396) | 565 – 623 kW at 1700 – 1900 min-1 |
| Max. torque | 3650 Nm at 1300 – 1500 min-1 |
| Min. idling speed | 600 min-1 |
| Weight (DIN 70020 Part 7A) | 1763 kg |
| Dimensions A / B / C | 1546 mm / 976 mm / 1284 mm |
| SCR module (D / L) | 724 mm / 1110 mm |
| Emission standards | EU Stage V, US Tier 4 final, CN IV; emission downgrade version available |
How to Order
To request a formal quotation for the DEUTZ TCD 18.0, send the machine type, required power rating, speed range and emission standard to the Seven Star LLC engineering team in Muscat. We confirm the selection against the DEUTZ datasheet, which can be downloaded from this page, and advise on regional availability for projects in Oman and across the GCC.
- Datasheet DEUTZ TCD 18.0 L6 Product Datasheet (DEUTZ AG) Download
DEUTZ engine families listed here
DEUTZ engine names can be read directly. In TCD 6.1 L6, TCD stands for a turbocharged diesel with charge air cooling, 6.1 is the displacement in liters and L6 means six cylinders in line. A V marks a vee engine, as in TCD 12.0 V6 and TCD 16.0 V8. The engines listed are:- Compact engines: TCD 2.2 L3, TCD 2.9 L4, TCD 3.6 L4
- Mid-range engines: TCD 4.1 L4, TCD 6.1 L6, TCD 7.8 L6
- Large engines: TCD 12.0 V6, TCD 16.0 V8, TCD 18.0 L6
- G 2.9 L4 for LPG and gasoline
