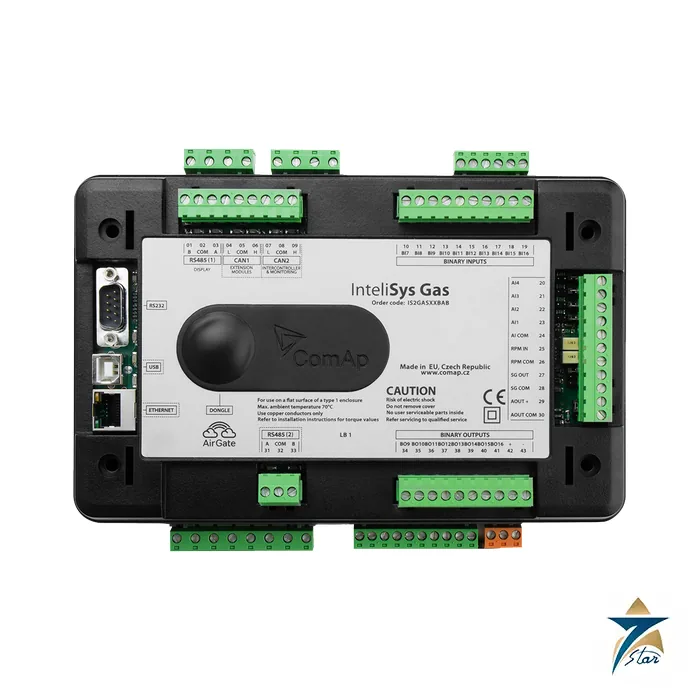

ComAp InteliSys Gas Gen-Set Controller for Gas Applications

A gas gen-set controller built for CHP and grid-code compliance

The ComAp InteliSys Gas (order code IS2GASXXBAB) is described in its datasheet as an industrial-grade controller for power generation applications, with preconfigured functions, scalable and configurable I/O, broad communication capabilities and easily changed software. It targets demanding gas applications such as CHP plants.

Key features from the datasheet: a large built-in PLC interpreter, SIL2 certification for selected channels, compliance with grid codes including EN 50549-1 and -2:2019 (covering VDE-AR-N 4105:2018, VDE-AR-N 4110:2018 and UK G99) and IEEE 1547:2018, automatic synchronisation and power control via governor or ECU, and plug-and-play support for the ComAp InteliVision display family. Modes include baseload, import/export, TempByPower, peak shaving and voltage and power-factor control. The datasheet issue date is 8/14/2023 (hardware 2.0, software 1.10.0).

Technical specifications

Extension modules and displays

Extension modules listed are Inteli IO8/8, AIN8, AIN8TC, AIO9/1, IS-AIN8, IGS-PTM, IGL-RA15 (EM2IGLRABAA), I-AOUT8, InternetBridge-NT and I-LB+. Related products include the InteliVision 5, 5 CAN, 8, 12Touch and 18Touch displays, the ECON-4 governor and the I-Step stepper driver module.

Specifying notes

For a gas plant give the engine make and ECU, the grid code that applies at the connection point, whether SIL2 channels are required, and the display. A related published gas controller is the InteliGen4 200; more are under Diesel Generator Spare Parts.

The datasheet also lists event-based and PreMortem history with a customer-selectable list of stored values, a real time clock and statistic values, overspeed and emergency stop detection, and a power management function with a mode of effective engine run in network parallel operation. Voltage and power-factor control is provided through an AVR bias output, and automatic synchronisation and power control act through the speed governor or the ECU. Event history and statistics help when commissioning a CHP plant against grid-operator requirements.

How the ComAp InteliSys Gas IS2GASXXBAB controller works

A genset controller measures the voltage and current of the generator and the mains or bus, and uses these values to start and stop the engine, synchronise the generator, share load and protect the set. The InteliSys Gas reads the electrical signals, and it connects to the engine through binary and analog inputs and outputs and through its communication ports. It controls power through the governor or the ECU, adjusts voltage and power factor, and runs the different modes such as baseload, import and export, TempByPower and peak shaving. A built-in PLC interpreter lets the integrator add custom logic without extra hardware.

Where the IS2GASXXBAB is used

• Combined heat and power plants with gas engines.
• Gas generator sets operating in parallel with the grid.
• Island and multi-set power stations that need synchronisation and load sharing.
• Sites that must follow a grid code such as EN 50549 or IEEE 1547.

Selection checklist for the IS2GASXXBAB

• Engine type, make and ECU, for the correct communication and control interface.
• Grid code that applies, such as EN 50549-1 and -2, VDE-AR-N 4105, VDE-AR-N 4110, UK G99 or IEEE 1547.
• Supply voltage of 8 to 36 V DC and an ambient range of -40 to +70 degrees C.
• Voltage and current input ratings, with 1 A or 5 A current inputs.
• Binary and analog inputs and outputs, against the count the project needs.
• Communication needs: RS232, RS485, USB, Ethernet with Modbus TCP, and CAN.
• Extension modules and the display, such as the InteliVision family.
• SIL2 certification for selected channels, where the safety concept requires it.

Installation, commissioning and maintenance notes

Mount the controller in the panel with the display, and wire the voltage and current transformers with the correct polarity and ratios. Configure the engine type, protections and set points in the configuration software, and test each protection by simulation before running the engine. Check the synchronisation and power control step by step, and record the final configuration. Keep the firmware version and the configuration file with the project documents.

Requesting a quotation for the ComAp InteliSys Gas IS2GASXXBAB

Send the engine make and ECU, grid code, the number of sets, extension modules and display. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

Protections and grid code functions

The datasheet lists many ANSI protections such as reverse power, overcurrent, over and under voltage and frequency, and loss of mains. Confirm which of these the grid operator requires and set them in the configuration.

Extension modules and displays

Extension modules add inputs and outputs, analog values and thermocouple inputs, and the InteliVision displays give the operator a local screen. Choose them from the list in the datasheet according to the project requirements.

Datasheet issue and version

The datasheet for this order code is dated 14 August 2023 and covers hardware 2.0 with software 1.10.0. Ask for the current datasheet at the time of ordering, and check that the firmware and configuration software versions are compatible.

Documents and quotation

The ComAp datasheet is attached. Seven Star LLC supplies ComAp controllers on request; confirm the firmware version and the grid-code certification needed for the site before ordering.
