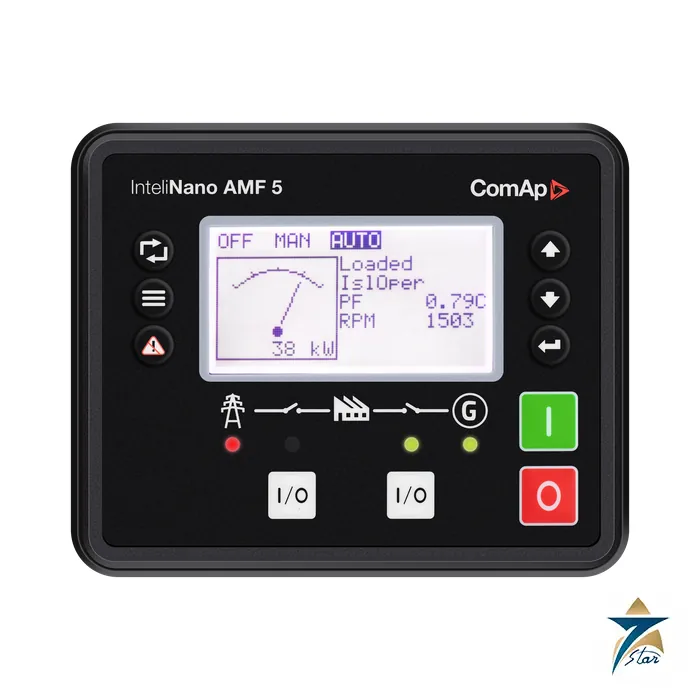

ComAp InteliNano AMF 5 Compact Single Gen-Set Controller

A small-footprint controller for 118 x 92 mm door cut-outs

The ComAp InteliNano AMF 5 is the compact member of the ComAp single gen-set family, built for stand-by and prime-power applications where panel space is tight. It combines Auto Mains Failure, manual or remote start and stop in one unit, with a large backlit graphic display, full three-phase voltage and current measurement and true RMS accuracy.

Configuration, monitoring and control run through one PC tool, locally over USB-C or remotely through AirGate 2.0, WebSupervisor and InteliSCADA. The controller supports engine ECUs on Tier 4 Final and Stage V engines, offers a low-power mode, and stores up to 100 records in its history log. Two languages sit in the controller, and a translator function is included.

Technical specifications

Accessories and modules

Plug-in modules are supported on controller hardware version 2.0 or higher.

Features for small gensets

The controller has an emergency-stop terminal that supplies binary outputs 1 and 2, a D+ charge-fail input, a magnetic pick-up input up to 10 kHz, user setpoints and protections, a multi-purpose scheduler and maintenance timer, user access management and Modbus register mapping. Geo-fencing needs the 4G-GPS module. Remote monitoring through Ethernet or 4G is possible with the plug-in modules. The unit has a low-noise EMC design, is individually calibrated and checked, keeps time with a battery-backed real-time clock and full calendar, and takes power over USB-C for configuration and firmware update.

Specifying checks

Confirm the panel cut-out (118 x 92 mm), the final depth with the plug-in module (43.8 to 62 mm) and IP rating, since IP65 needs the gasket kit. The datasheet counts analogue inputs differently in the feature list and technical table, so check the sensor count against the full datasheet.

How the ComAp InteliNano AMF 5 IN2AMF5XBAA works

The InteliNano is a small controller for one gen-set. In the AMF mode it watches the mains. When the mains fails, it starts the engine, checks the generator output, closes the generator breaker and takes the load. When the mains comes back, it changes the load back and stops the engine. In the manual or remote mode, an operator or a remote system starts and stops the set.

Where the IN2AMF5XBAA is used

• Small standby generators
• Prime-power sets with limited panel space
• Remote sites using AirGate or WebSupervisor
• Panels with 118 by 92 mm cut-outs
• Engines with Tier 4 Final and Stage V controllers

Selection checklist for the IN2AMF5XBAA

• Order code IN2AMF5XBAANP or IN2AMF5XBAA
• Power supply of 8 to 36 V DC
• Generator and mains voltage range
• Current transformer ratio, 1 A or 5 A
• Binary input and output count
• Engine link over J1939
• Plug-in module for the single slot
• IP65 gasket if the panel needs it

Installation, commissioning and maintenance notes for the IN2AMF5XBAA

Cut the panel to 118 by 92 mm and fit the optional gasket for IP65. Fuse the supply at 2 A. Wire the voltage inputs and the current transformers, then the engine and breaker outputs. Connect the PC by the USB-C port to set up the unit. Test the start sequence with the breakers open before a live transfer.

Requesting a quotation for the ComAp IN2AMF5XBAA

Please send the order code, the gasket and module needs, and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

IN2AMF5XBAA display

The graphic monochrome display is backlit, 3.2 inches, with 132 by 64 pixels.

IN2AMF5XBAA protection degree

The front panel is IP50, and IP65 with the optional gasket.

IN2AMF5XBAA temperature and altitude

Operation runs from minus 20 to plus 70 degrees C and up to 5000 m, with derating above 2000 m.

IN2AMF5XBAA communications

The list includes USB-C, CAN, Modbus RTU and J1939.

IN2AMF5XBAA history log

The history log holds up to 100 records.

IN2AMF5XBAA accessories

The IP65 front gasket is sold singly or in packs of 60. Modules listed are RS232-485, 4G and GPS and Ethernet.

Controller records for the IN2AMF5XBAA

Record the firmware, the setpoints and the saved configuration file.

Choosing the right IN2AMF5XBAA module

Choose the 4G and GPS module for remote sites and the Ethernet module for AirGate links.

Documents and quotation

Seven Star LLC supplies ComAp controllers against your panel and engine specification. The datasheet is attached. Send the engine make and ECU, generator CT ratio, supply voltage and communication needs. See Diesel Generator Spare Parts for related parts, or compare the larger ComAp InteliLite 4 AMF 25 controller. Confirm the hardware and software version before ordering.

The datasheet lists EN 61000-6-2, EN 61000-6-4, EN 61010-1, EN 61326-1 and ULC 6200 among its standards, with humidity to 95 percent non-condensing, a maximum operating altitude of 5000 m with derating over 2000 m, and vibration of 5-25 Hz at 1.6 mm and 25-100 Hz at 400 m/s2.
