Brand: ComAp
ComAp InteliLite 4 AMF 9 Compact Gen-Set Controller
Description
A smaller AMF controller for compact generator panels
The ComAp InteliLite 4 AMF 9 brings the InteliLite 4 feature set to smaller gen-sets and tighter control panels. It is built for stand-by and prime-power sets and supports three applications on one hardware platform: AMF (the default), MRS and Engine. Compared with the AMF 25 it has a smaller panel cutout, one plug-in slot instead of two and support for up to two extension CAN modules instead of five.
The controller reads three-phase generator and mains voltage, generator current and a magnetic pickup, and talks to J1939 engine ECUs. ComAp states that Stage V and Tier 4 Final operation is supported by default, and that the platform is designed to the relevant requirements of ISA 62443 levels 2 to 3.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | ComAp, InteliLite 4 |
| Order code | IL4AMF9XBAA |
| Applications | AMF (default), MRS, Engine |
| Power supply | 8 to 36 V DC; 2.5 W without modules; fuse 4 A without binary output load |
| Display | Monochromatic 3.2 in, 132 x 64 px |
| Voltage inputs | Generator and mains, 3 phase-neutral; 10-277 V AC / 10-480 V AC (EU), 10-346 V AC / 10-600 V AC (US/Canada) |
| Frequency | 30-70 Hz, accuracy 0.1 Hz |
| Current input | 3-phase generator current, 5 A range, max 10 A, input impedance below 0.1 Ω |
| Binary inputs | 8; closed contact 0-2 V DC, open contact 6-36 V DC |
| Binary outputs | 8; BO1 and BO2 5 A at 60 °C and 4 A at 70 °C; BO3-8 0.5 A; switching to positive supply |
| Analog inputs | 3, switchable: 0-2500 Ω, 0-10 V or 0-20 mA |
| Communications | USB device, CAN (250 / 50 kbps), Modbus RTU/TCP, SNMP v1/v2c/v3, J1939 |
| Event history | Up to 150 records including user logins and configuration changes |
| Operating temperature | -20 to +70 °C; storage -30 to +80 °C |
| Protection | IP65 front panel; IP20 back side |
| Panel cutout | 172 x 112 mm |
| Standards listed | EN 61000-6-2, EN 61000-6-4, EN 61010-1, EN 61326-1, EN 60529, ULC 6200:2019 (R2025) |
Extending the AMF 9
The single plug-in slot accepts one of four modules: CM-RS232-485 for RS232 and RS485 (CM223248XBX), CM2-4G-GPS for 4G and GPS (CM24GGPSXBX), CM3-Ethernet (CM3ETHERXBX) or EM-BIO8-EFCP for eight additional binary inputs or outputs (EM2BIO8EXBX). The depth of the controller varies with the module, between 41 mm and 56 mm, and RS232 connectors need about 60 mm more behind the panel.
Additional I/O can be added over CAN with Inteli AIN8, Inteli IO8/8, IGS-PTM, Inteli AIN8TC and Inteli AIO9/1 modules, or an IGL-RA15 remote annunciator with 15 LEDs. Configuration, cloning and monitoring use ComAp tools such as InteliConfig and WebSupervisor.
Selecting an InteliLite 4 and what to confirm
Pick the AMF 9 where the panel is small and one communication module and a handful of extra I/O points are enough. If a gen-set needs both a 4G module and an extra binary I/O module, or more CAN modules, the two-slot AMF 20 or AMF 25 is the safer choice. Confirm the engine ECU and its J1939 messages, the AVR and governor interface, and the breaker scheme before ordering. Send the full order code with the quotation request.
| Model | Order code | Binary in / out | Analog inputs | Plug-in slots | CAN modules |
|---|---|---|---|---|---|
| InteliLite 4 AMF 9 (this page) | IL4AMF9XBAA | 8 / 8 | 3 | 1 | up to 2 |
| InteliLite 4 AMF 20 | IL4AMF20BAA | 6 / 6 | 3 | 2 | up to 5 |

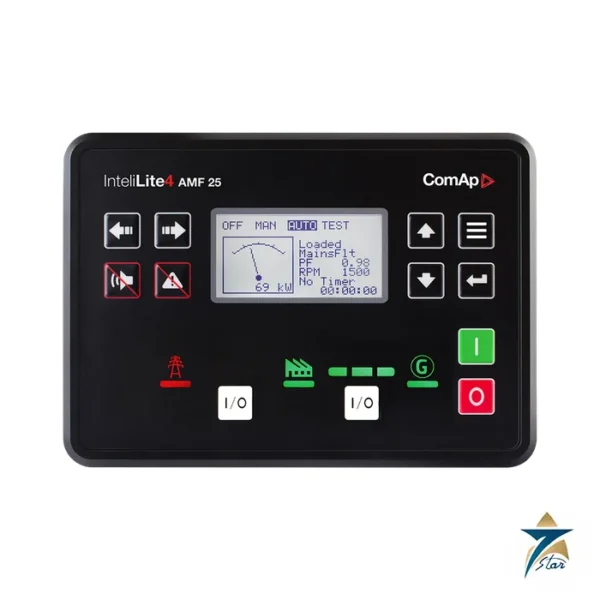

| InteliLite 4 AMF 25 | IL4AMF25BAA / BLA | 8 / 8 | 4 | 2 | up to 5 |
Documents and quotation
The ComAp datasheet is attached. For a quotation, state the order code, quantity and the engine and alternator data. Other gen-set controllers are listed under Diesel Generator Spare Parts.
Datasheets & Documents
- Datasheet ComAp InteliLite 4 AMF 9 datasheet (EN) Download
Reviews (0)
About brand
ComAp is a Czech manufacturer of control systems for gen-sets and other power generation equipment, founded by three friends in 1991 and headquartered in Prague. Seven Star LLC, an independent supplier in Muscat, quotes ComAp InteliLite, InteliGen and InteliSys controllers for standby generators, paralleling plants and gas gen-set projects.
ComAp gen-set controllers
The ComAp range covers single gen-set controllers such as InteliLite 4, paralleling controllers such as InteliGen and InteliSys, engine controllers, microgrid and battery storage controllers, remote displays, communication modules and the WebSupervisor monitoring tool. ComAp datasheets give the order code, the supported plug-in modules and the extension modules for each controller.
Ordering ComAp controllers
Send the full order code, including any suffix for a low-temperature version, together with the engine make, the AVR and governor type and the communication module required. Each ComAp page here links the manufacturer datasheet so the selection can be checked before a quotation is issued.
Related products
Frequently Asked Questions
Which applications does the AMF 9 support?
The datasheet lists three: AMF for stand-by, MRS for prime power, and Engine control, all on the same hardware.
How many plug-in modules can the AMF 9 take?

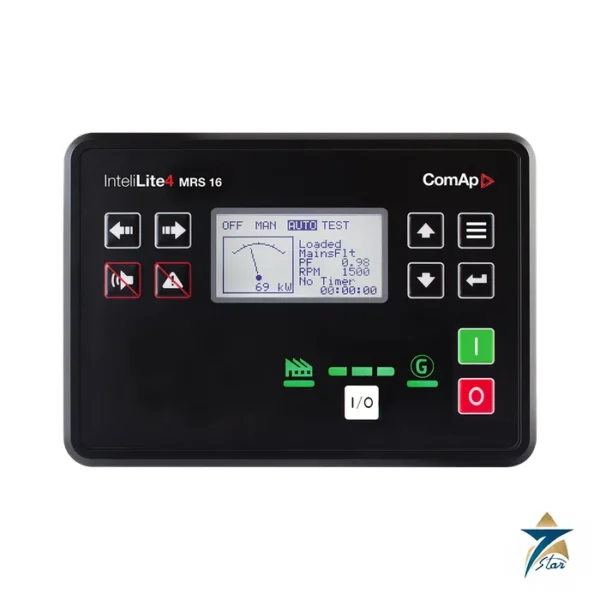

One. The AMF 20, AMF 25 and MRS 16 have two plug-in slots.
What is the panel cutout?
172 x 112 mm, using the holders supplied with the controller. The final depth depends on the plug-in module fitted.
Does it have a USB host port?
The datasheet lists a non-isolated USB device port; the AMF 25 and MRS 16 list a USB host port as well.
What approvals and standards does ComAp list?
EN 61000-6-2, EN 61000-6-4, EN 61010-1, EN 61326-1, EN 60529 and ULC 6200:2019 (R2025), among the standards printed in the datasheet.
