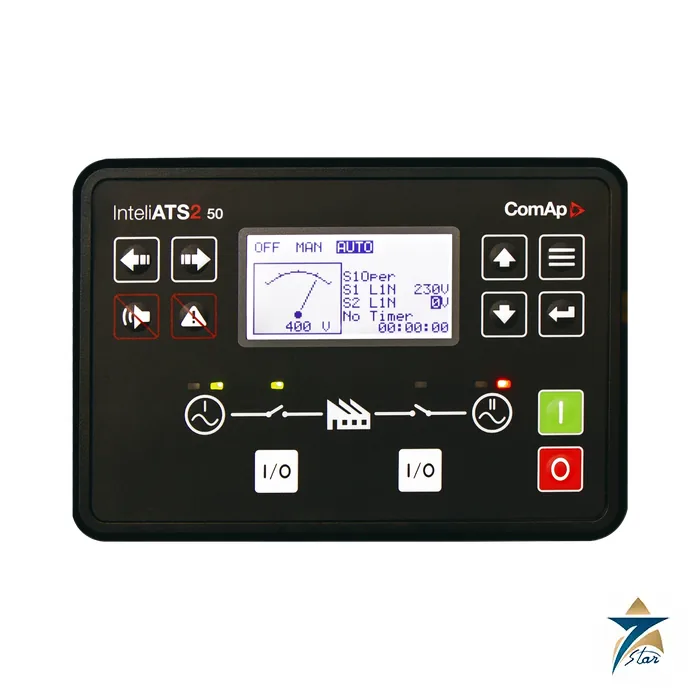

ComAp InteliATS2 50 Automatic Transfer Switch Controller

Source-to-source transfer control for stand-by and prime power

The ComAp InteliATS2 50 is an automatic transfer switch controller for stand-by and prime-power applications. It monitors two three-phase sources, S1 and S2, and decides which one feeds the load. It handles mains-to-mains, mains-to-gen and gen-gen configurations, so it suits transfer panels between a utility feed and a generator, between two utility feeders or between two generators.

The 50 is the compact model in the InteliATS2 family, with a 3.2 inch monochrome display, six binary inputs and six binary outputs, true RMS voltage measurement and a cut-out of 172 x 112 mm. It features an all-in-one PC tool for configuration, monitoring and control, power over USB for configuration, and remote communication through AirGate 2.0, WebSupervisor and InteliSCADA.

Technical specifications

Plug-in modules

The controller has one slot for a plug-in module. Active SMS and e-mail, a firewall and configuration lock are among the listed features. The history log holds up to 150 records, five languages plus a translator are available, internet access uses Ethernet or 4G through the plug-in module, and cyber security improvements include a firewall.

Functions

Elevator switch and geo-fencing are listed, together with a multi-purpose scheduler, user access management, Modbus register mapping, emulation tool support and a configuration lock. ANSI functions include undervoltage and overvoltage, voltage unbalance, reclosing, breaker failure, over and under frequency and auto selective control and transfer.

Selection notes

An ATS controller does not supply the switch itself. The controller drives the contactors or breakers of the transfer panel, so confirm the mechanical interlock and the signal wiring with the switchgear builder. Compare it with the other InteliATS2 models in the family, and with a genset controller such as the ComAp InteliLite 4 AMF 25 controller if the set itself must be started automatically.

How the ComAp InteliATS2 50 IA250XXXBAA works

The controller watches two power sources at the same time. It measures the voltage and the frequency of source S1 and of source S2. When the preferred source fails or drifts out of limits, it starts the timer, signals a generator to start if needed, and then drives the transfer switch to the other source. When the preferred source returns and is stable, it can switch the load back. Timers and set limits decide how fast and when this happens.

Where the InteliATS2 50 IA250XXXBAA is used

• Mains to generator transfer panels
• Mains to mains feeders
• Generator to generator transfer
• Stand-by power systems
• Prime power sites

Selection checklist for the InteliATS2 50 IA250XXXBAA

• Order code IA250XXXBAA
• Source configuration: mains or generator
• Voltage range of 10 to 480 V AC
• Supply of 8 to 36 V DC
• Binary inputs and outputs
• Plug-in module for communication
• Panel cut-out of 172 by 112 mm
• Remote monitoring needs

Installation, commissioning and maintenance notes for the IA250XXXBAA

Fit the controller into the panel cut-out and wire the voltage inputs of both sources through proper fuses. Wire the switch control outputs and status inputs. Configure the setpoints on a PC through the USB port. Test the transfer under controlled conditions before live use, and check the history log after any event.

Requesting a quotation for the ComAp InteliATS2 50 IA250XXXBAA

Please send the order code IA250XXXBAA, the plug-in modules, the voltage and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

IA250XXXBAA display and I/O

The display is monochrome, 3.2 inch. The unit has six binary inputs and six binary outputs.

IA250XXXBAA measurement

Voltage is measured on both sources with 1 percent accuracy and a 30 to 70 Hz range.

IA250XXXBAA communications

A USB port is built in. One slot takes a plug-in module for RS232, RS485, 4G or Ethernet.

IA250XXXBAA history and languages

The history log holds up to 150 records. Five languages are available in the controller.

IA250XXXBAA protection and temperature

The front panel is IP65. The operating range is minus 20 to plus 70 degrees C.

Controller records for the IA250XXXBAA

Save the configuration file and the firmware version for each panel.

Choosing the right IA250XXXBAA module

Choose the plug-in module from the network the site uses.

Documents and quotation

Seven Star LLC supplies ComAp transfer and generator controllers on request. The datasheet is attached. Send the sources (utility, generator or both), breaker or contactor type, voltage and the transfer logic required. Related parts are in Diesel Generator Spare Parts. Confirm the hardware and firmware version before ordering, and ask for the wiring drawing of the transfer panel so that input and output assignments can be checked against the datasheet.

Operating conditions in the datasheet are humidity to 95 percent non-condensing, vibration of 5-25 Hz at 1.6 mm and 25-100 Hz at 4 g, shock of 500 m/s2, and a surrounding air temperature rating of 70 degrees C for pollution degree 2. The datasheet also lists CE among its certifications.
