DEIF AGC 150 Advanced Genset, Mains and BTB Controller
Description
One controller family for gensets, mains breakers and bus ties

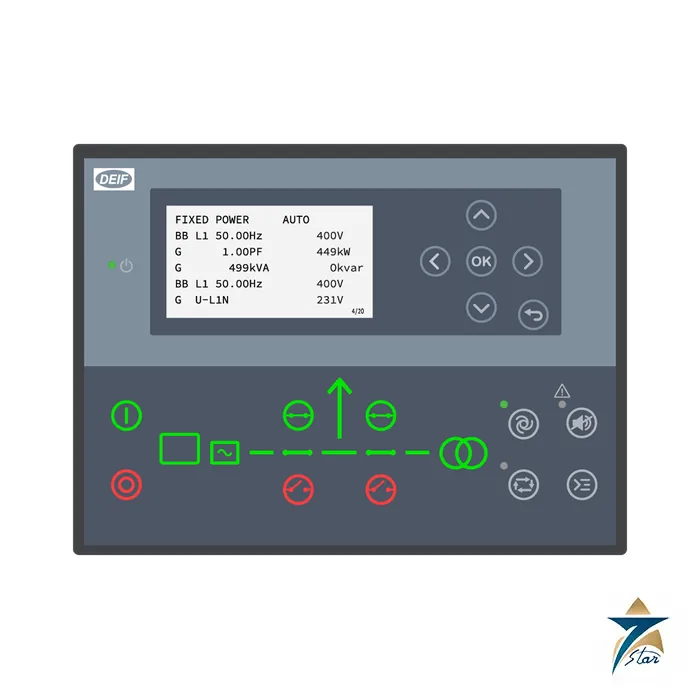

The DEIF AGC 150 is a compact all-in-one controller that protects and controls a genset and its breaker. The same hardware family is available as a Generator controller, a Mains controller that controls the mains and tie breakers, and a BTB controller for bus tie breakers. Each unit contains the full three-phase measuring circuits, and values and alarms are shown on a sunlight-readable LCD.
A single AGC 150 can run one genset, several can share load over CANshare without power management, and a group can form a power management system (PMS) with synchronisation, island operation and parallel-to-mains running. DEIF lists applications such as AMF, fixed power, peak shaving, load take-over and mains power export, and the controllers can work in a PMS together with other DEIF controllers.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | DEIF, AGC 150 Generator, Mains and BTB |
| Software packages | Stand-alone, Core, Extended, Premium (functions depend on controller type) |
| Supply | 12 or 24 V DC nominal; operating range 6.5 to 36 V DC; 5 W typical, 12 W max |
| Voltage measurement | 100 to 690 V phase-to-phase nominal; 3.5 to 75 Hz; accuracy ±1 % of nominal within 10 to 75 Hz |
| Current measurement | 4 CT inputs; -/1 A and -/5 A nominal; range 2 to 300 %; burden max 0.5 VA |
| Digital inputs | 12, negative switching |
| DC outputs | 2 x 3 A (fuel and crank) and 10 x 0.5 A |
| Analogue inputs | 4: negative switching digital, 0-10 V, 4-20 mA or 0-2.5 kΩ |
| Governor and AVR outputs | AVR: isolated -10 to +10 V DC. Governor: isolated DC -10 to +10 V or isolated PWM 1 to 2500 Hz |
| Tacho / W-point input | Tacho +/-1 to 70 Vpeak; W-point 8 to 36 V; 10 Hz to 10 kHz |
| Display | Graphical monochrome, 240 x 128 pixels, five-key navigation |
| Communication | CAN A (engine, DVC 550, CIO, IOM), CAN B (PMS, CANshare, AOP-2), 2 x RS-485, RJ45 Ethernet, USB-B |
| Operating temperature | -40 to +70 °C; storage -40 to +85 °C |
| Protection degree | IP65 front with gasket; IP20 terminal side |
| Dimensions / cutout | 233.3 x 173.3 x 44.7 mm; cutout 218.5 x 158.5 mm; max panel thickness 4.5 mm |
| Approvals listed | CE; UL/cUL Listed to UL/ULC6200:2019 1st edition; EN/IEC 60255-27 and 60255-26 |
Protections and engine interface
The protection table lists reverse power (32R), fast over-current (50P) with operate time below 40 ms, over-current, voltage-dependent over-current, over and under voltage and frequency, voltage and current unbalance, over and under excitation, earth and neutral inverse time over-current, vector shift (78), ROCOF df/dt (81R), directional over-current (67) and sequence-component protections. Which functions apply depends on the controller type and software package.
For engines the controller connects over J1939 and CANopen using DEIF engine specifications, supports Tier 4 and Stage V exhaust after-treatment, and works with digital voltage controllers such as the DVC 550, remote I/O (CIO 116, 208 and 308, IOM 220 and 230), the TDU touch display, the AOP-2 operator panel and the SDU 104 shutdown unit.
Selecting the AGC 150 variant
The controller type is set in Basic settings under Controller settings, and the software package decides which types are available: Stand-alone supports only non-synchronising applications, Core adds synchronisation, and Extended and Premium allow any type. State the role (generator, mains or BTB), the software package, the number of units in the system, the engine make and ECU protocol and the display or remote display needed. AGC 150 is also the hardware base of other DEIF controller types listed in the datasheet, for example engine drive and hybrid genset-solar.
Documents and quotation
The attached DEIF data sheet covers the Generator, Mains and BTB controllers. Send the role, software package, quantity and engine details for a quotation. For other generator control products see Diesel Generator Spare Parts.
Datasheets & Documents
- Datasheet DEIF AGC 150 Generator, Mains and BTB data sheet 4921240618 (EN) Download
Reviews (0)
About brand
DEIF is a Danish, family-owned and independent manufacturer of control and protection devices for power generation, founded in a Copenhagen backyard in 1933 and now based in Skive. Seven Star LLC, an independent supplier in Muscat, quotes DEIF AGC, SGC and CGC genset controllers for standby plants, paralleling systems and engine-driven sets.
DEIF genset and power management controllers
DEIF describes itself as a supplier of power control solutions for decentralised power generation on land and at sea. Its genset controllers range from the compact SGC and CGC units to the AGC 150 and AGC-4 Mk II controllers, which add synchronisation and power management for plants with many gensets. DEIF data sheets state the supply range, I/O, protections and approvals of each controller.
Ordering DEIF controllers
Name the exact model and variant, the software package or option letters where they apply, the quantity and the engine make and ECU protocol. DEIF configures several controllers by variant and option, so the data sheet on each page should be checked against the project before a quotation is issued.
