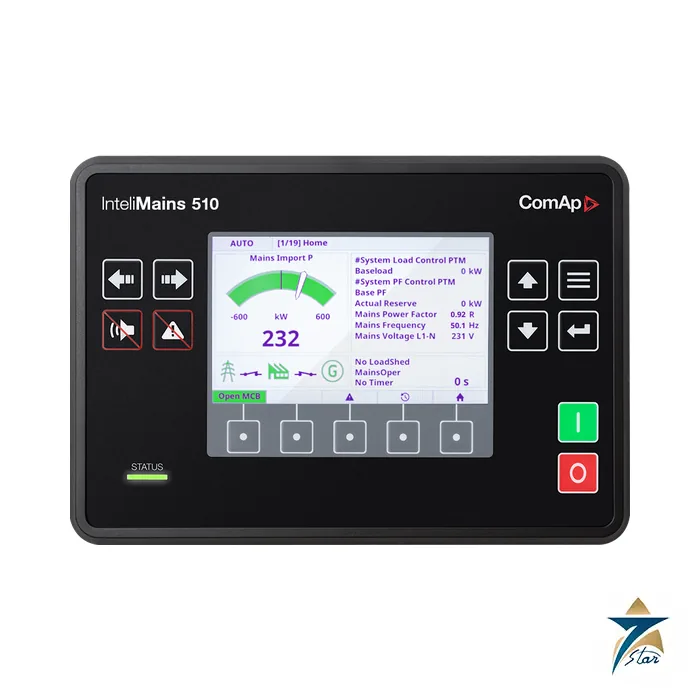

ComAp InteliMains 510 Mains Supervision Controller

A door-mounted mains controller with a colour display

The ComAp InteliMains 510 is a mains supervision controller used to synchronise a group of gen-sets to the mains or utility, or for bus-tie breaker operation. It is aimed at switchgear and at advanced, more complex applications, and gives the operator a built-in 5 inch colour TFT display (800 x 480 px) in a panel-door format.

One hardware platform covers three applications and lets a project switch easily between MCB, MGCB and BTB. Signals are shared over the CAN bus across a group of control units, so installations can cooperate with up to 32 gen-set, mains and tie controllers. A built-in PLC interpreter, user-defined protections and setpoints, and ten user accounts with individual roles support project-specific logic and access control.

Technical specifications

Plug-in modules, CAN modules and displays

CAN modules listed include IGL-RA15, Inteli AIN8, IO8/8, IGS-PTM, AIN8TC, AIO9/1, I-CR and I-CR-R. External displays include InteliVision 10Touch, 13Touch and 18Touch G2.

Protection and functions

The ANSI function list includes synchronising check (25), overload (32P), undervoltage and overvoltage, power factor (55), vector shift (78), speed and frequency matching, breaker control and over and under frequency functions. Cyber security follows ISA 62443 level 2 to 3. Remote access uses AirGate 2.0, so there is no need to know the asset IP address. Plug-in slots take 4G and GPS, an extra Ethernet port, RS232/485 or additional binary I/O, while USB host and device, CAN, RS485 and Ethernet ports are built in. Load and VAr sharing and power management are compatible with other ComAp solutions.

Where it fits

Use the 510 for switchgear with a modest number of controllers and a front-panel display. Larger systems needing hot-swap redundancy or CAN FD for 64 units belong with the InteliMains 1010. The depth behind the panel depends on the plug-in module fitted, from 47 mm upward.

How the ComAp InteliMains 510 IM4510XXBAA works

The controller watches the mains or utility supply and the generator bus. It measures voltage and frequency on both sides and decides when it is safe to close the breaker. When a group of gen-sets must be synchronised to the mains, it checks the synchronising conditions first. Through the CAN bus it shares signals with other controllers, so several units act together.

Where the IM4510XXBAA is used

• Mains circuit breaker (MCB) control
• Mains and generator breaker (MGCB) control
• Bus-tie breaker (BTB) control
• Switchgear panels
• Groups of gen-sets running with the utility

Selection checklist for the IM4510XXBAA

• Application: MCB, MGCB or BTB
• Number of controllers on the CAN bus, up to 32
• Power supply of 8 to 36 V DC
• Voltage and current measuring ranges
• Binary input and output count
• Communication interfaces needed
• Plug-in modules for the two slots
• Panel cut-out of 187 by 132 mm

Installation, commissioning and maintenance notes for the IM4510XXBAA

Mount the controller in the panel door using the cut-out size. Wire the supply with the 5 A fuse, then the voltage and current inputs. Set the application, the setpoints and the user accounts. Test the breaker outputs and the CAN link before the first synchronisation. Keep a copy of the configuration file.

Requesting a quotation for the ComAp IM4510XXBAA

Please send the order code, the application, any plug-in modules and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

IM4510XXBAA display

The built-in colour TFT display is 5 inches with 800 by 480 pixels.

IM4510XXBAA protection degree

The front is rated IP65.

IM4510XXBAA temperature range

Operation runs from minus 30 to plus 70 degrees C. Storage runs from minus 30 to plus 80 degrees C.

IM4510XXBAA communications

The list includes USB host and device, RS485, Ethernet 10/100 and two CAN ports, with Modbus RTU and TCP and SNMP.

IM4510XXBAA binary inputs and outputs

There are 8 binary inputs and 8 binary outputs, and the outputs are rated 0.5 A.

IM4510XXBAA user accounts

Ten user accounts with individual roles control access.

Controller records for the IM4510XXBAA

Record the firmware, the setpoints and the saved configuration file.

Choosing the right IM4510XXBAA modules

Choose an Ethernet or 4G module for remote access, and an extra binary I/O module when 8 channels are not enough.

Documents and quotation

Seven Star LLC supplies ComAp mains and generator controllers on request. The datasheet is attached. Send the number of gen-sets and breakers, the MCB, MGCB or BTB arrangement, VT ratio, and communication needs. See Diesel Generator Spare Parts and the ComAp InteliGen4 200 paralleling controller for the paralleling controller used with it. Confirm hardware and software version before ordering.

The datasheet lists vibration of 5-25 Hz at 1.6 mm and 25-100 Hz at 4 g, shock of 500 m/s2, humidity to 95 percent non-condensing and a surrounding air temperature rating of 70 degrees C for pollution degree 2. The Modbus Client extended feature is a separate item, order code SKMODBCLI01.
