CMP C2K Ex eb Explosive Atmosphere Cable Gland for Armoured Cable

Name: CMP C2K Ex eb Armoured Cable Gland – Datasheet & Quote
Brand: CMP Products
SKU: C2K

Description

A single-seal Ex eb gland for every armoured cable type

The CMP C2K is an internationally approved Ex eb explosive atmosphere cable gland for all types of armoured cables. It clamps the armour metal-to-metal with a reversible armour cone and the AnyWay universal clamping ring, seals the cable outer sheath with the CMP load retention seal and includes an integral protected deluge seal. The reversible cone lets one gland cover braid, tape, strip, pliable wire and single or aluminium wire armour.

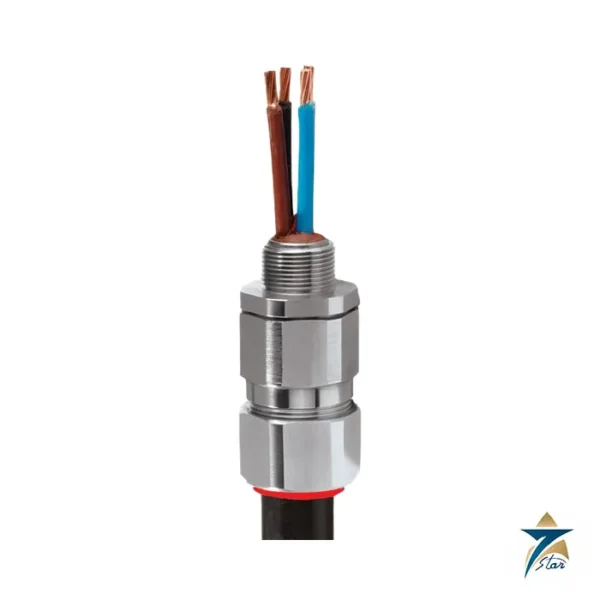

The gland is for increased safety (Ex e) enclosures and dust-hazardous equipment rather than for flameproof Ex d entries, where a barrier gland such as the PX2K family is used. The datasheet gives a temperature range of -60 to +130 C, IP66, IP67 and IP68 and the superior EMC performance of the metal-to-metal armour clamp.

Technical specifications

Parameter	Specification
Manufacturer / series	CMP Products, C2K (TDS541 REV20)
Application	Ex eb cable gland for all types of armoured cable
Cable types	SWA, AWA, PWA, STA, wire braid (SWB), ASA, screened flexible (EMC) wire braid (CY/SY), armoured and jacketed
Sealing technique	CMP load retention seal on the cable outer sheath
Armour clamping	Reversible armour cone and AnyWay universal clamping ring (grooved cone X and stepped cone W)
ATEX / IECEx / UKEX	CML18ATEX1323X; IECEx CML 18.0180X; CML 21UKEX1251X
Code of protection	II 2G 1D Ex eb IIC Gb, Ex ta IIIC Da (ATEX); Ex eb IIC Gb, Ex ta IIIC Da (IECEx and UKEX)
Design specification	BS 6121 Part 1:1989, IEC 62444, EN 62444; EN/IEC 60079-0, -7, -31
Mechanical classification	Impact level 8, cable anchorage type D; IK10 (brass and stainless steel only)
Ingress protection	IP66, IP67 and IP68 (30 m for 12 hours); deluge DTS01:91
Operating temperature	-60 to +130 C (standard)
Materials	Brass, electroless nickel plated brass, stainless steel, aluminium
Seal material	CMP SOLO LSF halogen-free thermoset elastomer
Size range	20S16 to 130 (M20 to M130)
Marine approvals	LRS, DNV, ABS and BV references printed on the datasheet

Selected sizes from the datasheet selection table (metric thread, brass):

Size	Entry thread	Overall cable dia. (mm)	Armour thickness grooved cone X (mm)	Armour thickness stepped cone W (mm)	Across flats (mm)	Length F (mm)	Weight (kg)
20S16	M20	6.1-13.1	0.3-1.0	0.8-1.25	24.0	65.0	0.23
25	M25	18.2-26.2	0.4-1.2	1.25-1.6	37.5	69.5	0.35
32	M32	23.7-33.9	0.4-1.2	1.6-2.0	46.0	75.0	0.55
50	M50	40.4-53.0	0.6-1.6	2.0-2.5	70.1	77.0	1.13
75	M75	66.7-78.4	0.6-1.6	2.5-3.0	100.0	88.0	2.48
130	M130	110.2-123.2	0.8-1.6	3.15-4.0	152.4	114.0	8.50

Selection and ordering

Choose the size from the overall cable diameter and the armour type: the grooved cone (X) range suits wire braid, steel tape and strip armour and, if outside the stepped cone range, SWA and AWA, while the stepped cone (W) range is for SWA and AWA. The ordering reference is the size code followed by C2K and 1RA, for example 20C2K1RA5 for nickel plated brass M20 or 25C2K1RA432 for stainless steel 3/4 in NPT. Material suffixes added to the ordering reference: brass (no suffix), nickel plated brass 5, 316 stainless steel 4, copper-free aluminium 1; NPT options add digits to the material suffix (for example 1/2 in = 31, 3/4 in = 32, 1 in = 33).

Because the C2K is not a barrier gland, check the equipment certificate: it is intended for Ex eb and dust (Ex ta) entries and not for Ex d direct entry. For flameproof entries or cables with permeable fillers use the PX2K family.

Installation notes

The reversible armour cone speeds installation, and the unique OSTG feature prevents over-tightening of the outer seal. The datasheet states that the mechanical and electrical classifications and the IP/NEMA ratings apply when CMP installation accessories are used. The recommended shroud size by gland size is printed in the table.

Documents and quotation

The attached CMP C2K datasheet carries the full selection table for sizes 20S16 to 130, the thread options and every certificate number. When requesting a price, tell us the size code, entry thread (metric or NPT), material, cable type and construction, hazardous area classification and quantity, and whether shrouds or other accessories are needed. See also Electrical Tapes and Cable Accessories and the CMP E1FW cable gland for SWA and AWA cable.

Datasheets & Documents

Datasheet CMP C2K cable gland datasheet (TDS541) Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

CMP Products makes cable glands and cable cleats, and little else. Founded in 1957 and based in Cramlington, United Kingdom, the company is a name that appears on hazardous-area cable schedules for oil, gas and power projects. Seven Star LLC sources and supplies CMP cable glands for explosive atmospheres to contractors in Oman, including the E1FW and the Triton T3CDS, among other glands and cable cleats listed on this page.

CMP cable glands listed here

The T3CDS Triton is a gland for armored cables with a compensating displacement seal, a design that sets the inner seal correctly across the cable diameter range, and an integral deluge seal. CMP lists it as Ex db, Ex eb, Ex nR and Ex ta, with IP66, IP67 and IP68 ratings. The E1FW is the explosive atmosphere gland for steel wire armored (SWA) and aluminum wire armored (AWA) cable.

Ordering CMP glands: what we need

A gland is sized to the cable, so send the cable type and three dimensions: inner bedding diameter, outer sheath diameter and armor wire size. Add the entry thread and size (metric or NPT), the gland material (brass, nickel-plated brass or stainless steel) and accessories such as locknut, earth tag, sealing washer and shroud. GCC project specifications usually name the certificate required.
