Brand: AEG Power Solutions
AEG Protect 8 S14 Industrial Monoblock UPS 10-120 kVA
Description
A compact industrial UPS with an isolated inverter output
The AEG Protect 8 S14 is an industrial-grade monoblock UPS rated 10 to 120 kVA with three-phase 380/400/415 VAC input. Output is three-phase 380/400/415 VAC or single-phase 220/230/240 VAC. It uses double-conversion topology and a small footprint, and AEG Power Solutions describes it as suitable for harsh environments with an expected lifetime of at least 20 years.
An inverter transformer isolates the output from the DC voltage and allows two separate mains sources to be used. The design is described as a solution without an input transformer, with high overload capacity and high efficiency even at low output power. Up to eight UPS units can be run in redundant parallel operation.
Technical specifications
| Parameter | Specification |
|---|---|
| Rating | 10-120 kVA (3-phase output); 10-60 kVA (1-phase output) |
| Rectifier | Nominal DC 384 V; AC 3 x 400 V (380, 415 V); 50/60 Hz +/-10 %; range 340-460 V |
| Input current at nominal load | 17-195 A; 6-pulse standard, filter/12-pulse optional |
| Inverter DC input | 384 V +/-20 % |
| Output current | 14-173 A (3-phase); 43-261 A (1-phase) |
| Voltage stability | Static below +/-1 %; dynamic below +/-2 %; recovery 2 ms |
| Frequency | 50/60 Hz; +/-0.1 % internal clock; sync range +/-1 % (2, 3 %) |
| Overload | 150 % for 1 min; 125 % for 10 min |
| Short-circuit response | Up to 2.7 x nominal current |
| Crest factor / waveform | 3 or less; sinusoidal |
| Efficiency | Up to 94 %; above 95 % in ECO mode |
| Degree of protection | IP20 (option up to IP43) |
| Noise level | 60-71 dB(A) depending on rating |
| Operating temperature | -10 to +35 C without derating; storage -30 to +75 C |
| Altitude | 1,000 m without derating; the brochure states operation up to 4,000 m above sea level |
| Standards | IEC 62040-1, -2, -3; RoHS (2011/65/EU), WEEE (2012/19/EU); CE |
Features for demanding sites
The feature list includes fully redundant control architecture, redundant and monitored fan control, fast dynamic response, short-circuit protected output, EMC immunity and emissions that meet or exceed IEC 62040-2, versatile communications, 18 embedded languages and low voltage ripple to extend battery life. Intelligent battery charge and monitoring control, a large battery voltage range and lithium-ion battery charging options are also listed.
AEG Power Solutions lists oil and gas and petrochemical sites (offshore, onshore, pipelines), energy and power, transportation, water (desalination and treatment), instrumentation and process control, and general industrial production as typical applications.
What to confirm before ordering
The datasheet is dated 09/2019 (V4); confirm that the S14 remains the right model against current AEG Power Solutions offerings such as the Protect 8 S10 or Protect 8 PLUS. Confirm output phases and voltage, battery type and autonomy, bypass supply, parallel or redundancy needs, IP degree and cabinet dimensions, which are not printed in this sheet.
The derating figure in the table is stated as 35 C at full rating, so for hot rooms ask for the exact derating curve in the quotation.
Documents and quotation
The manufacturer document for the Protect 8 S14 is listed under Documents on this page: AEG Protect 8 S14 datasheet (EN, 09/2019 V4). Browse related items in UPS and Batteries. For price, availability and lead time, send an RFQ with the exact part number, quantity and project details; Seven Star LLC is an independent supplier based in Muscat and confirms stock and delivery on quotation.
Datasheets & Documents
- Datasheet AEG Protect 8 S14 datasheet (EN, 09/2019 V4) Download
Reviews (0)
About brand
AEG Power Solutions makes industrial power electronics: rectifiers and battery chargers for DC systems, and industrial UPS systems for critical AC loads. The company, AEG Power Solutions B.V., is based in Zwanenburg, the Netherlands, and its governance page names 3W Power S.A. as its holding company. Seven Star LLC sources and supplies AEG Power Solutions products for sites in Oman, as listed on this page.\n\n
AEG Power Solutions rectifiers and battery chargers

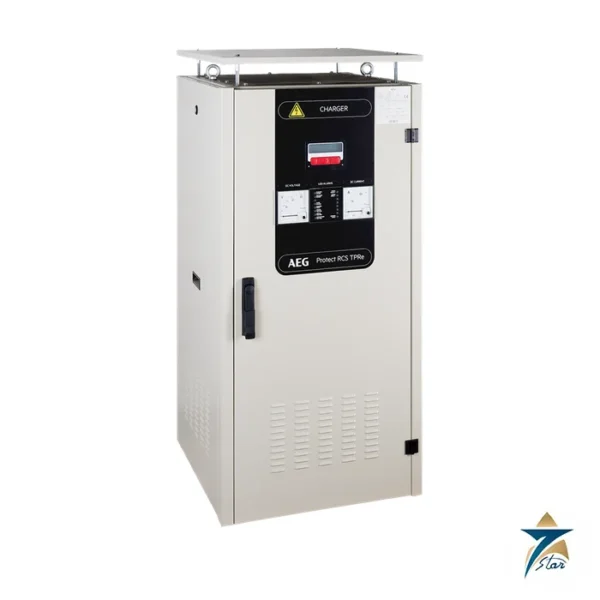

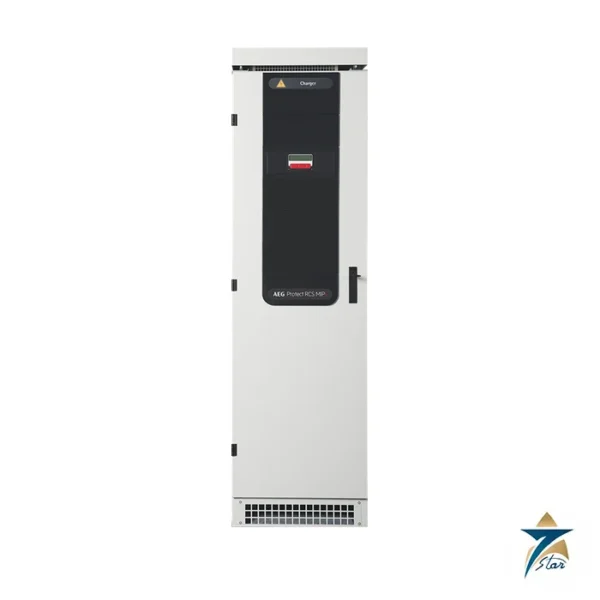

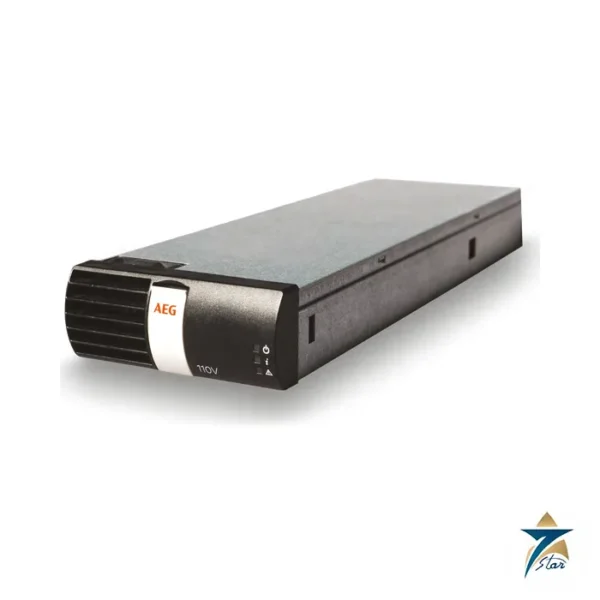

\n\nThe Protect RCS family covers thyristor-controlled rectifiers and chargers for nickel-cadmium and lead-acid batteries, a compact single-phase model, a version optimised for transmission and distribution, and modular switch-mode MIPe systems with hot-swappable modules. These are used for substation, plant control and switchgear DC supplies.\n\n
AEG Power Solutions industrial UPS

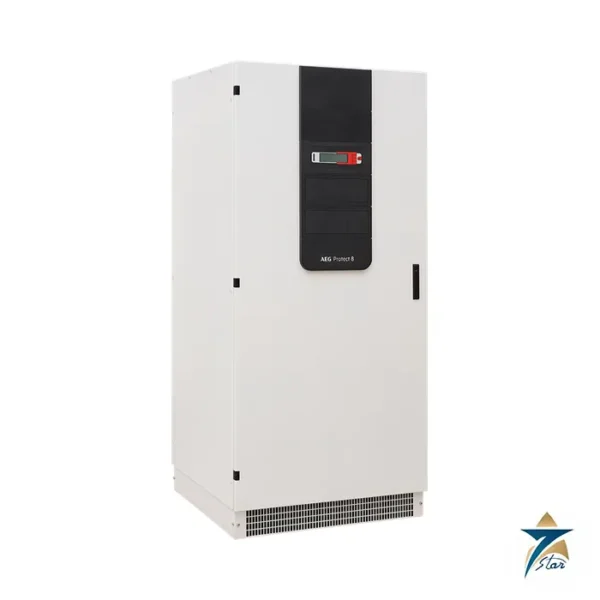

\n\nThe Protect 8 and Protect 5C series are industrial double-conversion UPS units from 10 kVA upwards for process industries, and the Protect D range covers smaller single-phase UPS for racks and edge sites. AEG datasheets state that AEG is a trademark used under licence from AB Electrolux, and AEG Power Solutions is a separate company from AEG household appliances.
Related products
Frequently Asked Questions
What is the Protect 8 S14?
A compact industrial-grade monoblock UPS from AEG Power Solutions rated 10 to 120 kVA with double-conversion topology.
Does it have an input transformer?
AEG Power Solutions describes it as a solution without an input transformer; an inverter transformer provides output isolation.
Can units be paralleled?
Yes, redundant parallel operation of up to 8 UPS is listed.
What efficiency is quoted?
Up to 94 %, and above 95 % in ECO mode.
Which battery chargers are supported?
Intelligent charging with a large battery voltage range, and lithium-ion charging options are listed as available.
