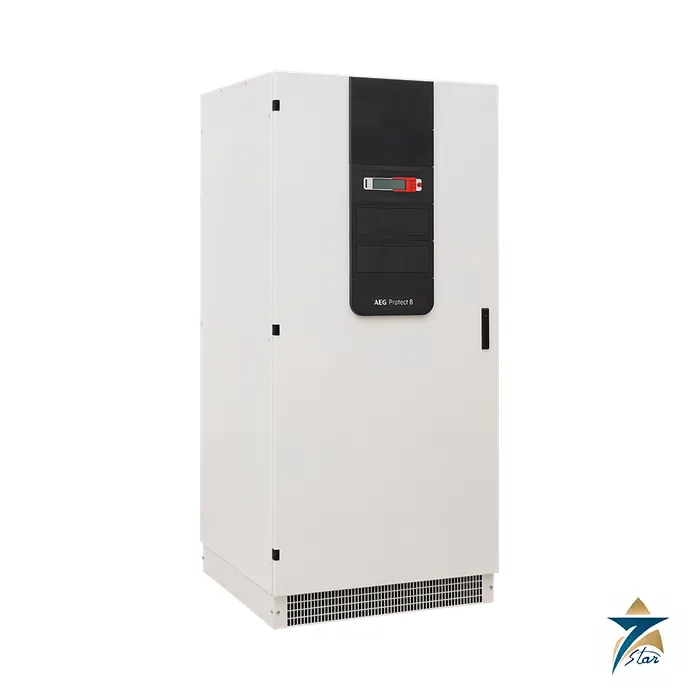

AEG Protect 8 PLUS Industrial UPS 10-120 kVA

Name: AEG Protect 8 PLUS Industrial UPS 10-120 kVA – Brochure & Quote
Brand: AEG Power Solutions
SKU: Protect 8 PLUS

An industrial double-conversion UPS with a full-IGBT rectifier

The AEG Protect 8 PLUS is an industrial UPS rated 10 to 120 kVA, described by AEG Power Solutions as an extension of its proven Protect 8 AC UPS family. It combines double-conversion topology with an IGBT rectifier, giving an input power factor of up to 0.99 and input current distortion (THDi) of 5 % or less. With an external stand-by battery it supplies critical loads in industrial environments, and AEG states an expected lifetime of at least 20 years.

A bi-directional rectifier-charger can perform battery discharge tests back into the input mains, so no external load bank needs to be rented. A patented pre-charge circuit limits inrush current, which AEG says can reduce the size of upstream transformers, breakers and cables. The unit meets the Joint Industry Programme JIP33 specification S-701 from IOGP.

Technical specifications

Parameter	Specification
Ratings (PF 0.8)	10, 20, 30, 40, 60, 80, 100, 120 kVA; 1-phase or 3-phase output
DC intermediate voltage	216 Vdc (10-120 kVA); 384 Vdc (30-120 kVA, 3-phase output only)
Rectifier input	400 V (380, 415 V), 3 ph or 3 ph + N; +10 % tolerance at 400 V; 50/60 Hz +/-5 %
Rectifier type / power factor	IGBT; input power factor up to 0.99; inrush up to 2 x nominal
DC voltage stability / ripple	+/-1 %; 0.25 % rms or less in float
Output voltage	1 x 230 Vac or 3 x 400 Vac, 50/60 Hz
Overload at cos phi 0.8	125 % for 10 min; 150 % for 1 min
Short-circuit capacity	350 % for 500 ms (1-phase); 200 % for 500 ms (3-phase)
Voltage response	Static +/-1 %; dynamic +/-5 % with recovery under 10 ms; VFI SS 111 (IEC 62040-3)
Voltage distortion	Below 3 % linear load; 5 % or less non-linear load; crest factor max 3
Static bypass	500 % for 10 ms short-circuit capacity as standard
AC/AC efficiency	Up to 90 % in double conversion
Degree of protection	IP20 (option up to IP43)
Noise / colour	Below 65 dB(A); RAL 7035
Operating / storage temperature	-10 to +40 C; -30 to +75 C
Standards	IEC 62040-1, -2, -3; CE

Features built for process industries

Full-IGBT architecture with the latest IGBT generation, hot-swappable fans with optional N+1 fan redundancy, built-in output galvanic isolation as standard and optional input galvanic isolation are listed. The UPS has high output short-circuit clearance and a full set of electrical and communication options. The Protect 8 building-block design is used so customisation requirements are easier to meet.

AEG Power Solutions lists oil and gas exploration and production, petrochemical and refining, transport infrastructure, water treatment, continuous manufacturing and other heavy industry as typical applications. Front access to all major replaceable components supports maintenance.

Selection and what to confirm before ordering

Select by kVA rating, single-phase or three-phase output and DC voltage. The datasheet shows 384 Vdc only for three-phase output units rated 30 kVA and above. Dimensions are given as “according to rating and system configuration”, so confirm them on the quotation drawing together with battery type and autonomy, required IP degree and bypass supply.

If JIP33 compliance matters for the project, request the supporting declaration for the exact configuration from the manufacturer. For compact monoblock units with an inverter transformer, the Protect 8 S14 is the related model; the S10 is the building-block model with wider voltage choices.

Documents and quotation

The manufacturer document for the Protect 8 PLUS is listed under Documents on this page: AEG Protect 8 PLUS brochure (EN, 12/2024 V2). Browse related items in UPS and Batteries. For price, availability and lead time, send an RFQ with the exact part number, quantity and project details; Seven Star LLC is an independent supplier based in Muscat and confirms stock and delivery on quotation.
