AEG MIPe NewGen Rectifier Module

Name: AEG MIPe NewGen Rectifier Module – Datasheet & Quote
Brand: AEG Power Solutions
SKU: MIPe NewGen Module

A hot-swappable rectifier module for Protect RCS MIPe systems

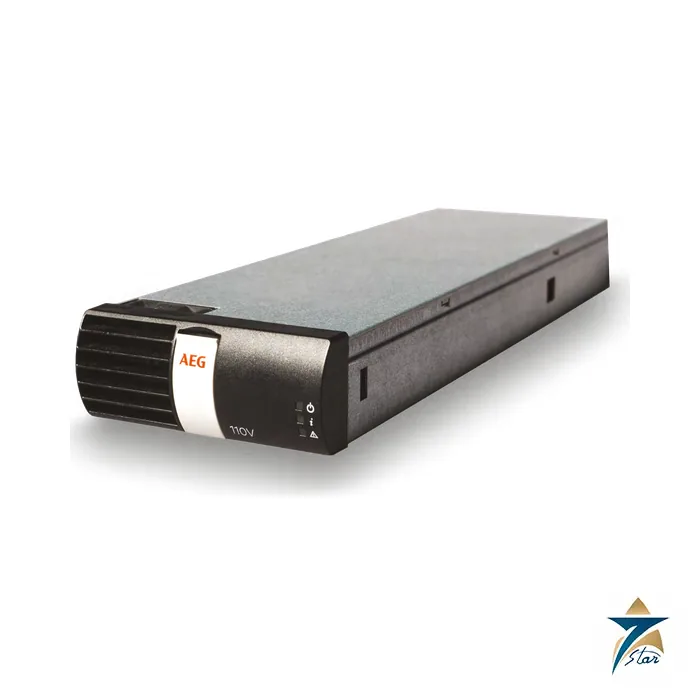

The AEG MIPe NewGen is a switch-mode rectifier module for industrial applications. It is fitted inside Protect RCS MIPe systems or racks and brings compact, hot-swappable power with digital control over CAN bus. AEG Power Solutions lists efficiency of 93 to 95 % typical over a large load range, low input current harmonics, a power factor of 0.99 and low standby power consumption.

Because modules are paralleled in the system, a rack can be sized for N+1 redundancy and extended on site. The datasheet lists applications in power generation, T and D, oil and gas, petrochemical, heavy industry, mining and transportation signalling.

Technical specifications

Parameter	Specification
Module types	PM 24-50, PM 48-40, PM 110-16, PM 220-8
Input	230 V single phase; 184-275 V at nominal power, 100-184 V at reduced power; 45-66 Hz
Input current	9.2 A nominal / 12 A maximum; inrush below 40 A peak
Power factor / THDI	0.99 typical / below 5 % typical
Output voltage	24 V, 48 V, 110/120 V, 220 V
Max output current	50 A at 30 V; 40 A at 50 V; 16 A at 125 V; 8 A at 250 V
Max constant power	1,500 W (24 V); 2,000 W (48 V, 110/120 V, 220 V)
Voltage adjustment range	20-33 V; 40-66 V; 91-166 V; 182-308 V (1,000 W limit above 32.4, 64.8 and 297 V)
Regulation / ripple	Static +/-0.5 %; dynamic +/-5 % in 5 ms; ripple below 0.2 % Un DC
Efficiency	93 % (24 V); 95 % (48, 110/120, 220 V) typical
Galvanic isolation	Input/output 4,250 VDC; input to ground 2,125 VDC
Size / weight	41.5 mm (1U) x 109 x 325 mm; 2 kg
Degree of protection	IP20; rear connector; IP55 fan
Operating temperature	-40 to +55 C at full load; derating 2 % per C up to 70 C
MTBF	At least 350,000 h (Telcordia SR-332, Method I, Case III)
Approvals / standards	CE; EN 60950-1 / IEC 62477-1; EN 50121-3-2, -4, -5; EN 55022 Class A; RoHS, WEEE

Protection, control and indication

Control and alarms run through the CAN bus to the system controller, and a front panel LED shows green for normal operation, yellow for minor alarms and red for major alarms. Protection covers HRC fuses in the line and neutral conductors, a DC output fuse on positive polarity, output current and power limitation, soft start and automatic power derating with shutdown on excess temperature.

Default over-voltage protection is 35 VDC for the 24 V module, 70 VDC for 48 V, 170 VDC for 110/120 V and 315 VDC for 220 V. Quiescent consumption is 3 W with output off and 10 W with output on.

Selection and what to confirm before ordering

Choose the module type from the system battery voltage: PM 24-50, PM 48-40, PM 110-16 or PM 220-8. Modules are specified for use inside Protect RCS MIPe systems and racks, so confirm compatibility with the installed or planned subrack and controller before ordering spares or expansion modules.

The module datasheet does not give a single orderable part number per type, so give the module type, the host system and the quantity when requesting a quotation.

Documents and quotation

The manufacturer document for the MIPe NewGen Module is listed under Documents on this page: AEG MIPe NewGen module datasheet (EN, 06/2021 V1). Browse related items in UPS and Batteries. For price, availability and lead time, send an RFQ with the exact part number, quantity and project details; Seven Star LLC is an independent supplier based in Muscat and confirms stock and delivery on quotation.
