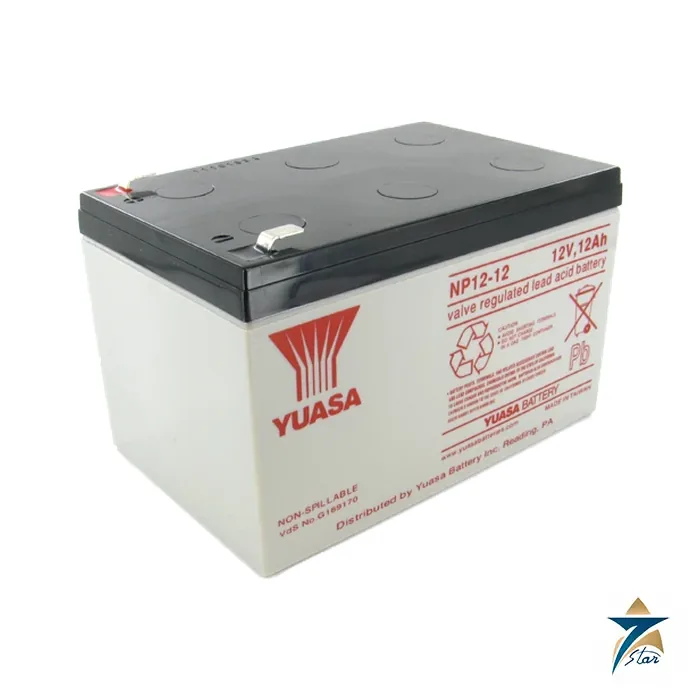

Yuasa NP12-12 12V 12Ah Sealed Lead Acid Battery
Overview
Yuasa NP12-12 is a 12V, 12Ah valve-regulated lead-acid (VRLA) battery from Yuasa’s widely specified NP standby and cyclic series, designed as a maintenance-free, spill-proof power source for uninterruptible power supplies, fire and security control panels, and industrial backup applications. Built with absorbed glass mat (AGM) construction and a sealed, valve-regulated design, the NP12-12 requires no electrolyte top-up and can be mounted in any orientation within an equipment cabinet, making it a standard replacement battery specified by UPS OEMs and panel integrators worldwide.
Working closely with plant engineers in the region, Seven Star LLC proudly supplies the NP12-12 across Oman and the wider GCC, giving facility managers, UPS maintenance contractors, and control panel integrators in the Sultanate of Oma genuine, factory-fresh Yuasa batteries with reliable float-charge performance for critical standby power applications.
Operating Principle
The Yuasa NP12-12 stores and delivers electrical energy through a reversible lead-acid electrochemical reaction contained within a sealed, valve-regulated enclosure. Unlike flooded lead-acid designs, the electrolyte is fully absorbed into glass-mat separators, so oxygen generated at the positive plate during charging recombines internally with hydrogen at the negative plate rather than venting as gas, keeping the battery maintenance-free and safe for mounting inside enclosed equipment cabinets without external ventilation.
A pressure-relief safety valve opens only under abnormal overcharge conditions to prevent case rupture, while under normal float-charge operation at 13.65V (±1% at 20°C) the battery remains continuously topped up and ready to deliver rated capacity the instant mains power is interrupted. This design gives the NP12-12 a low self-discharge rate suitable for extended storage of up to twelve months, along with predictable performance across both standby float duty in UPS strings and cyclic duty in control panels and emergency lighting systems.
Engineering Design of the Yuasa NP12-12
The Yuasa NP12-12 is housed in a flame-retardant ABS case measuring approximately 151mm x 98mm x 97.5mm and weighing approximately 4 kg, sized to fit standard UPS battery compartments and 19-inch rack-mount battery trays used throughout the industry. Termination is via 0.250-inch (6.35mm) Faston quick-connect tabs, allowing rapid field replacement without soldering, and an integrated carrying handle simplifies installation and swap-out in tall equipment racks or overhead panel mountings.
Internally, the Yuasa NP12-12 uses low-antimony or calcium-alloy grid plates optimized for minimal water loss and extended design life of 3 to 5 years in float service, and the AGM separator construction provides strong resistance to vibration, making the NP12-12 suitable not only for stationary UPS installations but also for mobile and cyclic industrial equipment. The sealed case construction permits safe operation across an ambient temperature range of -20°C to 60°C, covering both air-conditioned server rooms and warmer, less-controlled plant equipment rooms typical of Gulf industrial sites.
Key Features
The Yuasa NP12-12 battery combines proven VRLA construction with practical features that support long, reliable standby service:
- Delivers 12V, 12Ah nominal capacity in a valve-regulated, sealed lead-acid (VRLA/AGM) construction requiring zero maintenance.
- Spill-proof, any-orientation mounting is possible thanks to fully absorbed glass-mat electrolyte and internal oxygen recombination.
- Supports both float (standby) charging at 13.65V and cyclic/boost charging at 14.5V (±3%) for flexible application duty.
- Low self-discharge rate allows storage for up to twelve months at normal ambient temperature before requiring a top-up charge.
- Flame-retardant ABS case with integrated safety pressure-relief valve protects against overcharge-related case rupture.
- 0.250-inch Faston quick-connect terminals enable fast, tool-minimal field replacement in UPS and panel installations.
- Rated for a wide ambient operating temperature range of -20°C to 60°C, suiting both conditioned and unconditioned equipment rooms.
- Compact footprint and standard NP12-12 form factor make it a drop-in replacement across most UPS and control panel battery compartments.
Industrial Applications
The Yuasa NP12-12 is widely used as the standby battery of choice in small-to-medium uninterruptible power supplies protecting server rooms, building management systems, and DCS operator stations, as well as in fire alarm control panels, access control and CCTV power supplies, and emergency lighting systems across commercial and industrial facilities. The Yuasa NP12-12’s combination of float and cyclic duty capability also makes it suitable for solar-charged remote monitoring stations and portable instrumentation power packs deployed at pipeline right-of-way and remote wellhead sites.
With fast quotation turnaround and technical support, Seven Star LLC distributes the NP12-12 to facility maintenance teams, UPS service contractors, and panel builders throughout Muscat, the Sohar Freezone and Port, Salalah’s logistics and port zone, and across the Sultanate of Oman’s oil, gas, and desalination sectors, providing dependable, genuine replacement batteries for critical standby power systems throughout Oman and the wider GCC.
Technical Specifications
The table below summarizes the key technical parameters of the Yuasa NP12-12 sealed lead-acid battery, and the Yuasa NP12-12 datasheet should be consulted for full compliance details:
| Parameter | Specification |
|---|---|
| Model | NP12-12 |
| Nominal Voltage | 12V |
| Nominal Capacity | 12Ah (20-hour rate) |
| Battery Type | Valve-regulated lead-acid (VRLA), AGM, sealed/maintenance-free |
| Dimensions (L x W x H) | 151mm x 98mm x 97.5mm |
| Weight | Approx. 4 kg |
| Terminal Type | 0.250″ (6.35mm) Faston quick-connect |
| Float Charge Voltage | 13.65V ±1% at 20°C |
| Cyclic/Boost Charge Voltage | 14.5V ±3% |
| Max Discharge Current | 75A for 1 minute |
| Operating Temperature Range | -20°C to 60°C |
| Design Life | 3–5 years (float service) |
Request a Quote for Yuasa NP12-12 12V 12Ah Sealed Lead Acid Battery
To request a formal quotation for the Yuasa NP12-12, confirm current availability and lead time, or download the full technical datasheet, contact the Seven Star LLC power systems and instrumentation division for the Yuasa NP12-12. With engineering support in Muscat, Seven Star LLC supplies batteries on request, with application support for UPS and control panel replacement and technical support for industrial and commercial clients across Muscat, Sohar, Salalah, and the wider Sultanate of Oman.
Related Products
- APC SMX3000HV Smart-UPS X 3000VA Rack/Tower LCD UPS
- ABB 3BDM000199R1 SB808F RAM Buffering Battery Module
- EnerSys PowerSafe DU Battery
- APC SMX120BP Smart-UPS X 120V External Battery Pack
- APC AP9641 Network Management Card 3
- APC SURT8000XLI Smart-UPS RT 8000VA Online UPS
- APC SYA8K16RMI Symmetra LX 8kVA Scalable to 16kVA UPS
- Datasheet Yuasa NP12-12 12V 12Ah Sealed Lead Acid Battery Datasheet Download
Yuasa NP batteries listed here
The Yuasa NP12-12 is a 12 V, 12 Ah sealed lead-acid battery. In NP designations the first number is the capacity in ampere-hours and the second is the nominal voltage, so NP7-12 would be a 7 Ah, 12 V block. Several NP sizes exist in more than one terminal or case version, shown by extra letters after the number.Ordering Yuasa batteries: what we need
Send the full type printed on the battery, including any suffix letters, and the quantity. Tell us the equipment it serves, such as a UPS model or a fire alarm panel, and the terminal type on the old battery. Measure length, width and height if the label is missing. For a UPS, state how many blocks are in the string, since they should be replaced together. We also quote Yuasa batteries for buyers elsewhere in the GCC.Browse YUASA products by category: UPS and Batteries.
