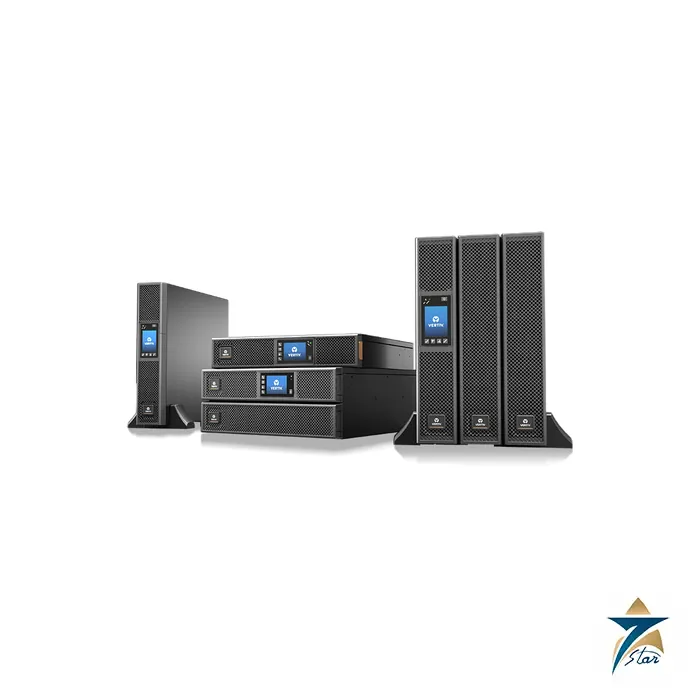

Vertiv Liebert GXT5 UPS 1500-10000VA 230V Online Rack Tower

Overview of the Vertiv Liebert GXT5 Online UPS

Vertiv Liebert GXT5 is a single-phase, online double-conversion uninterruptible power supply from Vertiv, offered in the international 230 V range from 1500 VA to 10000 VA. It is built in a convertible rack and tower enclosure, so the same unit can sit on a floor stand beside a network cabinet or slide into a 19-inch rack. The range is aimed at the point where critical IT and control equipment meets an unreliable grid, which is exactly the situation many server rooms, telecom shelters, control rooms and edge sites in the Gulf face during summer peak load and switching events.

Seven Star LLC supplies the Vertiv Liebert GXT5 with engineering support in Muscat, so that facility managers in Oman and the GCC can match the correct model, battery cabinet and network card to their load before ordering. Typical requests we handle are sizing a 3 kVA unit for a switch room, specifying a 10 kVA unit with an external battery cabinet for a small data hall, and checking IEC socket types against the load that must be connected.

Operating Principle of the Vertiv Liebert GXT5

In online double-conversion operation the incoming AC is rectified to DC and then converted back to a clean sine wave by the inverter, so the load never sees utility disturbances directly. The battery is connected to the DC link, which means that when the grid fails there is no transfer time. According to the Vertiv brochure the Vertiv Liebert GXT5 provides an output power factor of up to 1.0, which gives more usable watts from every VA of rating and allows more servers or controllers to be connected to the same unit.

For energy saving the unit also offers an Active ECO operating mode with efficiency of up to 98 percent, while efficiency in online double-conversion mode is quoted at up to 95 percent. On the Vertiv Liebert GXT5, battery care is handled by temperature-compensated charging and by battery health status and replacement date prediction, which gives maintenance teams a planned replacement window rather than a surprise failure. Valve-regulated, non-spillable lead-acid batteries are used inside the chassis.

Design and Interfaces of the Vertiv Liebert GXT5

The front panel carries a full-colour graphic LCD with gravity-sensing orientation, so the display remains readable whether the Vertiv Liebert GXT5 is installed horizontally in a rack or vertically as a tower. The 1500 to 3000 VA models use IEC 60320 C13 outlets and, on the 3000 VA unit, one C19 outlet, while the 6000 VA and 10000 VA models are hardwired and add C13 and C19 groups at the output. Four user-definable dry contact inputs and outputs are available onboard for integration with building and alarm systems, and a serial port supports out-of-band management with Avocent serial consoles.

Remote management of the Vertiv Liebert GXT5 is based on the optional Vertiv RDU101 network communications card for SNMP and web access, which is factory installed on selected models and standard on the 6000 and 10000 VA units according to the brochure. The card supports SN series environmental sensors for temperature, humidity, door contact and leak detection. Vertiv Power Insight is a free web-based software that can monitor up to 100 Vertiv UPS and rack PDU devices, and remote firmware upgrade is supported.

Key Features of the Vertiv Liebert GXT5

The following points summarise what the Vertiv Liebert GXT5 range offers according to the manufacturer documentation.

• Online double-conversion topology with output power factor up to 1.0, ranging from 1500 VA / 1500 W to 10000 VA / 10000 W.
• Convertible rack and tower design with a gravity-sensing full-colour graphic LCD.
• Automatic internal bypass, with an integrated maintenance bypass POD on selected models for service without powering down the load.
• External battery cabinets with auto-detection, so the UPS reports accurate runtime after cabinets are added.
• Hot-swappable, user-replaceable battery modules to minimise downtime during battery service.
• Parallel or redundant operation capability on the 10 kVA class, with configurations up to 2+1 redundancy described for 10, 16 and 20 kVA models.
• Energy Star 2.0 certification and compliance with RoHS and REACH requirements.
• Four onboard dry contacts, a serial port and optional RDU101 card for building management and monitoring integration.

Industrial Applications in Oman and the GCC

In Oman the Vertiv Liebert GXT5 fits server rooms in government offices, hospitals, banks and educational campuses, and it is equally useful in the instrumentation and control rooms of oil and gas facilities, water treatment works and power substations where a small online UPS protects PLCs, SCADA servers, network switches and operator stations. Because the 230 V international models cover 50 Hz and 60 Hz settings and wide input tolerance, they suit sites with weak or generator-fed supply, such as remote wellhead shelters and desalination pump stations.

For customers in Sohar, Salalah, Duqm and the Muscat region, Seven Star LLC can help select the external battery cabinet that matches each model, since the brochure lists GXT5-EBC48VRT2U for the 1500 and 2000 VA units, GXT5-EBC72VRT2U for the 3000 VA unit and GXT5-EBC192VRT3U for the 6000 and 10000 VA units. Rack mounting kits, wall brackets and shelves are available for the entire family. Related items we supply include the Vertiv Liebert EXL UPS for larger three-phase systems, the APC SRT3000XLI Smart-UPS SRT 3000VA for comparison, and the EnerSys PowerSafe DU battery for substation standby power.

Technical Specifications of the Vertiv Liebert GXT5

The table below lists the models and values published in the Vertiv brochure for the 230 V international range. Runtime figures are for the internal battery unless an external battery cabinet is stated.

Request a Quote for the Vertiv Liebert GXT5

To request the Vertiv Liebert GXT5, send the model code, the connected load in watts, the required runtime and the input supply details through the Seven Star LLC enquiry form. We will confirm the matching external battery cabinet, rack kit and network card, check current availability and respond with a formal quotation. The official Vertiv brochure for the 1500 to 10000 VA 230 V range is attached to this page for technical review, and our instrumentation and power team can discuss the datasheet values with your engineers for projects across Oman and the GCC.
