Brand: YUASA

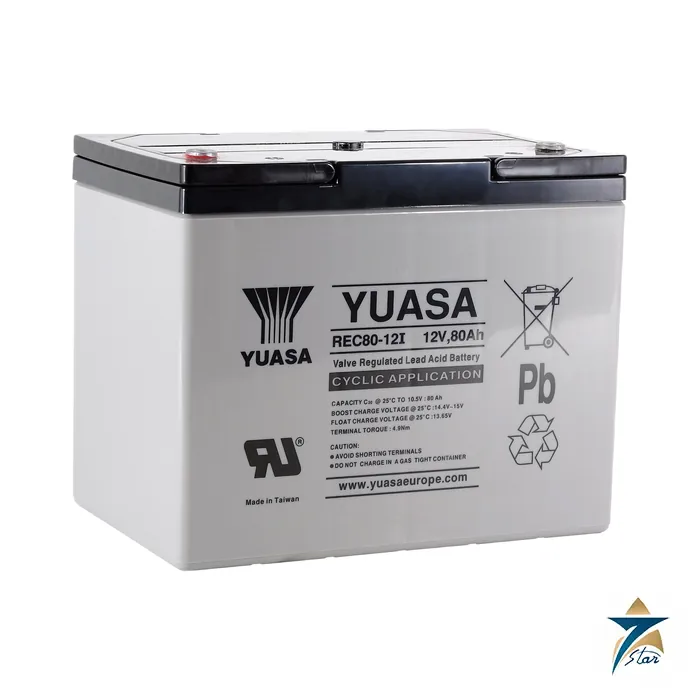

Yuasa REC80-12I 12V 80Ah Cyclic AGM VRLA Battery
Description
Cyclic AGM battery for repeated charge and discharge duty
The Yuasa REC80-12I is a 12 V, 80 Ah (20-hour rate) valve-regulated AGM battery from the REC series, which Yuasa describes as cyclic AGM VRLA batteries. Where a standby battery sits on float for years, a cyclic battery is charged and discharged regularly, for example in small solar and off-grid storage or in mobile and portable equipment. The label on the block reads Cyclic Application.
Yuasa publishes cycle-life data for the REC80-12I: 300 cycles at 100 % depth of discharge, 500 cycles at 75 %, 600 cycles at 50 % and 1400 cycles at 25 %, each to 80 % of capacity. The data sheet does not give a EUROBAT classification, and quotes a design life of up to 10 years at 20 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | Yuasa, REC series (REC80-12/I/NF/Box) |
| Nominal voltage | 12 V |
| Capacity, 20-hour rate to 1.75 V per cell at 20 °C | 80 Ah |
| Capacity, 10-hour rate to 1.8 V per cell at 20 °C | 74 Ah |
| Constant power, 10-minute rate to 9.6 V per block at 20 °C | 2308.57 W typical per block (384.76 W per cell to 1.6 V) |
| Dimensions (L x W x H) | 259 (±3) x 168 (±3) x 212.5 (±3) mm |
| Weight | 27 kg |
| Terminals | M6 female; torque 3.9 to 5.4 Nm |
| Case material | ABS, UL94:HB; standard case |
| Float charge voltage at 20 °C | 13.65 V per block (2.275 V per cell), ±1 %; correction -3 mV per cell per °C |
| Cyclic (boost) charge voltage at 20 °C | 14.52 V per block (2.42 V per cell), ±3 %; correction -4 mV per cell per °C |
| Charge current limit | 20 A float; 20 A cyclic |
| Maximum discharge current | 480 A for 1 s; 310 A for 1 min |
| Internal resistance at 1 kHz | 4.7 mΩ |
| Cycle life to 80 % capacity | 300 cycles at 100 % DOD; 500 at 75 %; 600 at 50 %; 1400 at 25 % |
| Operating temperature | Storage -15 to +45 °C; charge -15 to +45 °C; discharge -15 to +45 °C |
| Self-discharge | About 3 % capacity loss per month at 20 °C |
| Design life | Up to 10 years at 20 °C; EUROBAT not classified |
| Certifications listed | Underwriters Laboratories |
Charging cyclic batteries
A cyclic duty battery needs a charger with the boost voltage of 14.52 V per block at 20 °C and a current limit of 20 A, with temperature compensation of -4 mV per cell per °C. The data sheet gives the same float and boost current limit. A charger that is set for float only will not recharge a deeply discharged block quickly.
Installation limits match other Yuasa VRLA blocks: up to 90 degrees from upright, no suspending by the handles, and no installation in a sealed container because hydrogen can accumulate. Note the narrower temperature range of this block, -15 to +45 °C for storage, charge and discharge, compared with the NPL series.
Choosing a REC size
| Model | Voltage | Capacity (Yuasa page) | Series |
|---|---|---|---|
| REC22-12I | 12 V | 22 Ah | Cyclic AGM VRLA |
| REC26-12I | 12 V | 26 Ah | Cyclic AGM VRLA |
| REC36-12I | 12 V | 36 Ah | Cyclic AGM VRLA |
| REC50-12I | 12 V | 50 Ah | Cyclic AGM VRLA |
| REC80-12I (this page) | 12 V | 80 Ah | Cyclic AGM VRLA |
Size the battery from the daily energy throughput and the depth of discharge, using the cycle-life figures above, and confirm the charger profile. For a standby-duty alternative see the NPL65-12I long-life block or Yuasa NP12-12 sealed lead acid battery.
Documents and quotation
The Yuasa technical data sheet is attached. For a quotation send the model, quantity and duty cycle. Related products are listed under UPS and Batteries.
Datasheets & Documents
- Datasheet Yuasa REC80-12I technical data sheet Download
Reviews (0)
About brand
Yuasa, a brand of Kyoto-based GS Yuasa Corporation with roots going back to 1918, is known for sealed lead-acid batteries used in standby power. Its NP series of valve-regulated batteries serves standby and cyclic duty in UPS units, alarm panels and control cabinets. Seven Star LLC lists the Yuasa NP12-12 and supplies Yuasa sealed lead-acid batteries to industrial and commercial facilities in Oman.
Yuasa NP batteries listed here
The Yuasa NP12-12 is a 12 V, 12 Ah sealed lead-acid battery of the absorbent glass mat type with Faston terminals. In NP designations the first number is the capacity in ampere-hours and the second is the nominal voltage, so NP7-12 would be a 7 Ah, 12 V block. Extra letters after the number mark a variant, such as FR for a flame-retardant case.
Ordering Yuasa batteries: what we need
Send the full type printed on the battery, including any suffix letters, and the quantity. Tell us the equipment it serves, such as a UPS model or a fire alarm panel, and the terminal type on the old battery. Measure length, width and height if the label is missing. For a UPS, state how many blocks are in the string, since they should be replaced together. We also quote Yuasa batteries for buyers elsewhere in the GCC.
Browse YUASA products by category: UPS and Batteries.
Related products
Frequently Asked Questions
What does cyclic mean for the REC80-12I?
It is designed for regular charge and discharge cycles rather than float standby only. Yuasa gives 300 cycles at 100 % depth of discharge and 1400 cycles at 25 %, to 80 % of capacity.
What is the capacity?
80 Ah at the 20-hour rate to 1.75 V per cell and 74 Ah at the 10-hour rate to 1.8 V per cell, at 20 °C.
What boost voltage should be used?
14.52 V per block at 20 °C with a correction of -4 mV per cell per °C and a current limit of 20 A.
What are the dimensions and weight?
259 x 168 x 212.5 mm and 27 kg according to the data sheet.
What temperature range applies?
The data sheet gives -15 to +45 °C for storage, charge and discharge.
