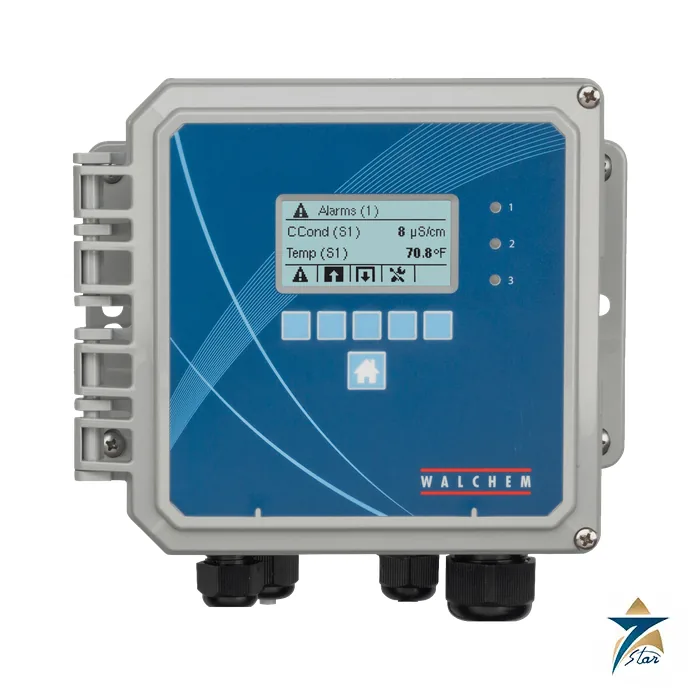

Walchem W100W Cooling Tower and Boiler Controller

Name: Walchem W100W Cooling Tower Boiler Controller
Brand: Walchem
SKU: W100W

Description

An economical conductivity controller for towers, boilers and condensate

The W100W series is Walchem’s economical and reliable controller for keeping a cooling tower, boiler or condensate water-treatment programme under control. It is offered as the WCTW cooling tower controller and the WBLW boiler controller, each built around conductivity measurement. A large display with icon-based programming makes set-up simple, and the universal sensor input lets the same controller work with different conductivity sensors.

The third control relay lets the W100W be used in more places than other entry-level controllers. Each relay can be set to bleed on conductivity, bleed in proportion to makeup-water volume, blow down a boiler on conductivity with intermittent sampling, feed in proportion to bleed time, feed in proportion to makeup volume, feed as a percentage of elapsed time, or run a biocide timer with pre-bleed and post-feed bleed lockout.

Technical specifications

Parameter	Specification
Models	WCTW (cooling tower); WBLW (boiler)
Display	128 x 64 graphic backlit display
Supply	100 to 240 VAC ±10 %, 50 or 60 Hz, 7 A maximum; fuse 6.3 A
Contacting conductivity ranges	0.1 cell 0-3,000 µS/cm; 1.0 cell 0-30,000 µS/cm; 10.0 cell 0-300,000 µS/cm; ±1 % of reading
Electrodeless conductivity	500-12,000; 3,000-40,000; 10,000-150,000; 50,000-500,000; 200,000-2,000,000 µS/cm; ±1 % of reading
Temperature	-5 to 260 °C, 0.1 °C resolution, ±1 % of reading
Digital inputs	2; interlock, contacting flowmeter, paddlewheel flowmeter (0-500 Hz)
Relay outputs	3 relays, either powered or dry-contact by model code; 6 A resistive, 1/8 HP per relay; powered relays fused as one 6 A group
Analog output	Optional one isolated 4-20 mA, 600 ohm maximum load, ±0.5 % of reading
Enclosure	Polycarbonate; UL 50 / UL 50E Type 4X; IEC 60529 IP65
Operating ambient	-20 to 55 °C; storage -20 to 80 °C; 10 to 90 % RH non-condensing
Dimensions	203 x 206 x 83 mm (8 x 8.1 x 3.25 in)
Sensor ratings as printed	Boiler/condensate contacting conductivity 0-250 psi, 0-205 °C, 316SS and PEEK; high-pressure tower 0-300 psi, 0-70 °C; low-pressure manifold 0-150 psi up to 38 °C
Certifications as printed	Safety UL 61010-1, CSA C22.2 No. 61010-1, IEC/EN 61010-1; EMC IEC/EN 61326-1

Ordering the W100W and choosing sensors

The ordering code has three parts. First choose the relay and wiring option: 100H, 100P or 100D give three powered relays (hardwired, USA cord with pigtails, or DIN cord), while 110H, 110P or 110D give three dry relays. Then choose no analog output or one isolated 4-20 mA output. Finally pick the sensor package.

For the WCTW, sensor options run from A (inline or submersion graphite contacting conductivity) and B (graphite with a panel-mounted flow-switch manifold), through C and D for high-pressure contacting conductivity, E and F for 316SS contacting conductivity and G and H for electrodeless conductivity. For the WBLW, options include a boiler sensor with or without automatic temperature compensation rated 250 psi with a 20 ft cable, a condensate sensor with a 0.1 cell constant rated 200 psi, and a 10-constant boiler sensor for up to 100 mS/cm.

Applications and what to confirm before ordering

The W100W suits tower blowdown, boiler blowdown and condensate-return monitoring where a graphic display and three relays cover the control logic. For systems that also need pH, ORP or disinfection control, look at the Intuition-6 or Intuition-9, whose universal inputs and larger relay counts are described in the brochures.

Confirm the process pressure and temperature against the sensor ratings, the cable length, whether the controller should drive pumps directly (powered relays) or switch external starters (dry contacts), the plug standard, and whether the 4-20 mA record output is wanted. The brochure also lists accessories such as flow-switch manifolds, so state if a panel-mounted manifold is part of the scope.

How the Walchem W100W works

A conductivity sensor in the water sends its signal to the controller. The controller compares the reading with the set point and switches a relay. The relay opens a bleed valve or starts a chemical feed pump, so the water stays within the range you set.

Where the W100W is used

Cooling towers
Boilers
Condensate systems
Water-treatment programmes
Biocide feed control

Selection checklist for the W100W

Cooling tower or boiler model
Conductivity range
Sensor type
Relay type
Analog output need
Flowmeter input
Supply voltage
Mounting location

Installation, commissioning and maintenance notes for the W100W

Mount the controller on a flat surface away from heat and vibration. Install the sensor in a flowing sample line. Wire the relays to the bleed valve and the feed pumps. Enter the set points and check each output. Clean the sensor at regular intervals.

Requesting a quotation for the Walchem W100W

Please send the application, the conductivity range, the sensor type and the relay needs. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

W100W controller type

It is a conductivity controller.

W100W maker

It is made by Walchem.

W100W models

The WCTW is the cooling tower model and the WBLW is the boiler model.

W100W display

It has a graphic backlit display.

W100W programming

Icon-based programming makes set-up simple.

W100W sensor input

The universal sensor input works with different conductivity sensors.

W100W third relay

The third control relay lets it serve more duties than other entry-level controllers.

W100W bleed control

A relay can bleed on conductivity or in proportion to makeup-water volume.

W100W boiler blowdown

A relay can blow down a boiler on conductivity with intermittent sampling.

W100W feed control

A relay can feed in proportion to bleed time, to makeup volume or as a percentage of elapsed time.

W100W biocide timer

A relay can run a biocide timer with pre-bleed and post-feed bleed lockout.

W100W supply

The supply is 100 to 240 V AC at 50 or 60 Hz.

W100W contacting ranges

Contacting conductivity ranges reach 3,000, 30,000 and 300,000 microSiemens per cm.

W100W electrodeless ranges

Electrodeless ranges reach up to 2,000,000 microSiemens per cm.

W100W temperature input

The temperature input covers minus 5 to plus 260 degrees C.

W100W digital inputs

Two digital inputs accept an interlock, a contacting flowmeter or a paddlewheel flowmeter.

W100W relay outputs

Three relays are fitted, either powered or dry-contact by model code.

W100W relay rating

Each relay is rated 6 A resistive.

W100W analog output

An optional isolated 4-20 mA output is available.

W100W enclosure

The enclosure is made of polycarbonate.

W100W ambient range

The operating ambient range is minus 20 to plus 55 degrees C.

W100W dimensions

The size is 203 x 206 x 83 mm.

W100W boiler sensor

The boiler and condensate contacting sensor is built in 316 stainless steel and PEEK.

Controller records for the W100W

Record the set points, the relay assignments and the sensor cleaning dates.

Choosing the right W100W model

Choose the cooling tower or boiler model from the water system you control.

Documents and quotation

The W100W brochure is attached. Related controllers are listed under Liquid Analytical Systems, and a conductivity transmitter alternative is the GESTRA LRGT 16-1 conductivity transmitter. Send the full model code and quantity through the RFQ form.
