Brand: TP-Link

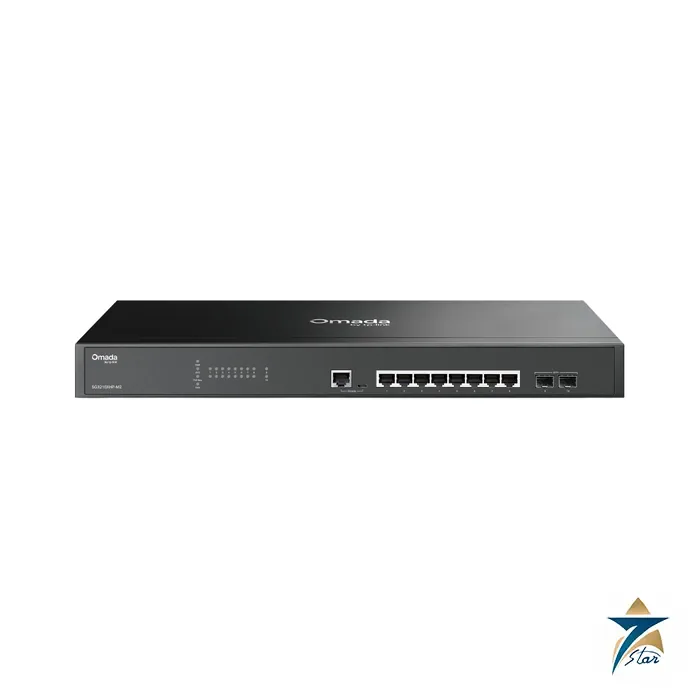

TP-Link SG3210XHP-M2 Omada 2.5G PoE+ Switch
Description
A compact 2.5G PoE+ switch for Wi-Fi 6 and Wi-Fi 7 access points
The SG3210XHP-M2 is an Omada Access Pro switch with eight 2.5 Gbps PoE+ RJ45 ports and two 10 Gbps SFP+ slots. The datasheet gives 80 Gbps switching capacity, 59.52 Mpps forwarding and a 240 W PoE budget with up to 30 W per port.
The 2.5G ports remove the gigabit bottleneck for access points whose radios exceed 1 Gbps, while the SFP+ slots provide 10G uplinks. The case is only 440 x 180 x 44 mm deep, rack mountable and quiet: with a PoE load under 210 W at 25 degrees C the switch is fanless.
Technical specifications
Specification rows for SG3210XHP-M2, reproduced from the attached TP-Link datasheet.
| Parameter | Specification |
|---|---|
| Interface | |
| Ports | 8 x 2.5 Gbps PoE+ RJ45 and 2 x 10 Gbps SFP+ slots (only one 10G RJ45 SFP+ module SM5310-T can be inserted at a time) |
| Console ports | 1 RJ45 console, 1 Micro-USB console |
| Memory (flash, DRAM) | 32 MB / 256 MB |
| PoE | |
| PoE support | 802.3af/at with perpetual PoE and fast PoE |
| PoE ports and rating | 8, up to 30 W per port |
| PoE budget | 240 W |
| PoE extend mode | Yes |
| Performance | |
| Backplane switching rate | 80 Gbps |
| Packet rate | 59.52 Mpps |
| Address table | 16K |
| Packet memory | 12 Mbit |
| IP interfaces, static routes | 32 / 48 (IPv4, IPv6) |
| Jumbo packet size | 9 KB |
| Power | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Maximum consumption | 284.3 W (110 V) and 276.9 W (220 V) at 25 C with 240 W PD connected |
| Standby consumption | 20.0 W max (110 V) / 19.3 W max (220 V) |
| Maximum heat dissipation | 966.76 BTU/hr (110 V) / 941.56 BTU/hr (220 V) |
| Physical | |
| Noise | Max 29.7 dBA at 1 m (100% load, 45 C); 21.4 dBA at 25 C; typical 13.7 dBA at 192 W PoE load; fanless below 210 W PoE load at 25 C |
| Number of fans | 2 |
| Surge / ESD | Service port 6 kV; ESD air 15 kV, contact 8 kV |
| MTBF | 200,231 h at 25 C |
| Size (W x D x H) | 440 x 180 x 44 mm |
| Net weight (kg) | 2.43 kg |
| Operating and storage temperature | -5 to 50 C / -40 to 70 C |
| Operating and storage humidity | 10-90% RH operating, 5-90% RH storage, non-condensing |
| Mounting | Rack mountable |
| Approvals printed | CE, FCC |
Reading the numbers: eight 2.5G ports plus two 10G SFP+ ports equal 40 Gbps per direction, or 80 Gbps counted both ways (derived), which matches the stated capacity. The 240 W PoE budget across eight ports gives 30 W per port, the 802.3at maximum, so every port can supply a high-power device at once. Total consumption at full load is 276.9 to 284.3 W, and with only 20 W on standby the switch is efficient when lightly loaded. Cabling must support 2.5GBASE-T to use the port speed.
2.5G ports, 10G uplinks and management features
- 8 x 2.5G PoE+ ports (802.3af/at, up to 30 W each) with perpetual PoE, fast PoE and PoE extend mode.
- 2 x 10G SFP+ slots; one 10G RJ45 module (SM5310-T) at a time may be fitted.
- ERPS ring protection, OAM and DDM; static routing with 48 routes and 32 IP interfaces.
- Standalone management by web, CLI, SNMP and RMON, or Omada controller and cloud management.
- 512 ARP entries, 16K MAC table, 12 Mbit buffer, dual image and dual configuration.
Ordering notes and transceiver options
The code is SG3210XHP-M2 (hardware 3.20, UN). Included: switch, power cord, console cable, rackmount kit, rubber feet and installation guide. For the uplinks the datasheet names 10G modules SM5110-LR (10 km single-mode), SM5110-SR (300 m multi-mode) and SM5110LSA-10 (10 km bi-directional), as well as the gigabit SFP types. A 2.5G link typically needs Cat5e or better cabling; check the access point model before ordering.
Cooling, noise and power details
Because the 240 W budget is shared, count the 2.5G access points at their real PoE class. The quiet profile (13.7 dBA typical at 192 W PoE load) suits rooms where people work, while the operating limit is 50 degrees C, so avoid enclosed cabinets. Note the SFP+ restriction on the 10G RJ45 module and use controller mode if you intend to push configuration to many switches at once.
Where multigig PoE helps
Use it where Wi-Fi 6 or Wi-Fi 7 access points, such as the EAP670 or EAP773 on this site, need multigigabit PoE, and in small server rooms with a 10G uplink. This is derived from the port speeds rather than a datasheet recommendation.
Information to send with an RFQ for the TP-Link SG3210XHP-M2 Omada 2.5G PoE+ Switch
Switch selection depends on how many devices connect, how they are powered and how the switch links back to the core. For the TP-Link SG3210XHP-M2 Omada 2.5G PoE+ Switch, list the number of copper and fibre ports you need, the PoE devices it will feed (cameras, access points, phones) and their individual power class, so the total PoE budget can be checked against the switch’s limit.
- Uplink speed and media: 1G, 2.5G or 10G, copper or SFP/SFP+, and the optic modules required.
- Management needs: VLANs, link aggregation, IGMP snooping, or central management from a controller.
- Rack space, airflow direction and power redundancy in the cabinet.
- Ambient temperature in the room or field cabinet, which matters in GCC summers.
A simple port map of the site is enough for the configuration to be checked before the order is confirmed.
Related items and documents
Compare with the SG2428P for gigabit PoE and see the EAP670 and EAP773 access points. Visit the industrial communications category.
Download the datasheet from this page. For SG3210XHP-M2 pricing, tell Seven Star LLC the number of units needed.
Frequently asked questions
How many 2.5G PoE+ ports does the SG3210XHP-M2 have?
Eight 2.5 Gbps PoE+ ports, each up to 30 W, from a 240 W PoE budget.
What uplinks are available?
Two 10 Gbps SFP+ slots.
Can both SFP+ slots hold 10G RJ45 modules?
No. The datasheet says only one 10G RJ45 SFP+ module (SM5310-T) can be inserted at a time.
Is it fanless?
It has two fans but runs fanless when the PoE load is below 210 W at 25 degrees C.
What is the switching capacity?
80 Gbps with a 59.52 Mpps forwarding rate.
Datasheets & Documents
- Datasheet TP-Link SG3210XHP-M2 (UN) 3.20 datasheet (PDF) Download
Reviews (0)
About brand
TP-Link is a global networking company founded in 1996 that makes routers, switches, wireless access points and related accessories. Its Omada line covers business networking: VPN gateways, PoE switches, Wi-Fi access points and controllers managed through the Omada SDN platform.
Seven Star LLC is an independent supplier in Muscat. We list TP-Link Omada products, each with the manufacturer datasheet, for offices, hotels, schools and retail sites in Oman and the GCC.
TP-Link product series

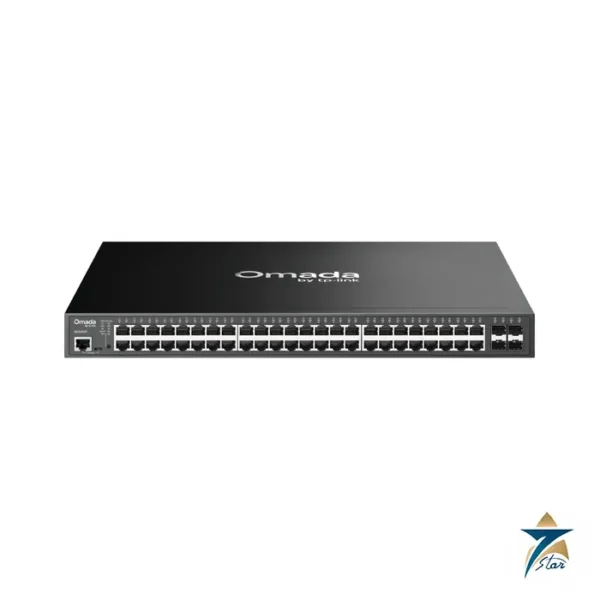

PoE switches include the SG2008P 8-port, SG2428P 24-port and SG3452P 48-port Gigabit PoE+ switches and the SG3210XHP-M2 with 2.5G PoE+ ports for Wi-Fi 6 and Wi-Fi 7 access points. VPN gateways include the ER605, ER7206 and ER8411 with 10G ports, for multi-WAN and site-to-site VPN.
