Brand: Swagelok

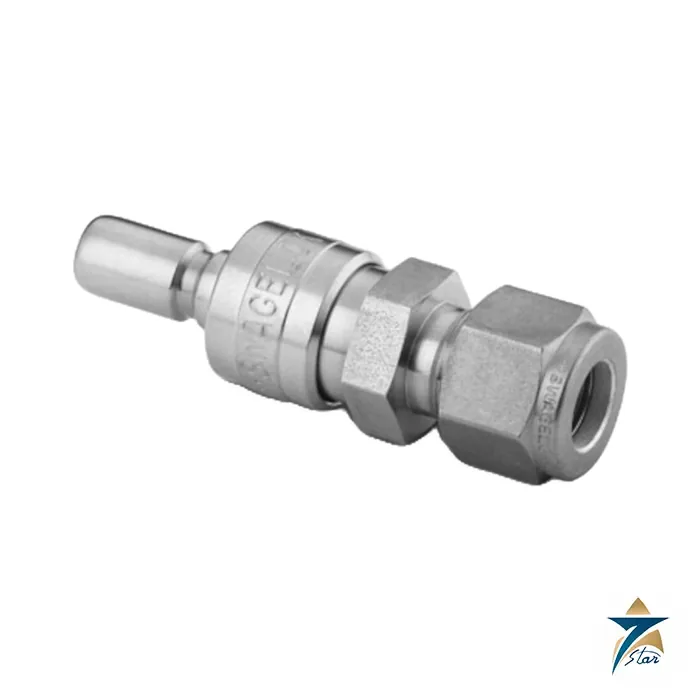

Swagelok SS-QC6-S-600 Quick-Connect Stem Without Valve
Description
The Swagelok SS-QC6-S-600 is a QC6 quick-connect stem without a valve: a single-end shutoff (SESO) stem. It stays open when it is uncoupled, which gives the highest flow of any QC6 stem and makes it suitable for vent lines, drains, low-pressure supplies and connections that are only parted when the line is empty or isolated. The inlet is a 3/8 in. Swagelok tube fitting, and the body is 316 stainless steel.
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | SS-QC6-S-600 |
| Description | Instrumentation quick-connect stem without valve (SESO), QC6 series |
| Body material | 316 stainless steel |
| Connection | 3/8 in. Swagelok tube fitting |
| O-ring | Fluorocarbon FKM; no lubricant on any components as supplied |
| Flow coefficient Cv | 1.0 with standard or reverse-flow body; 1.5 with full-flow body |
| Coupled at 70 F | 1500 psig (103 bar) |
| Coupled at maximum temperature | 250 psig at 400 F (17.2 bar at 204 C) |
| Overall length A (SESO) | 2.52 in. (64.0 mm) |
| Hex flat F | 3/4 in. |
| Maximum water flow, QC6 | 6 US gal/min (22 L/min) at 70 F |
Open stem, high flow
With no valve in the stem, the flow path is not restricted. The catalog gives the QC6 SESO stem a Cv of 1.0 with a standard body and 1.5 with a full-flow body, twice the 0.5 of the double-end shutoff version. The stem is 2.52 in. long compared with 2.64 in. for the DESO stem SS-QC6-D-600. Because the stem remains open, the body valve is the only closure, so fluid pressure on the stem side leaves when the line is parted.
The catalog states plainly that single-end shutoff quick-connects must not be uncoupled under pressure. The stem side is open to atmosphere once uncoupled; if the stem is attached to a pressurised line, it will vent.
Pressure and temperature
The QC6 series in 316 stainless steel with FKM O-rings is rated 1500 psig (103 bar) coupled at room temperature, 1350 psig at 150 F, 1150 psig at 200 F, 970 psig at 250 F and 400 psig at 400 F. When uncoupled or while coupling and uncoupling, the maximum is 250 psig at 70 F. A brass series is also in the catalog with its own ratings. The data page lists this stem as supplied with no lubricant on any components, in contrast with the lubricated DESO stem.
The materials list notes that the SESO stem insert is 316 stainless steel in stainless valves and brass C26000 in brass valves; the stem sleeve is 316 stainless steel.
Selecting and ordering
Use SS-QC6-S-600 for utility or test connections where shutoff on the stem side is provided by a valve elsewhere, for example a hose fed from an isolated source. Where the stem side holds fluid that must stay in the line, use a DESO stem. The decoded number is SS, QC6, S (stem, SESO), 600 (3/8 in. tube-fitting). Pair it with a QC6 body, such as the male NPT body SS-QC6-B-6PM.
Order with the correct O-ring designator if the fluid is not compatible with FKM (EP for ethylene propylene, KR or KZ for perfluorocarbon).
Documents and quotation
This page links the official Swagelok quick-connects QC, QF, QM and QTM series catalog MS-01-138 (EN), which holds the ordering tables, ratings and materials behind the figures above. Seven Star LLC is an independent supplier in Muscat; for a quotation on SS-QC6-S-600, tell us the quantity and any option you need, such as handle, packing or special cleaning.
We recommend confirming the exact size, thread standard and material with the attached document before placing an order. Related items: product category.
Datasheets & Documents
- Catalog Swagelok quick-connects QC, QF, QM and QTM series catalog MS-01-138 (EN) Download
Reviews (0)
About brand
Swagelok is the American maker of tube fittings and small-bore valves, best known for its two-ferrule compression tube fitting. Fred A. Lennon and Cullen B. Crawford founded it in Cleveland, Ohio, in July 1947 as Crawford Fitting Company to make that fitting. Lennon bought the whole business and the patent in 1948, and the company has been based in Solon, Ohio, since the mid-1960s.
Seven Star LLC is an independent supplier in Muscat. We list Swagelok tube fittings, needle, ball, check, relief and metering valves, filters, regulators and sample cylinders, and supply them for instrument tubing and analyser systems in Oman and the GCC by exact part number.
Swagelok company profile
| Established | July 1947, Cleveland, Ohio, as Crawford Fitting Company |
|---|---|
| Founders | Fred A. Lennon and Cullen B. Crawford; Lennon bought out Crawford in 1948 |
| Headquarters | Solon, Ohio, since the mid-1960s |
| Product families | Tube fittings and adapters, face seal fittings, needle, ball, plug, check, relief and diaphragm valves, filters, regulators, quick-connects, sample cylinders and hoses |
Milestones
- 1947: Fred A. Lennon and Cullen B. Crawford found Crawford Fitting Company in Cleveland in July.
- 1948: Lennon buys out Crawford.
- Mid-1960s: Headquarters move to Solon, Ohio.
Swagelok products we list
| Family | Models | Typical use |
|---|---|---|
| Tube fittings | Overview, SS-810-6 union, SS-810-3 tee, SS-810-9 elbow, SS-810-4 cross, SS-810-1-8 male connector, SS-810-7-8 female connector, SS-810-61 bulkhead, SS-12M0-6 metric union, VCR face seal | Leak-tight connections on instrument and process tubing |
| Needle and metering valves | SS-1RS4, SS-1RF4, SS-18RF6, SS-6NBS6, SS-20VS4, SS-4MG | Isolation and fine flow adjustment on instrument lines and sample systems |
| Ball and plug valves | 40G, 40GX 3-way, 60 Series, 83 Series, P4T plug | Quick quarter-turn shut-off and switching |
| Check, relief and sealed valves | SS-4C-1, CH, R3A, RL3, SS-4BK bellows, SS-DLS4 diaphragm | Backflow prevention, overpressure relief and leak-free sealing for toxic or high-purity media |
| Filters, regulators, sampling | SS-4F-2, SS-4TF-7, KPR regulator, sample cylinders, QC quick-connects | Analyser sample conditioning and gas or liquid sampling |
A Swagelok part number can be read directly. In SS-810-6, "SS" is 316 stainless steel, "810" means a 1/2 in. tube fitting (8 sixteenths of an inch, 10 series), and "-6" is a union. A suffix such as "-8" adds a 1/2 in. NPT end, and "M0" marks metric tube, as in SS-12M0-6 for 12 mm. Tube fittings must be made up the same way every time: finger-tight, then 1 1/4 turns for most sizes. A gap inspection gauge confirms the fitting has been pulled up.
Where Swagelok products are used
In Oman and the GCC, Swagelok fittings and valves are used on instrument impulse lines, analyser sample systems, hydraulic and pneumatic control tubing, chemical injection and gas sampling in oil and gas, refining, petrochemical, power and laboratory installations.
Ordering Swagelok products: what we need
Send the full Swagelok part number (for example SS-810-6 or SS-1RS4), the material, and the tube size in inches or millimetres. For valves, add the end connections and any options. For sample cylinders, add the volume, pressure rating and end configuration.
Facts checked against Swagelok company history, October 2026.
Browse Swagelok products by category: Pipes & Fittings, Regulators, Fittings & Valves.
Related products
Frequently Asked Questions
What is an SESO stem?
A single-end shutoff stem has no valve. It remains open when uncoupled.
How does it differ from SS-QC6-D-600?
SS-QC6-D-600 has a valve and shuts when uncoupled; SS-QC6-S-600 has no valve and has a Cv of 1.0 instead of 0.5.
Can it be uncoupled under pressure?
No. The catalog states that single-end shutoff quick-connects must not be uncoupled under pressure.
What is the pressure rating coupled?
1500 psig (103 bar) at room temperature for 316 stainless steel with FKM O-rings.
Which bodies mate with it?
Any QC6 series body, in standard, reverse-flow or full-flow forms.
