Brand: RKI

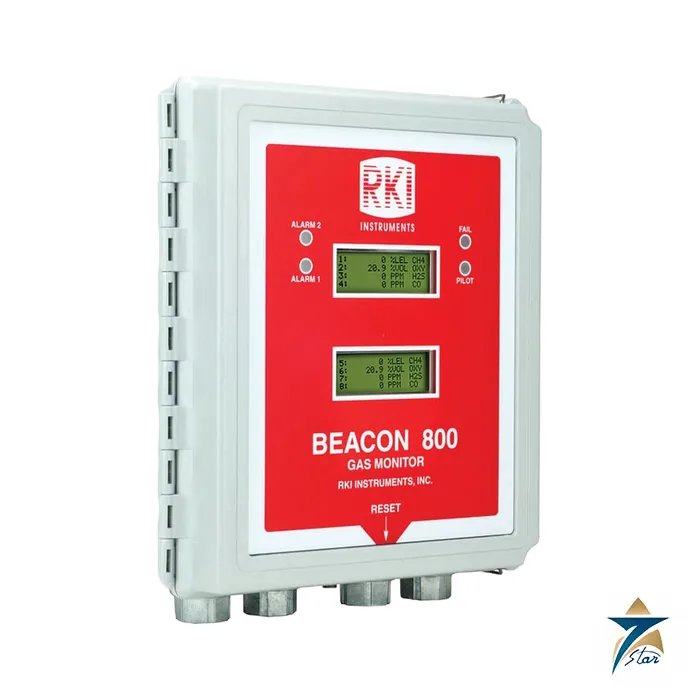

RKI Beacon 800 Eight-Channel Gas Detection Controller
Description
An eight-channel 4-20 mA gas controller in a NEMA 4X case
The RKI Beacon 800 is a low-cost, microprocessor-controlled fixed-system controller for one to eight gas-detection points. It accepts up to eight separate 4-20 mA transmitters, two- or three-wire, and two backlit alphanumeric displays show the gas type and concentration of all eight channels at once. It is powered from 24 VDC or 85 to 264 VAC, and comes with a wall-mount installation kit.
Technical specifications
| Parameter | Specification |
|---|---|
| Channels | 1 to 8, each a 4-20 mA transmitter (24 VDC, 2 or 3 wire); wiring distances up to 8,000 ft |
| Display | Two alphanumeric displays with backlight, 16 characters per line, 4 lines each; all 8 channels shown continuously |
| Alarms | Two programmable alarm levels per channel; built-in 94 dB audible alarm (pulsing = gas alarm, steady = fail) with external reset switch; 4 front LEDs for alarm, pilot and malfunction |
| Relays | 2 relays per channel, 3 A SPDT isolated contacts; common set of 2 gas-alarm relays and 1 malfunction relay; programmable increasing or decreasing, latching or self-reset, normally energized or de-energized, on and off delays |
| Auxiliary output | 24 VDC provided to operate sample-drawing adapters |
| Optional expansion cards | Individual 4-20 mA (or 1-5 VDC) outputs; heavy-duty relay card, 4 relays at 30 A |
| Power | 85 to 264 VAC or 24 VDC |
| Enclosure | Grey fibreglass wall-mount case with hinged cover, NEMA 4X; four 3/4 in NPT conduit hubs; screw terminals to 14 gauge |
| Dimensions | 12.5 x 11.0 x 6.4 in (318 x 279 x 163 mm) |
| Operating environment | -4 to 122 F (-10 to 50 C); storage -4 to 158 F (-20 to 70 C); 0 to 80% RH |
| Approvals | CSA certified to CSA C22.2 No. 1010 and ANSI/ISA S82.01 |
| Warranty | One year, materials and workmanship |
Where it fits in the Beacon range
RKI offers the Beacon 110 (one channel), 200 (two), 410A (four), 800 (eight) and 3200 (32 channels, colour touchscreen, direct-connect sensors and Modbus TCP/IP). The Beacon 800 suits small and mid-size plants where every sensor is a 4-20 mA transmitter and the 3 A relays can drive horns, buzzers or beacons directly without external relays. RKI lists petrochemical plants, refineries, water and wastewater plants, pulp and paper mills, utilities, parking garages, manufacturing, steel, automotive and HVAC applications.
The Beacon 800 datasheet lists no hazardous-area rating for the controller itself, so confirm the mounting location with the supplier; transmitters in classified zones need their own approvals, for example the RKI M2A-XL or T3A. Confirm the transmitter signal type, relay load and supply voltage before ordering.
Documents and quotation
The attached file is the two-page RKI Beacon 800 datasheet. For a larger system see the
and gas and fire controllers. Send channel count, transmitter types and relay duties for a quotation.
Datasheets & Documents
- Datasheet RKI Beacon 800 8-channel controller datasheet (2 pp) Download
Reviews (0)
About brand
RKI Instruments is an American maker of portable and fixed gas detection equipment, established in 1994 and based in Union City, California. It designs its own instruments and accessories around sensors from its Japanese partner Riken Keiki, and it is the exclusive North American supplier of Riken Keiki products. RKI detectors are used for combustible gases, oxygen, toxic gases and VOCs in oil and gas, wastewater, utilities and confined spaces.
Seven Star LLC is an independent supplier in Muscat. We list RKI gas detection equipment for oil and gas, utilities and industrial safety in Oman and the GCC.
RKI company profile
| Founded | 1994, USA |
|---|---|
| Headquarters | Union City, California |
| Partner | Riken Keiki Co., Ltd., Japan (sensor technology) |
| Role | Exclusive North American supplier of Riken Keiki products |
| Product families | GX-3R and GX-3R Pro personal monitors, GX-2009 and GX-6000 multi-gas detectors, Eagle 2 sample-draw detectors, single-gas monitors, fixed detector heads and Beacon gas monitoring controllers |
RKI product series
Portable monitors include the GX-3R Pro five-gas personal monitor, the GX-Force sample-draw four-gas monitor and the GX-6100 six-gas sample-draw detector with PID for VOCs.
Fixed systems include the M2A-XL explosion-proof stand-alone transmitter, the T3A three-wire explosion-proof transmitter and the Beacon 800 eight-channel and Beacon 3200 32-channel gas detection controllers.
Personal monitors protect individual workers, sample-draw monitors check confined spaces before entry, and fixed transmitters with controllers provide continuous monitoring with alarms and relay outputs. Sensors are chosen for each gas, such as catalytic or infrared for combustibles and electrochemical for toxic gases.
Where RKI equipment is used
Confined space entry, personal protection of operators, leak detection, and fixed monitoring of combustible and toxic gases in plants, pump stations and wastewater facilities.
RKI products we list
Ordering RKI equipment: what we need
Send the model, the gases and ranges, the hazardous-area class, power supply and outputs, and calibration gas and accessories needed.
Facts checked against RKI Instruments' company profile and product catalogue, October 2026.
Browse RKI products by category: Fire & Gas Detectors, Logic Controllers.
Related products
Frequently Asked Questions
How many channels does the Beacon 800 handle?
Up to eight 4-20 mA transmitter channels, all displayed at once.
What power supplies are supported?
85 to 264 VAC or 24 VDC.
What relays are fitted?
Two 3 A SPDT relays per channel plus common gas-alarm and malfunction relays.
How loud is the built-in alarm?
94 dB; pulsing means gas alarm and steady means fail.
What approval does the controller carry?
The datasheet lists CSA certification to CSA C22.2 No. 1010 and ANSI/ISA S82.01.
