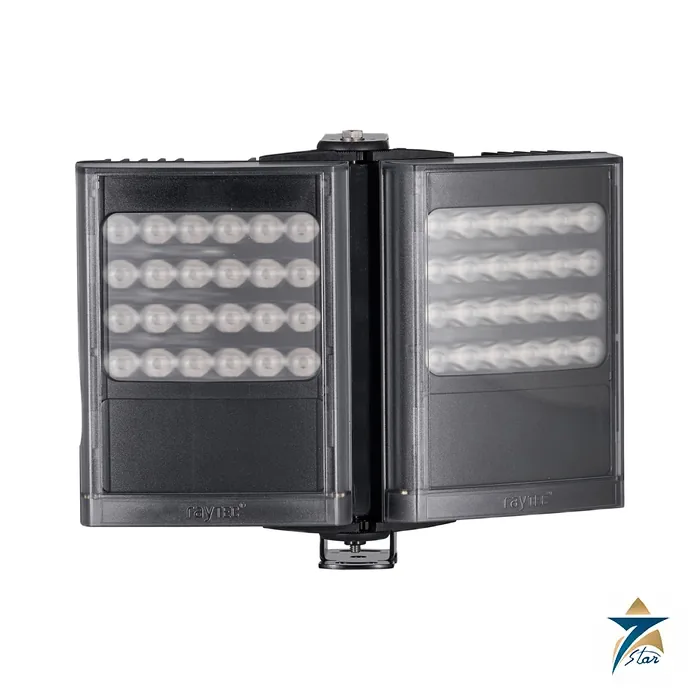

Raytec PSTR-i48-HV PULSESTAR i48 Pulsed IR Illuminator

PSTR-i48-HV is the Raytec PULSESTAR PSTR i48 pulsed infra-red illuminator for ANPR and LPR cameras: 48 LEDs at 850 nm, 500 W pulsed lighting drive power, an included 100 to 230 V AC power supply and Ethernet control.

Pulsed illumination with an external pulse-controller power supply

The PULSESTAR PSTR range delivers pulsed infra-red light for capturing number plates on fast-moving vehicles. The datasheet describes up to 980 W of pulsed illumination for the largest model; the i48 produces 500 W of lighting drive power while consuming 25 W on average. Pulsing delivers the highest light on scene while extending LED life and saving energy.

Unlike the single-housing VTS range, PSTR illuminators are fed from an external power supply supplied with the illuminator. Each LED panel can be controlled individually through dedicated channels from the PSU, which suits multi-lane or mobile installations, and a TTL trigger input synchronises pulses with the camera shutter.

Key features as printed in the datasheet

• VARIO interchangeable lens system with 10 x 10, 20 x 10 and 35 x 10 degree lenses in the standard pack.
• Hot-spot Reduction Technology gives an elliptical, diffused beam.
• Ethernet-based communication for set-up and operation of pulse timing, height and width.
• 5 year warranty and 10 year-plus expected life as printed by Raytec.

Technical specification

Illuminator data (i48 column)

Mechanical and PSU

Distance by lens angle (HV code)

HV or LV, and which size

The suffix selects the supply: HV is 100 to 230 V AC with the external PSU included, while PSTR-i48-LV is the 24 V DC version listed in the same datasheet. Sizes run i24, i32, i48, i72 and i96 (260 W to 980 W pulsed); distances for the i48 sit between the i32 (30-35 m at 10 x 10) and the i72 (43-50 m).

Distances are listed as ranges because they depend on the camera and set-up. A 940 nm option and other beam angles are available on request. Confirm camera sync wiring and the lens before ordering.

Installation notes

The i48 weighs 4.5 kg and has an adaptive illumination bracket for mounting; the external PSU is a separate box of 181 x 287 x 107 mm that needs its own mounting space. Raytec publishes an installation guide (1140-D-00011), an engineering guide (1140-D-00007) and a camera connectivity guide for the PULSESTAR range.

The trigger input is TTL (3.3 to 24 V DC), so the camera strobe output must be compatible. The unit also provides a 12 V DC, 1 A output. Operating range is -20 to +45 °C, which needs consideration for exposed Gulf sites in summer.

Applications in Oman and the GCC

PSTR illuminators are used for ANPR on roads and tunnels, toll and parking lanes, weighbridges, port gates and checkpoint lanes. Individual panel control helps where several lanes share one gantry, and the wide 35 x 10 degree lens suits close-range entry lanes.

Selection and installation notes

A CCTV illuminator is selected from the camera, the distance and the width of the scene. Match the beam angle to the camera field of view, mount it close to the camera on a stable bracket, keep the lens clear of foliage and glass reflections, check the supply voltage under load and set the light level in the dark, not in daylight. Camera and illuminator should be aimed together at commissioning.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Compatible accessories and related items

Related items include the PULSESTAR VTS20 single-housing illuminator and the VARIO2 range for continuous IR. See the category page for other Raytec lighting.

Frequently asked questions

What does HV mean in the code?

The 100 to 230 V AC version with the external power supply included; LV is the 24 V DC version.

How much pulsed power does the i48 provide?

500 W lighting drive power with 25 W average consumption.

What trigger signal does it need?

A TTL input of 3.3 to 24 V DC.

Which angles are supplied?

10 x 10, 20 x 10 and 35 x 10 degrees in the standard pack.

Does Seven Star LLC act as a Raytec distributor?

No. Seven Star LLC is not a Raytec distributor; it is an independent Muscat-based supplier that quotes Raytec products on request.

Documents and quotation

The official Raytec datasheet for PSTR-i48-HV is hosted on this page for download. Seven Star LLC is an independent supplier in Muscat; send your quantity and delivery location through the quotation form and we will quote this item. Please confirm the exact order code, ratings and approvals against the document before ordering. More related products: product category.
