Debem Cubic 15 Compact Air-Operated Diaphragm Pump

A compact AODD pump for dosing and small-volume chemical transfer

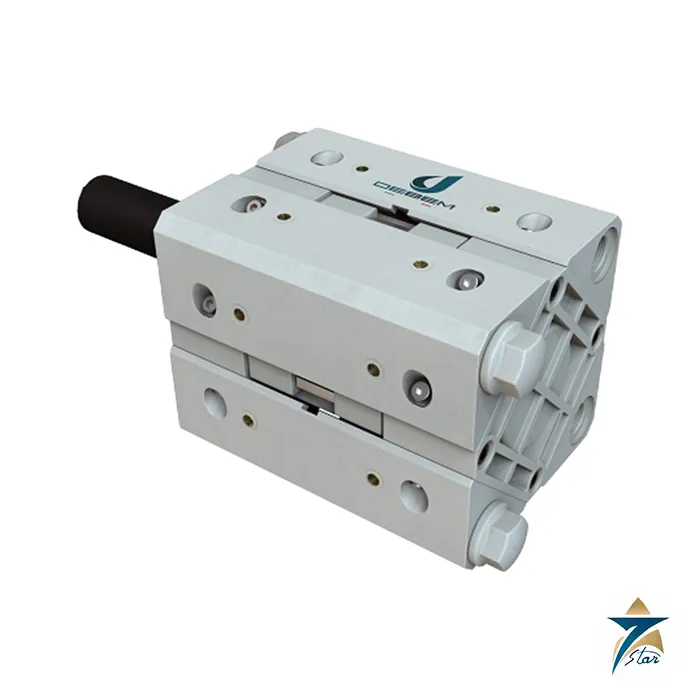

The Cubic 15 is Debem's compact cube-format air-operated diaphragm pump: a 3/8 inch pump of only 105 x 201 x 105 mm that weighs 1.35 kg in polypropylene and delivers up to 17 l/min. It belongs to the Cubic series, which also includes the smaller Midgetbox (1/4 inch, 6 l/min). Because it runs on compressed air alone, it suits places where a small, motor-free pump is needed; Debem's Cubic page shows chemical, galvanic, graphic, ceramic and water-treatment applications, and the pump moves low-viscosity liquids and fluids with fine suspended matter up to 0.5 mm.

Technical specifications

Reading the model code

The Cubic manual prints the configuration code on the nameplate. Cubic 15 is coded ICU15 and Midgetbox IMID, followed by letters for the pump body (polypropylene, PP with carbon fibre, PVDF), the air-side and fluid-side diaphragms, balls, ball seats, O-rings and manifold, and ends with version flags: C for CONDUCT, Y for NPT thread and Z for IECEx. The code matters more than the model name, because the same 3/8 inch pump with a PTFE diaphragm, PTFE balls and PVDF body behaves very differently from an NBR and polypropylene combination.

Installation and ATEX notes

Even a small pump must follow the manual: horizontal axis, rigid support, flexible hoses between pump and rigid pipe, a suction on-off valve and clean dried non-lubricated air from 2 to 8 bar. With only 0.5 mm solids passing, use a fine strainer. The Cubic manual states proposed use for liquids with apparent viscosity between 1 and 20,000 cps at 20°C, with negative suction limited to 5000 cps and 1.4 kg/l, and it requires the pump to be earthed in a hazardous area. The listed batch controller and stroke counter allow the pump to be used for counted, repeatable transfers, and a foot valve helps keep the suction line primed between cycles. For a steadier flow the datasheet lists an Equaflux 51 damper, and further accessories are a foot valve, air regulation kit W1000-8-G, batch controller and stroke counter. The Cubic follows the Boxer marking: II 3G Ex h IIB T4 Gc and II 3D Ex h IIIB T135°C Dc X as standard, with II 2G Ex h IIB T4 Gb and II 2D Ex h IIIB T135°C Db X for the CONDUCT version on request.

Documents and quotation

The Cubic 15 technical sheet holds the dimensions, materials and performance curves. Send fluid, temperature, viscosity, solids size, flow and head for a quotation, and view other pumps on the site or the Verder VA25 AODD pump for a larger metallic option.
