Brand: Dahua

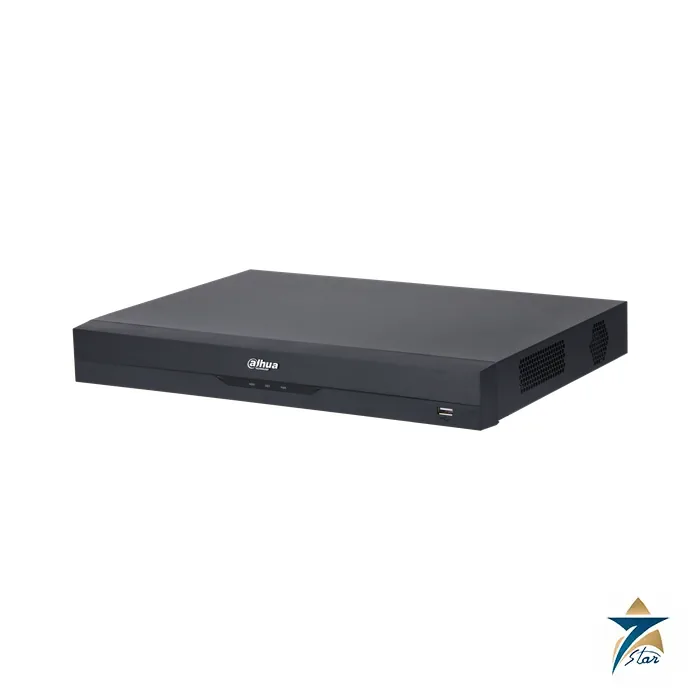

Dahua NVR5208-EI 8-Channel 2-HDD 1U WizSense Network Recorder
Description
NVR5208-EI is an 8-channel, 1U, two-bay network video recorder from the Dahua WizSense NVR5000-EI series. It accepts cameras up to 32 MP, records at up to 384 Mbps and carries its own AI chip for face detection and recognition, perimeter protection and SMD Plus, which means it can add analytics even to cameras that have none.
A compact recorder with analytics built in
AI by Recorder gives two channels of face detection and recognition (up to 20 face databases and 20,000 face images), four channels of perimeter protection with ten IVS rules each, and eight channels of SMD Plus that secondarily filters human and vehicle targets to cut false alarms from leaves, rain and lighting changes. With AI by Camera the recorder also handles metadata, ANPR, PPE detection, people counting and heat map data from compatible cameras, with AcuPick search on up to eight channels.
The unit is 375 mm wide, 284.4 mm deep and 56 mm high, weighs 1.57 kg and draws no more than 10 W without disks. It has one gigabit port, HDMI and VGA outputs, 4 alarm inputs and 2 alarm outputs.
Key features from the Dahua datasheet
- 8 channels; 384 Mbps incoming, recording and outgoing with AI disabled
- Decodes 8 x 8 MP at 30 fps or 32 x 1080p at 30 fps; cameras up to 32 MP
- 2 SATA bays, up to 20 TB each, N+M cluster and iSCSI
- AI by recorder: face, perimeter, SMD Plus; AI by camera: metadata, ANPR, PPE
- HDMI up to 7680 x 4320, VGA, EPTZ, one-click arming and disarming
Technical specification
System and AI
| Parameter | Specification |
|---|---|
| Platform | Industrial-grade processor |
| Operating system | Embedded Linux |
| User interface | Local GUI and web client |
| Access channels | 8 |
| Camera brands | ONVIF plus Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha |
| AI by recorder | Face detection and recognition; perimeter protection; SMD Plus |
| Perimeter protection | 4 channels, 10 IVS rules each |
| Face detection by recorder | 2 channels, up to 12 face images/s each |
| Face database | Up to 20 databases, 20,000 images, 2.5 G total |
| SMD Plus by recorder | 8 channels |
| AI by camera | Face, metadata, perimeter, SMD, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map, PPE, smart object and sound detection |
| Metadata by camera | 8 channels |
| Plate lists | Up to 20,000 plate numbers, blocklist and allowlist |
| AcuPick by camera | Up to 8 channels |
Video, recording and storage
| Parameter | Specification |
|---|---|
| Bandwidth, AI off | 384 Mbps incoming, 384 recording, 384 outgoing |
| Bandwidth, AI on | 200 Mbps incoming, 200 recording, 200 outgoing |
| Camera resolution | Up to 32 MP (32, 24, 16, 12, 8, 6, 5, 4, 3 MP, 1080p, 960p, 720p, D1, CIF, QCIF) |
| Decoding, AI off | 2 x 32 MP at 25 fps; 4 x 16 MP at 30 fps; 8 x 8 MP at 30 fps |
| Decoding, AI on | 1 x 32 MP at 25 fps; 2 x 16 MP at 30 fps; 6 x 8 MP at 30 fps; 8 x 5 MP at 30 fps |
| Compression | H.264, H.265, MJPEG, Smart H.264+ and Smart H.265+ |
| Audio compression | G.711a; G.711u; PCM; G.726 |
| Video output | 1 VGA (up to 1920 x 1080); 1 HDMI (up to 7680 x 4320) |
| Multi-screen | 1, 4, 8, 9 on main and sub screen |
| Playback | Up to 8 channels; instant, general, event, target, clip, tag and smart playback |
| Record mode | General; motion detection; intelligent; alarm; POS |
| Disks | 2 SATA ports, up to 20 TB each; disk group |
| Backup | USB drive and network |
Interfaces, power and environment
| Parameter | Specification |
|---|---|
| Network | 1 x RJ-45 10/100/1000 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, iSCSI |
| Interoperability | ONVIF 25.06 (Profile T, S, G, M); CGI; SDK |
| Audio | 1 RCA in; 1 RCA out |
| Alarm | 4 in; 2 out |
| Serial and USB | RS-232 x1; RS-485 x1; USB 2 (front USB 2.0, rear USB 3.0) |
| Power supply | 12 VDC, 4 A |
| Power consumption | Total output 10 W or less (without HDD) |
| Operating limits | -10 to +55 C; 10 to 93 percent RH, no condensation |
| Storage temperature | -20 to +60 C |
| Dimensions | 375.0 x 284.4 x 56.0 mm (W x D x H) |
| Weight | Net 1.57 kg; gross 2.73 kg |
| Certifications as printed | FCC Part 15 Subpart B Class A; CE-EMC (EN 55032, EN 55035, EN 50130-4); CE-LVD EN 62368-1 |
Selection and ordering guide
The datasheet ordering code is DHI-NVR5208-EI, described as Dahua 8CH 2HDD 1U Network Video Recorder. Disks are not stated as included, so confirm in the enquiry whether you need drives.
Check bandwidth before sizing: 384 Mbps applies with AI disabled, and the datasheet drops this to 200 Mbps with AI enabled. Add the camera bit rates (the lane cameras list up to 16384 kbps) to confirm the total.
Installation and operation notes
The NVR draws from a 12 VDC, 4 A supply and is a 1U unit; keep ventilation clear because the datasheet limits operation to -10 to +55 C. Dahua publishes a HDD installation guide, the Network Video Recorder user manual (V2.4.2) and a quick start guide on the product page. Disk capacity limits vary with environment temperature per the datasheet. Alarm box DHI-ARB1606 is listed as an optional extension.
Applications in Oman and the GCC
An 8-channel recorder suits a site office, a clinic, a small plant gate house, a retail unit or a camp reception. The operating limit of +55 C means it must sit in an air-conditioned room or cabinet in hot climates (derived advice). It records Dahua cameras and ONVIF third-party cameras listed in the datasheet.
Compatible accessories and related items
Datasheet accessories: DHI-ARB1606 alarm box and PFH101-DH920C1 (5 pieces per pack). Typical cameras to pair: IPC-HDW2649T-S-PRO and IPC-HDW3449QM-S-IL on this site. For a 32-channel RAID system see NVR5832RH-XI.
Frequently asked questions
How many channels does the NVR5208-EI record?
Eight IP channels, with up to 384 Mbps incoming, recording and outgoing bandwidth when AI is disabled.
How many hard disks fit?
Two SATA ports, each up to 20 TB according to the datasheet.
What is the maximum camera resolution?
Cameras up to 32 MP are supported.
Does it have AI functions?
Yes: AI by recorder covers face detection and recognition, perimeter protection and SMD Plus; AI by camera covers further analytics from compatible cameras.
Can Seven Star LLC quote this recorder?
Yes. We are an independent supplier in Muscat; send your quantity and disk requirement through the quotation form.
Documents and quotation
The official Dahua datasheet for NVR5208-EI is hosted on this page for download. Seven Star LLC is an independent supplier in Muscat; send your quantity and delivery location through the quotation form and we will quote this item. Please confirm the exact order code, ratings and approvals against the document before ordering. More related products: CCTV and security category.
