Brand: CEMP

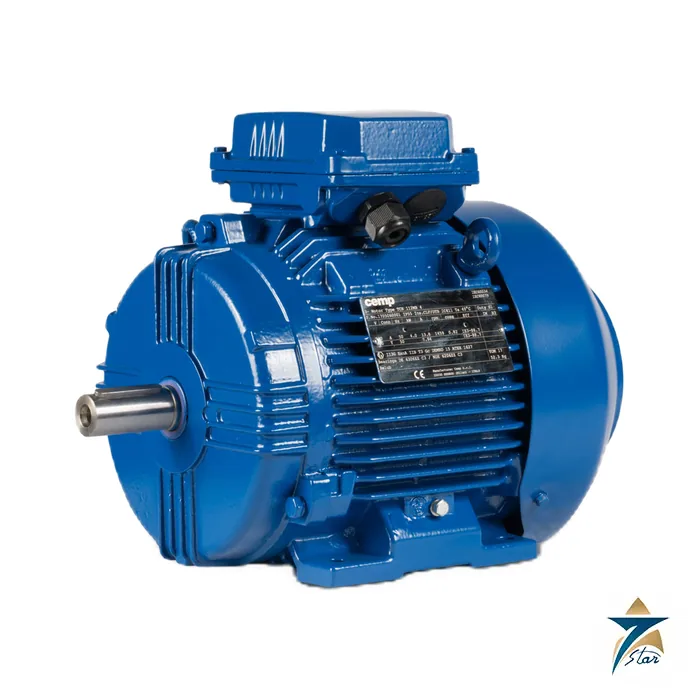

CEMP TerraMAX TC Series Motors TCN TCT TCE IE3 IE4
Description
TerraMAX TC series motors for zone 1, 2, 21 and 22 duty
The CEMP TerraMAX TC series motors are IE3 and IE4 efficiency, totally enclosed fan cooled motors built on the TerraMAX platform and manufactured at the CEMP plant in Senago, Milan. The TCI cast iron version is for general industry, and the TCN, TCT, TCT3, TCNT and TCE versions carry ATEX and IECEx markings for non-sparking, dust and increased safety duty. Frames run from IEC 80 to 355 and power from 0.75 to 375 kW (1 to 500 HP).
Technical specifications
| Parameter | Specification |
|---|---|
| Output | 0.75 kW to 375 kW (1 HP to 500 HP) |
| Poles / frame | 2 to 8 pole; IEC frame 80 to 355 |
| Supply | 200 V to 1,000 V, 50 or 60 Hz |
| Ambient temperature | -20 C to +40 C (up to -60 C / +80 C on request) |
| Construction | Cast iron with integrally cast feet; cast iron terminal box with captive screws and metric cable entry |
| Insulation | Class F with class B temperature rise; PTC thermistors included as standard |
| Protection | IP55 (up to IP66 on request) |
| Drive suitability | Variable torque duty, 10:1 |
| Connection | Frame 80-112 star; frame 132-355 delta |
| Bearings and fan | Shielded bearings for frames 80-180; bi-directional fan |
| Mounting | B3, B5, B35, V1; B14 and B34 for frames 80 to 132 |
| Paint | RAL 5010 standard |
| Efficiency certification | GMEE and EAC declaration available |
| Document | CEMP TC Series Brochure, Cod 50165002 Rev 00, May 2026 |
Series, protection and zone
| Series | Marking as printed | Zone | Certificates |
|---|---|---|---|
| TCN | II 3G Ex ec IIB/IIC T3 Gc | 2 | TUV IT 20 ATEX 103X; IECEx TPS 21.0012X |
| TCT | II 2D Ex tb IIIB/IIIC T150 C – 85 C Db | 21 | TUV IT 20 ATEX 078X; IECEx TPS 21.0012X |
| TCT3 | II 3D Ex tc IIIB/IIIC T150 C – 100 C Dc | 22 | TUV IT 20 ATEX 103X; IECEx TPS 21.0012X |
| TCNT | II 3G Ex ec IIB or IIC T3 Gc; II 3D Ex tc IIIB or IIIC T150 C – 100 C Dc | 2 + 22 | TUV IT 20 ATEX 103X; IECEx TPS 21.0012X |
| TCE | II 2G Ex eb IIC T3 Gb | 1 | DEMKO 18 ATEX 2068X; IECEx UL 17.0104X |
Performance data and selection
| Frame | kW | Speed rpm | Current A | Efficiency % | Weight kg |
|---|---|---|---|---|---|
| 80MB 4 | 0.75 | 1,428 | 1.70 | 82.9 | 22.5 |
| 90L 4 | 1.5 | 1,441 | 3.23 | 85.6 | 29.8 |
| 112MB 4 | 4 | 1,451 | 7.66 | 88.7 | 52.3 |
| 132M 4 | 7.5 | 1,462 | 14.4 | 90.4 | 88.7 |
| 160LA 4 | 15 | 1,472 | 27.8 | 92.1 | 170 |
| 200L 4 | 30 | 1,482 | 54.2 | 93.6 | 282 |
| 250M 4 | 55 | 1,488 | 97.7 | 94.6 | 517 |
| 315S 4 | 110 | 1,489 | 193.8 | 95.5 | 867 |
| 355M 4 | 250 | 1,491 | 428.2 | 96.0 | 1,692 |
The brochure gives full tables for 2, 4, 6 and 8 poles at 400 V, including torque, locked rotor ratios, noise level and moment of inertia.
Choose the series by the zone and gas or dust group: TCE for zone 1 gas with increased safety, TCN for zone 2, TCT for zone 21 dust and TCT3 for zone 22. Options listed include special voltages up to 1,000 V, Pt-100 and PTC sensors, anti-condensation heaters, tropicalized windings, forced ventilation IC416, encoders, SPM probe, double ended shafts, rain cap and vibration grade A or B. Confirm that the certificate covers the exact frame, voltage and temperature class ordered.
Documents and quotation
Send kW, poles, frame, voltage, frequency, mounting, zone, gas or dust group, ambient temperature and whether inverter duty applies.
The manufacturer document is attached to this page and listed below. Seven Star LLC is an independent supplier in Muscat and can quote against the model code, quantity and delivery location. Browse more instruments in Electric Motors, or see the CEMP brand page.
Datasheets & Documents
- Brochure CEMP TerraMAX TC series IE3/IE4 motors brochure (May 2026) Download
Reviews (0)
About brand
CEMP is an Italian manufacturer of flameproof and hazardous-area electric motors, founded in 1954 and based in Senago, Milan. One of the first companies in Italy to build explosion-proof motors, it has been part of the WEG group since 2024. Seven Star LLC supplies these motors in Oman on inquiry.
CEMP motor ranges
The programme listed here includes Ex db flameproof motors in IE3 and IE4 efficiency, flameproof brake motors, small aluminium frame 56 motors and TerraMAX TC series motors for dust, non-sparking and increased safety duty. Frame sizes reach 355 and ratings reach 375 kW, and the brochures list ATEX and IECEx marking for the hazardous zones covered by each series.
Ordering hazardous-area motors
Send the power, poles, voltage and frequency, frame, mounting, gas or dust group, temperature class, zone and ambient conditions, with any brake, encoder or inverter requirement. The brochures give reference values, so the certificate scope and performance data must be confirmed against the exact motor before an order is placed. CEMP also offers special motors to customer specification.
Related products
Frequently Asked Questions
What is the CEMP TerraMAX TC series?
IE3 and IE4 totally enclosed fan cooled motors from 0.75 to 375 kW, with ATEX and IECEx versions for non-sparking, dust and increased safety duty.
Which TC version is for zone 1?
TCE, marked II 2G Ex eb IIC T3 Gb.
Which versions cover dust areas?
TCT for zone 21 (Ex tb) and TCT3 for zone 22 (Ex tc), plus TCNT for zone 2 and 22.
What frame range is listed?
IEC 80 to 355 with 2 to 8 poles.
Where are the motors made?
The brochure states the complete range is manufactured in the CEMP plant in Senago, Milan, Italy.
