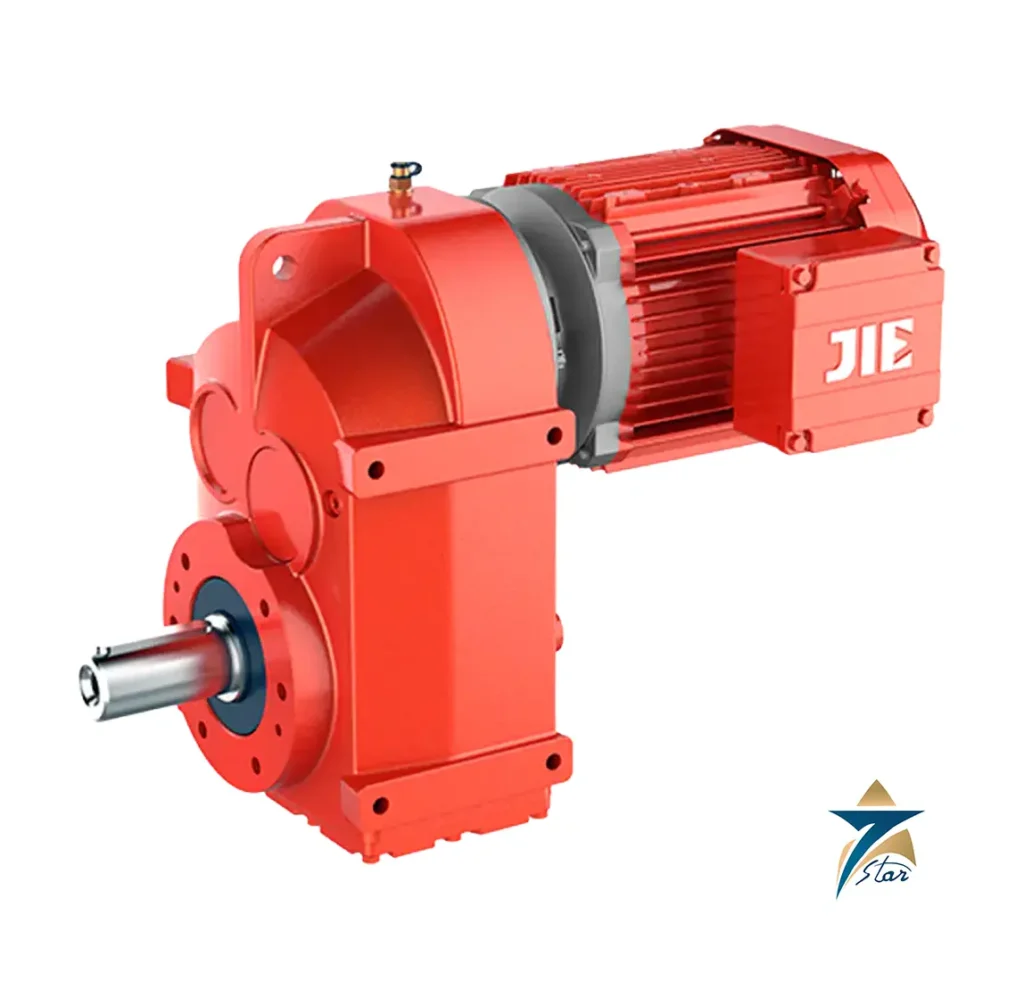

JIE JRT F Series Parallel Shaft Helical Gearmotor

Overview

The JIE JRT F Series Parallel Shaft Helical Gearmotor represents an advanced class of compact, high-efficiency power transmission systems designed specifically for space-constrained industrial environments. In modern manufacturing and bulk material handling, drive systems are often required to deliver massive torque without protruding into adjacent machinery spaces. The parallel shaft design elegantly solves this spatial challenge by aligning the electric motor parallel to the driven machine’s input shaft.

Seven Star LLC operates as a specialized technical supplier, commercial vendor, and professional B2B procurement consultant, distributing this robust industrial gearmotor series to heavy manufacturing complexes, logistics centers, and process plants across the Sultanate of Oman, Muscat, and the wider GCC region. Built on a highly versatile modular platform, the gearmotor supports dynamic integration with standard IEC, NEMA, and servo motor configurations, optimizing mechanical drive architectures for continuous, heavy-duty plant operations.

Operational Principle

The mechanical power transmission mechanism of the gearmotor relies on an integrated parallel axis helical gear train. Unlike right-angle worm or bevel gears, the parallel shaft design utilizes multiple helical gear stages aligned on parallel axes to step down rotational speed and magnify torque. When kinetic energy is introduced via the prime mover, the helical gears engage smoothly along an angled tooth profile.

This progressive sliding and rolling tooth contact dramatically minimizes mechanical vibration and acoustic emissions. Advanced crowning modifications applied during the manufacturing of the gear teeth compensate for elastic shaft deflection under extreme loads. As a result, the parallel axis configuration achieves an exceptional energy transmission efficiency of over 96% per stage, ensuring that virtually all motor power is successfully translated into usable output torque without localized thermal buildup or excessive mechanical wear.

Engineering Design of the JIE JRT F Series

The structural and metallurgical engineering design of the JIE JRT F Series is meticulously optimized to endure the harsh, high-temperature, and dust-laden environments of the Sohar and Salalah industrial sectors. The gear unit is housed within a rigid, UNICASE cast-iron enclosure (GG20 or GG25). This monolithic housing is engineered using Finite Element Analysis (FEA) to eliminate stress fracture points and provide superior vibration dampening under massive radial loads.

Internally, the gear set is forged from premium 20CrMnTi alloy steel. These gears undergo a rigorous gas carburizing and precision CNC grinding process, achieving an ultra-hard surface (58-62 HRC) with a highly resilient core. Furthermore, the modular architecture offers supreme output flexibility, featuring options for solid shafts, splined hollow shafts, and heavy-duty shrink disc lock assemblies, ensuring robust, backlash-free connections to direct-drive pulleys and mixing agitators.

Key Features

• Parallel-shaft offset drive layout with a low-profile housing, ideal for tight spatial constraints and compact machine designs.
• Exceptionally high mechanical efficiency exceeding 96%, significantly lowering electrical power consumption.
• Heavy-duty UNICASE cast-iron housing ensuring structural rigidity and maximum vibration dampening.
• Premium 20CrMnTi alloy steel gearing, carburized and precision-ground for supreme wear resistance.
• Versatile output options including solid shaft, hollow shaft with keyway, and keyless shrink disc designs.
• Advanced input modularity supporting IEC (AM), NEMA (AN), and servo motor (AQS) coupling interfaces.
• Double-lip synthetic radial oil seals (Nitrile/Viton) guaranteeing leak-free operation and blocking dust ingress.
• High-grade anti-corrosive industrial surface coating (RAL 7031 standard) resisting coastal salinity and humidity.

Industrial Applications

The compact footprint and high torque density of this parallel shaft helical gearmotor make it a vital component across continuous industrial manufacturing and material handling loops. In the automated logistics and packaging sectors of Oman, the drive units are utilized extensively on heavy-duty chain conveyors, automated guided vehicles (AGVs), and stacking cranes.

Cement processing plants and quarrying facilities across the GCC deploy these gear units to run long-distance belt conveyors, bucket elevators, and bulk material feeders. Sourced through the professional procurement network of Seven Star LLC, the gearmotors are also heavily integrated into the automotive manufacturing industry, powering stamping, painting, and assembly line conveyor systems where reliable, smooth, and high-efficiency speed reduction is critical to maintaining unyielding production schedules.

Ratio Range, Torque Capacity, and Drive Selection

JIE catalogues the JIE JRT F Series with single-unit reduction ratios from 3.77 to 281.71, which covers the great majority of conveyor, agitator, and feeder duties without resorting to a combined unit. Where a slower output is genuinely required — clarifier drives, long-dwell mixing, or low-speed bulk extraction — JIE offers combined multi-stage arrangements in which an F-series parallel-shaft gear unit is coupled to a second reduction stage, extending the achievable ratio well beyond the single-unit limit while retaining the same offset output geometry. Nominal output torque runs to 32,000 Nm at the top of the range, so the series can be applied from fractional-kilowatt packaging machinery up to heavy quarry and cement conveying drives.

Selecting correctly means starting from the driven machine rather than the motor. The required output torque and speed set the ratio and frame size; the duty profile — starts per hour, shock loading, daily running hours — sets the service factor that the selected unit must exceed; and the shaft loading imposed by sprockets, pulleys, or direct couplings sets the overhead and axial load limits that ultimately govern bearing life. Because a parallel-shaft unit is frequently torque-arm mounted directly on the driven shaft, the reaction arm geometry and the shrink disc or keyed hollow-shaft connection also need to be agreed at the selection stage rather than resolved on site.

Installation, Lubrication, and Service Life

Mounting position is not a cosmetic choice on a gear unit of this type. The oil fill quantity, the position of the breather, and the level and drain plug locations are all specific to the mounting orientation, and a unit installed in an orientation other than the one it was ordered for will be either over-filled, which causes churning losses and seal pressure, or under-filled, which starves the upper bearings. The JIE JRT F Series housing provides plug positions for each standard mounting orientation, and the orientation should therefore be declared on the purchase order.

In the ambient conditions typical of Sohar, Duqm, and Salalah, thermal rating rather than mechanical rating is often the limiting factor: a gearbox that is mechanically adequate can still exceed its permissible oil temperature when running continuously at 45 °C ambient in a dust-laden enclosure. Synthetic polyalphaolefin lubricants, adequate ventilation around the housing, and in extreme cases a fan or cooling coil are the usual remedies. Seven Star LLC reviews ambient temperature, duty cycle, and mounting orientation alongside torque and ratio when quoting, so the drive delivered to site is rated for the environment it will actually work in.

Technical Specifications

Request a Quote for JIE JRT F Series Parallel Shaft Helical Gearmotor

To submit a formal Request for Quote (RFQ), check current availability and lead time, or download complete mechanical CAD drawings for the JIE JRT F Series Parallel Shaft Helical Gearmotor, please contact the industrial power transmission division at Seven Star LLC today. Our technical application engineers in Oman are ready to assist with exact gear ratio calculations, mechanical torque matching, and rapid commercial sourcing across the GCC.
