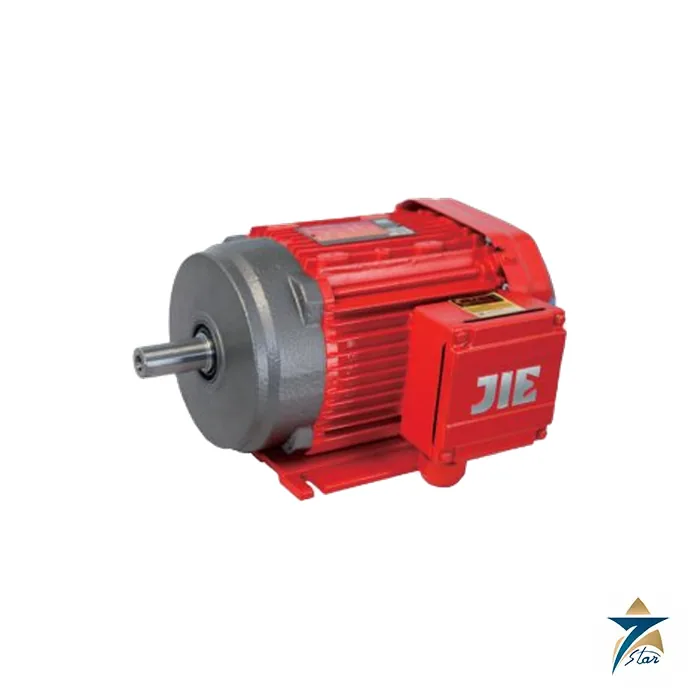

JIE JD Motor IE3 Three-Phase Asynchronous Motor

Overview

The JIE JD Motor is the three-phase asynchronous (induction) motor range designed and built by JIE Drive Technology, the same manufacturer behind the JRT gearmotor and JRH industrial gear unit families. JIE developed the JD series with its own intellectual property to give its drives a matched prime mover, and also sells it as a standalone IEC motor. The range covers frame sizes 63 to 315 and output from 0.12 kW to 200 kW, with energy efficiency classes IE2 and IE3 across 0.75 to 200 kW and IE4 available, which places the JIE JD Motor squarely in the general-purpose industrial motor market.

Seven Star LLC supplies the JIE JD Motor on request in Oman and across the GCC, with engineering support in Muscat. Motor orders depend on many small details: voltage and frequency, mounting form, terminal box position, protection degree and accessories. Our team collects these using JIE’s own selection sheet so the JIE JD Motor that arrives matches the pump, fan, conveyor or gear unit it has to drive.

Operating Principle

A three-phase asynchronous motor works by feeding the stator winding with three alternating currents displaced by 120 degrees. Together they create a magnetic field that rotates at synchronous speed, set by the supply frequency and the number of poles. That rotating field cuts the bars of the squirrel-cage rotor, induces currents in them, and the interaction between the induced rotor currents and the stator field produces torque. The rotor always runs slightly slower than the field; this slip is what keeps the induction process going, which is why the motor is called asynchronous.

The squirrel-cage design has no brushes, slip rings or commutator, so a JIE JD Motor needs very little maintenance beyond bearing care and keeping the cooling path clear. Efficiency class depends on how much of the input power is lost as heat in the copper, the iron and the bearings and fan. Moving from IE2 to IE3 or IE4 reduces those losses, which on a motor that runs all day in a hot plant room translates into lower electricity cost and lower winding temperature. JIE notes that JDN and JDU motors can be controlled by an inverter for variable speed duty.

Engineering Design of the JIE JD Motor

JIE describes the JIE JD Motor as low-noise and lightweight, with a modular construction. The series supports B3 foot mounting, B5 flange mounting with clearance holes, B14 flange mounting with threaded holes and B35 combined foot and flange mounting. The modular kit allows the JIE JD Motor to be combined with an independent forced-cooling fan, a brake, a backstop, an encoder or an inverter. Standard paint is RAL 7031, with other colours and anti-corrosion grades available on order. The catalogue lists supply voltages from 110 V to 690 V and frequencies of 50 Hz, 60 Hz and 87 Hz.

Protection and monitoring accessories are coded on the type key. They include TF thermistor protection, TH bimetal thermostat protection, PT100 temperature sensors, HTL and RS422 incremental encoders, a protection cowl (C), condensation drain holes (DH), reinforced insulation (RI), anti-condensation heating (STH), an additional flywheel (Z), a forced cooling fan (V) and a rear shaft extension (2WE). Standard cooling is IC411 totally enclosed fan cooled, with IC410 and IC416 as alternatives; duty types S1, S3-40% and S3-75% can be specified, and brakes are offered for 24 V DC, 220 V AC or 380 V AC with handle or screw manual release. Nameplate ratings follow IEC 60034 for ambient temperatures up to 40°C and altitudes up to 1,000 m.

Key Features

The points below summarise the JIE JD Motor as presented in the JIE product page and JD motor catalogue.

• Frame sizes 63 to 315 cover outputs from 0.12 kW to 200 kW in a single, consistent family.
• IE2 and IE3 efficiency are available from 0.75 kW to 200 kW, and IE4 can be selected on the order sheet.
• Voltages from 110 V to 690 V at 50 Hz, 60 Hz or 87 Hz suit both local grids and inverter-fed operation.
• IP55 or IP56 enclosure protection and class F or H insulation can be chosen to suit the site.
• B3, B5, B14 and B35 mounting forms follow IEC conventions for easy interchange with existing motors.
• Brake, backstop, encoder, forced fan and inverter modules can be added without changing the base motor.
• Thermal protection by thermistor, thermostat or PT100 supports safe operation in high ambient temperatures.
• Anti-condensation heaters and drain holes help motors that stand idle in humid coastal locations.

Industrial Applications

JIE lists warehousing logistics, packaging machinery, glass machinery and machine tools among the target markets for the JD range, and the JIE JD Motor is also the prime mover used across JIE’s own gearmotors. In Oman and the GCC a JIE JD Motor fits the everyday drives found in almost every facility: centrifugal pumps in water networks and district cooling plants, fans and blowers in HVAC and process ventilation, compressors, mixers, conveyors and crushers. The IEC frame dimensions make it straightforward to replace a failed motor of another make on an existing baseplate or flange.

Coastal and desert conditions are hard on motors, with heat, dust and salt-laden humidity all present. Specifying IP56, class H insulation, anti-condensation heating and a suitable anti-corrosion paint grade helps a JIE JD Motor cope with sites in Sohar, Muscat, Duqm and Salalah. Seven Star LLC supports these choices as a trusted supplier with engineering support in Muscat, and can supply complete drive packages that combine the motor with a JIE JRT R series inline gearmotor or a JIE JRT K series bevel gearmotor.

Technical Specifications

The JIE JD Motor data below is compiled from the JIE product page and the JD motor catalogue; confirm the final rating from the nameplate of the ordered unit.

How to Order
